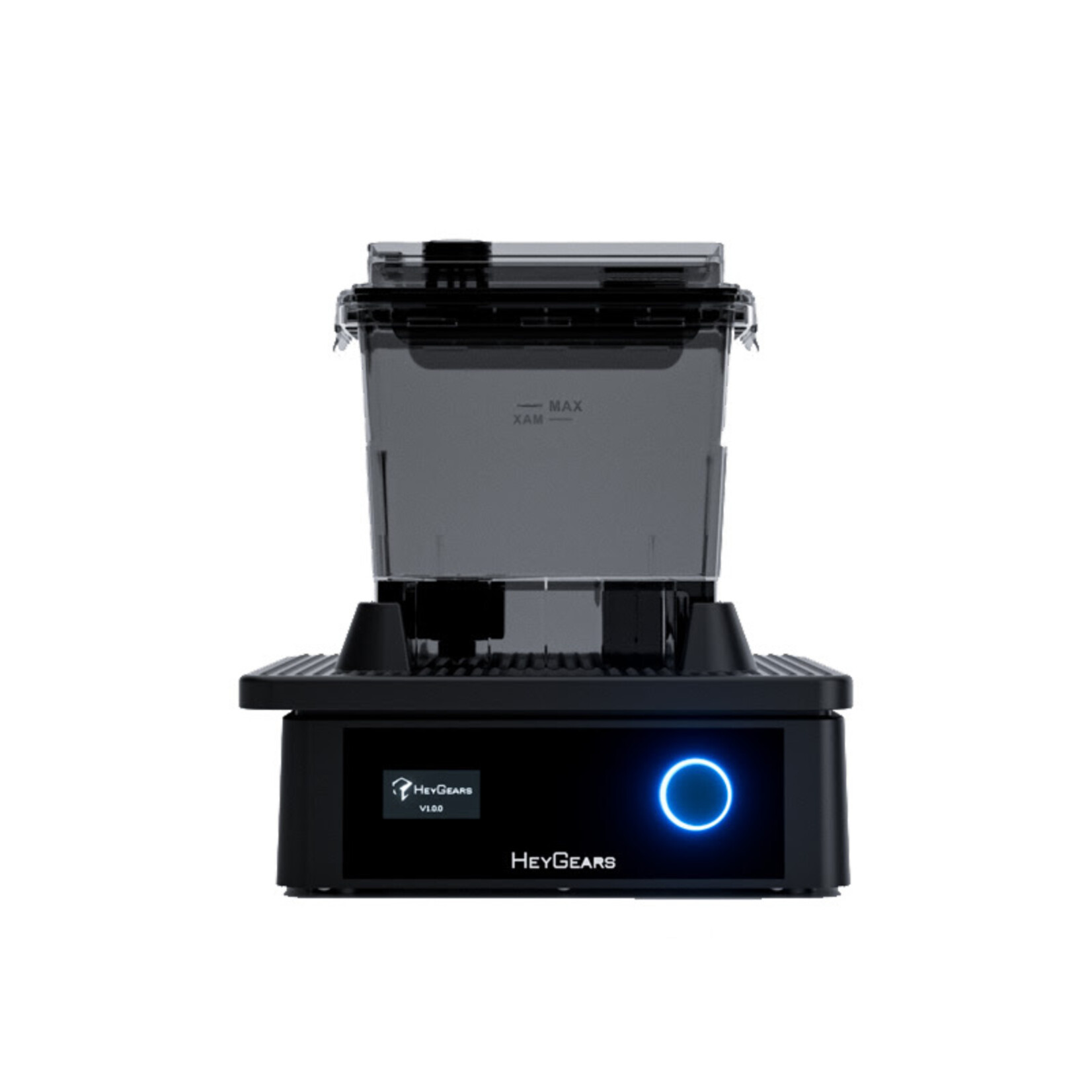

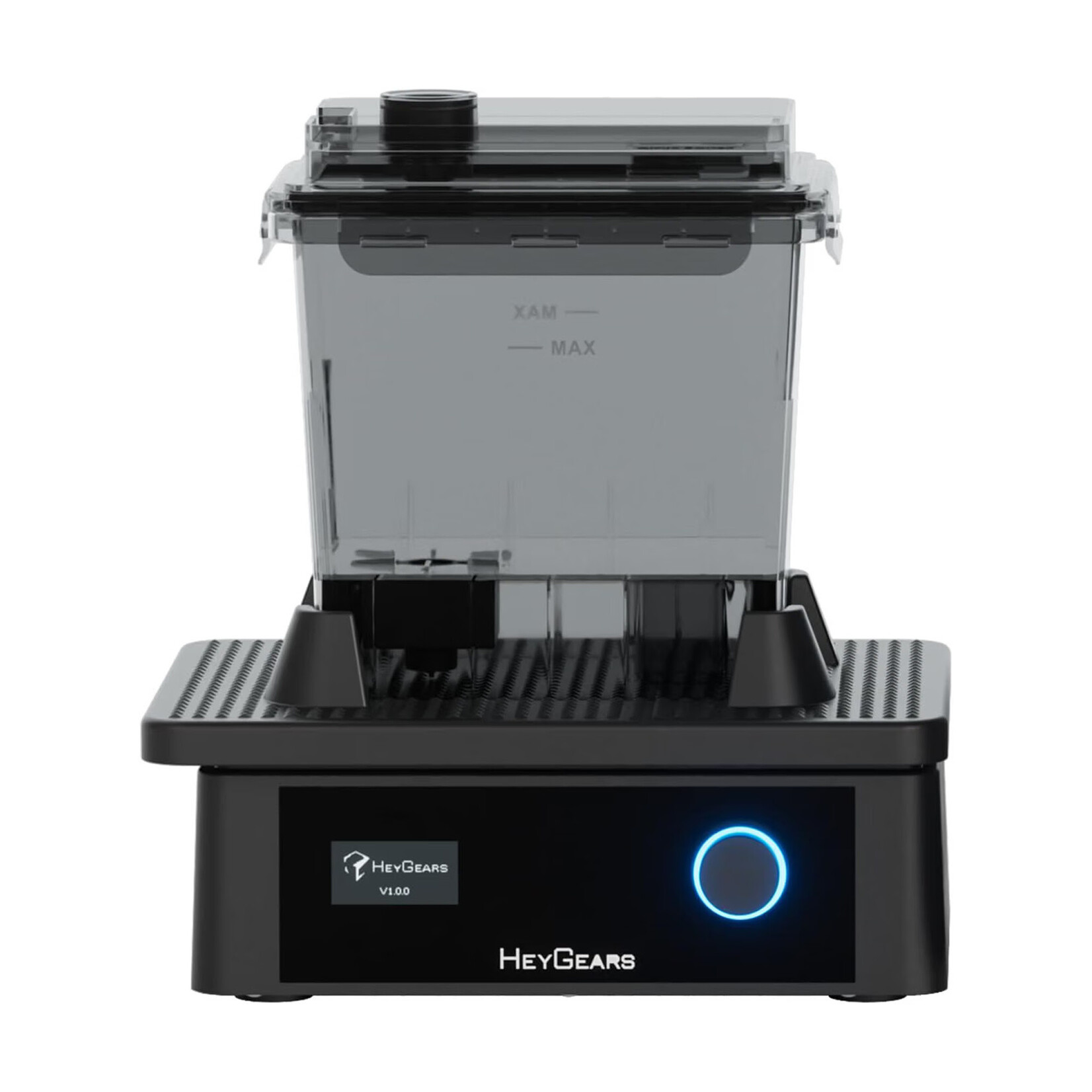

HeyGears UltraCraft Wash automated resin cleaning station
Streamline your resin 3D printing workflow with the HeyGears UltraCraft Wash, an automated post-processing cleaner for the HeyGears Reflex, Reflex RS, and Reflex RS Turbo 3D printer ecosystem.
Eliminate the mess of manual washing with a high-performance cleaning station that delivers professional-grade clarity and dimensional precision in minutes.
Deep cleaning with 80% less washing agent used
Vibration-based washing easily removes uncured resin from the surface.
Traditional wash buckets struggle to strip uncured resin from intricate lattice structures, blind holes, and detailed surface features. The UltraCraft Wash utilises advanced vibration-based liquid agitation that cleans faster and more thoroughly than standard magnetic stirrers while drastically cutting consumable costs.
- 1.5x effective washing power: penetrates micro-details without damaging fragile features.

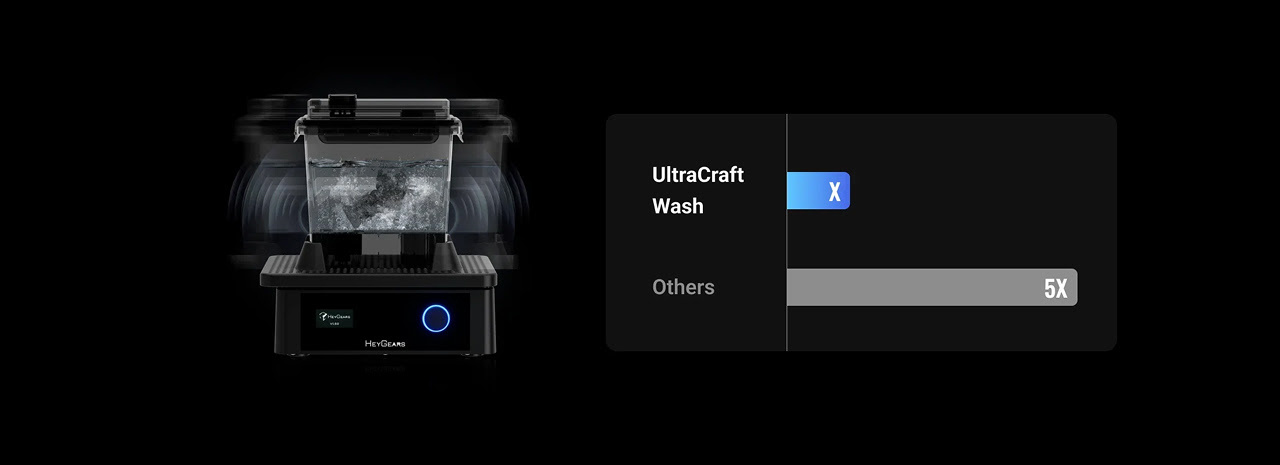

- 80% less washing agent used: optimised liquid dynamics significantly reduce overall solvent consumption per clean.
- 15% higher efficiency: reduces cycle times so you can post-process prints faster.
- Non-contact workflow: minimises your direct exposure to isopropyl alcohol (IPA) or ethanol solvents and uncured resin.

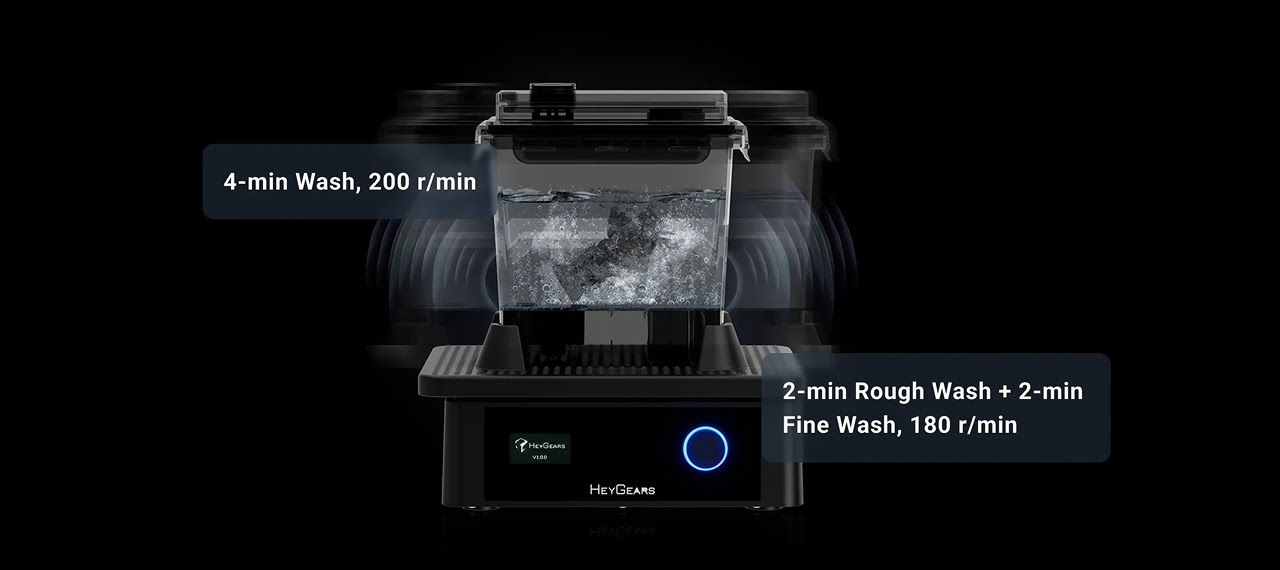

Optimised washing time & speed for high-quality end products
Smart features for effortless operation
- Single-dial control: simple click, rotate, and press-and-hold inputs ensure intuitive operation in any laboratory or workshop condition.
- Snap-fit drainage design: turn the knob to drain solvent cleanly, minimising splashing and reducing chemical handling risks.
- Two-stage washing setup: includes two dedicated washing boxes so you can do a rough rinse first and a final clean second. Move older solvent to the first box to get extra use from every drop and cut down on waste.
- Ecosystem compatibility: native support for the full HeyGears Reflex build platform series.
- Smart connectivity: features built-in Wi-Fi and USB connectivity for automated batch tracking and firmware updates.
Technical specifications
- Max cleaning volume: 198 × 123 × 150 mm
- Device dimensions: 351 × 272 × 168 mm
- Product weight: 8 kg
- Control interface: single-dial control (click, rotate, press and hold)
- Recommended solvent: ethanol (≥95%) or isopropyl alcohol (IPA)
- Compatible printers: HeyGears Reflex, Reflex RS, Reflex RS Turbo
- Included accessories: 1× Wash Base, 2× Washing Boxes
This product consists of UltraCraft Wash-wash box (EAN 6971437942086) and UltraCraft Wash-Host (EAN 6971437941829).
