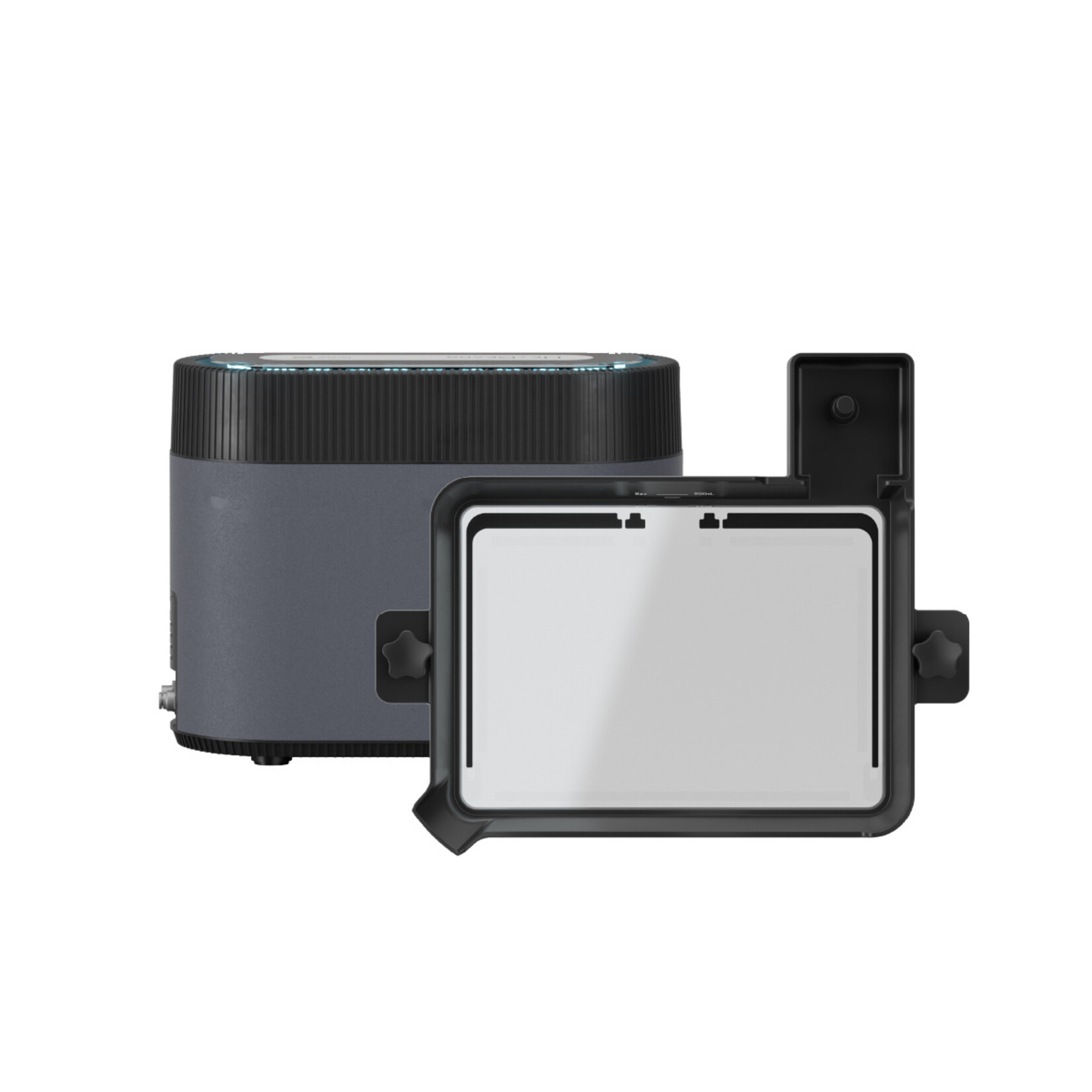

HeyGears UltraCraft Reflex 2 & 2 Pro Pulsing Release Module Kit

Designed for high-speed performance, the UltraCraft Reflex 2 & Reflex 2 Pro Pulsing Release Module Kit combines a specialised Pulsing Release Module 2 with a matching Reflex 2 Series Pulsing Release Resin Tank.

Reflex 2 Series Pulsing Release Module

The HeyGears Pulsing Release Module 2 is an optional upgrade engineered to elevate the speed, reliability, and material capabilities of your HeyGears UltraCraft Reflex 2 & 2 Pro desktop 3D printer. By integrating dynamic pressure control during the printing cycle, the module actively inflates and deflates the tank release film, cutting layer peel forces in half to deliver faster, higher-yield print jobs with significantly reduced support requirements.

Key features

• 20% to 60% reduction in support material: lower separation forces allow you to successfully print models with far fewer support structures, reducing resin utilisation and lowering production costs.
• 25% to 54% reduced support contact area: drastically decreases total support touchpoints, minimising manual sanding, surface scarring, and post-processing labour.
• Next-generation pulsing release: features a specialised flex profile that accelerates layer separation, allowing faster print speeds while protecting delicate micro-features.

Reflex 2 Series Pulsing Release Resin Tank

The HeyGears Reflex 2 Series Pulsing Release Resin Tank is a high-performance tank for UltraCraft Reflex 2 Series 3D printers. Built with a low-suction dynamic film and leak-proof housing, it reduces layer separation forces to protect delicate model geometries.

HeyGears UltraCraft PrintBoost System Reflex includes

• Pulsing Release Module 2 x1
• Reflex 2 Series Pulsing Release Resin Tank x1

Printer & system compatibility

This add-on is designed specifically for original HeyGears UltraCraft Reflex 2 series 3D printers.

Note: the add-on requires a compatible Pulsing Release Resin Tank for active pressure functionality. This add-on is mandatory for 3D printing with PAC10, PAE10, and PAU20 resins; it is not compatible with water-washable resins (PAWW10/PAWW20).

This product consists of:

Reflex 2 Series Pulsing Release Module EAN 6971437943519
Reflex 2 Series Pulsing Release Resin Tank EAN 6971437943458
