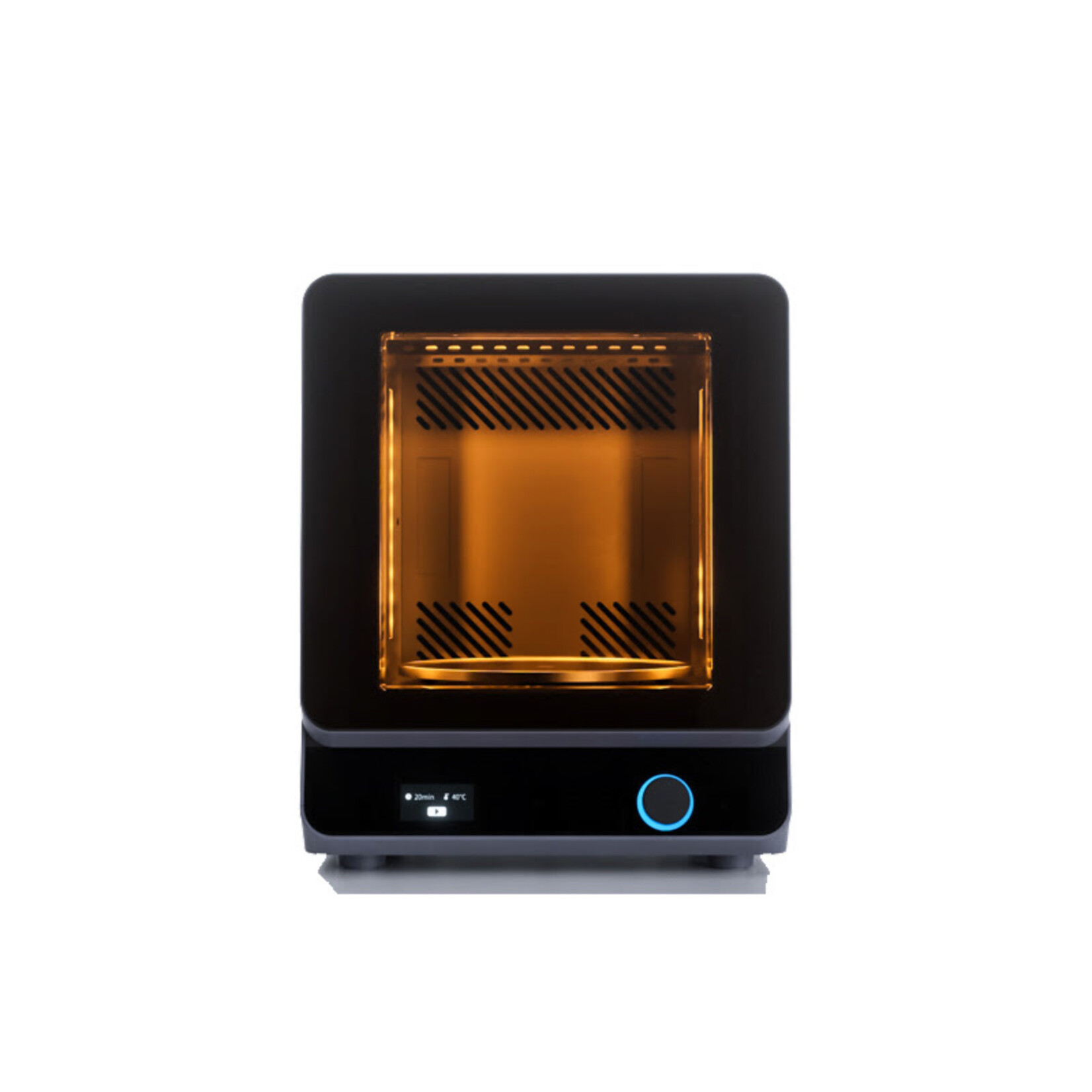

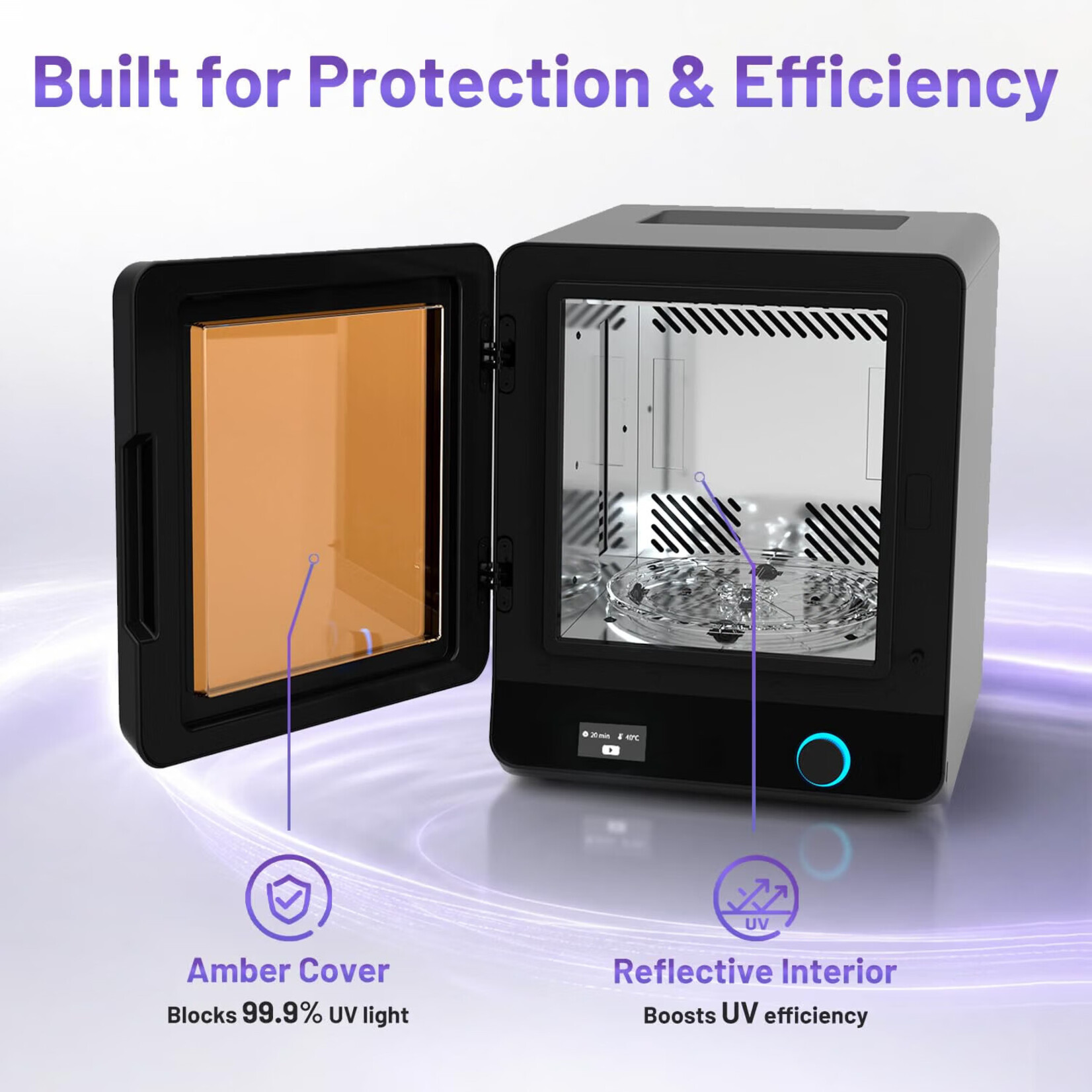

HeyGears UltraCraft Cure

Achieve ultimate part strength and stability with the HeyGears UltraCraft Cure, an advanced UV post-processing station for the HeyGears Reflex, Reflex RS, and Reflex RS Turbo 3D printer ecosystem.

Designed to complete your 3D printing workflow, this curing station provides consistent, high-intensity UV light to ensure complete photopolymer cross-linking, superior structural stability, and peak mechanical performance post-cure.

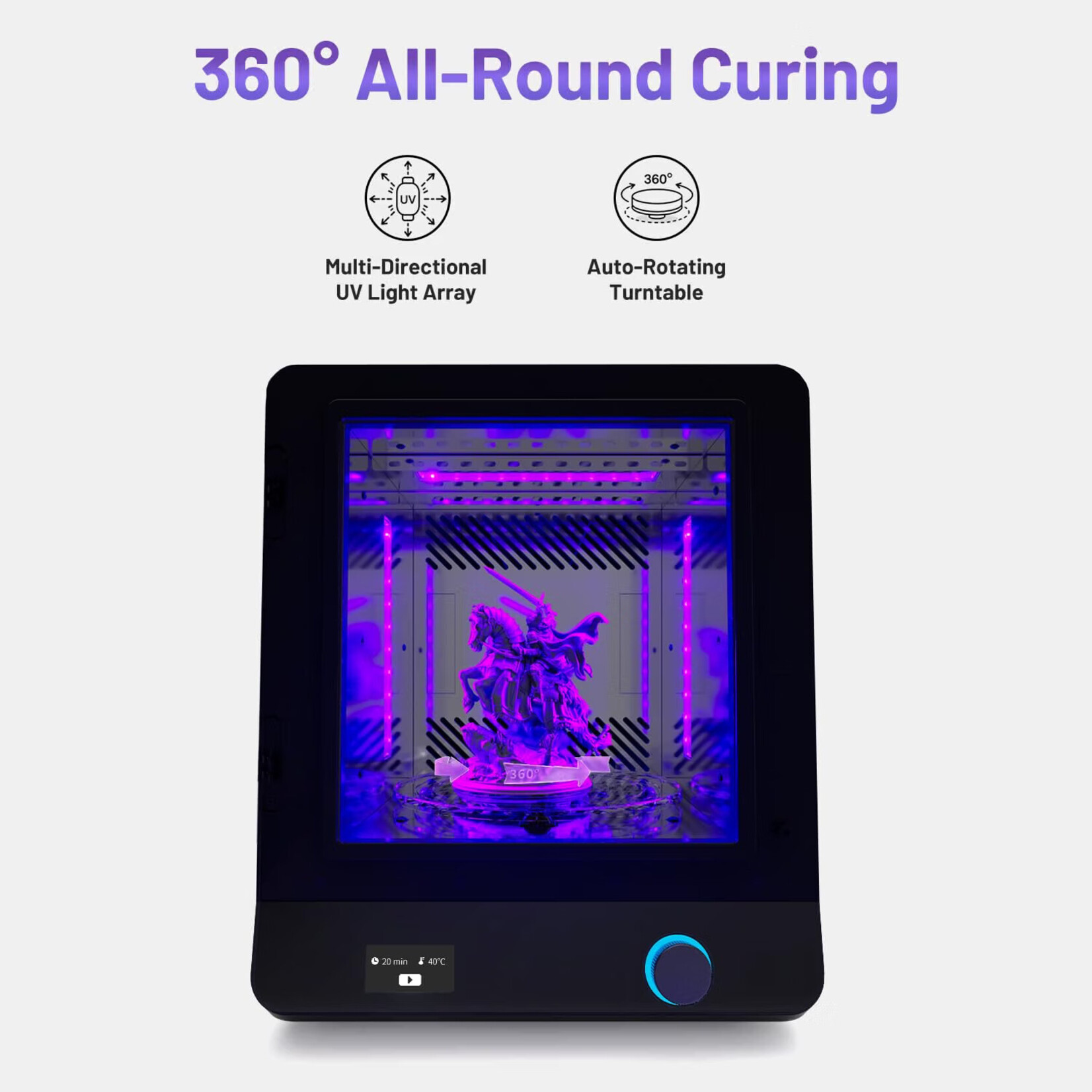

Dual-band UV wavelengths and 360° exposure

Traditional UV boxes often leave models unevenly cured or brittle. The UltraCraft Cure uses dual-band light spectrum technology combined with full-chamber illumination to cure parts simultaneously inside and out.

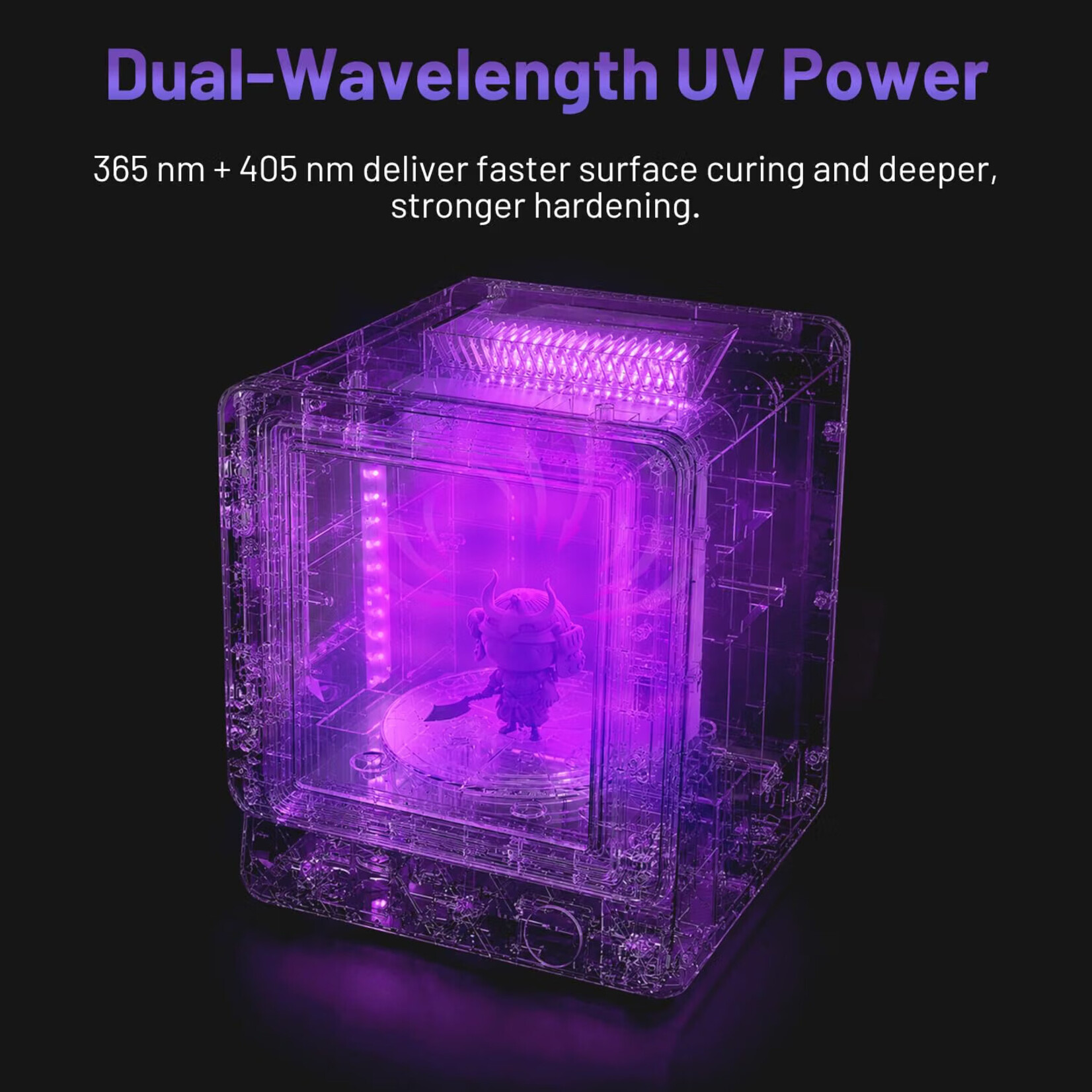

• Dual-band curing (365 nm + 405 nm): uses 365 nm UV light for precise surface curing and 405 nm for deep internal penetration.
• 90%+ cross-linking rate: maximises mechanical performance and longevity of printed resins.
• 95% light uniformity: ensures consistent energy distribution across all 360° of the curing chamber.
• Dual-mode flexibility: select high-performance cure for maximum structural strength or rapid cure for optimised workflow speed and detail clarity.

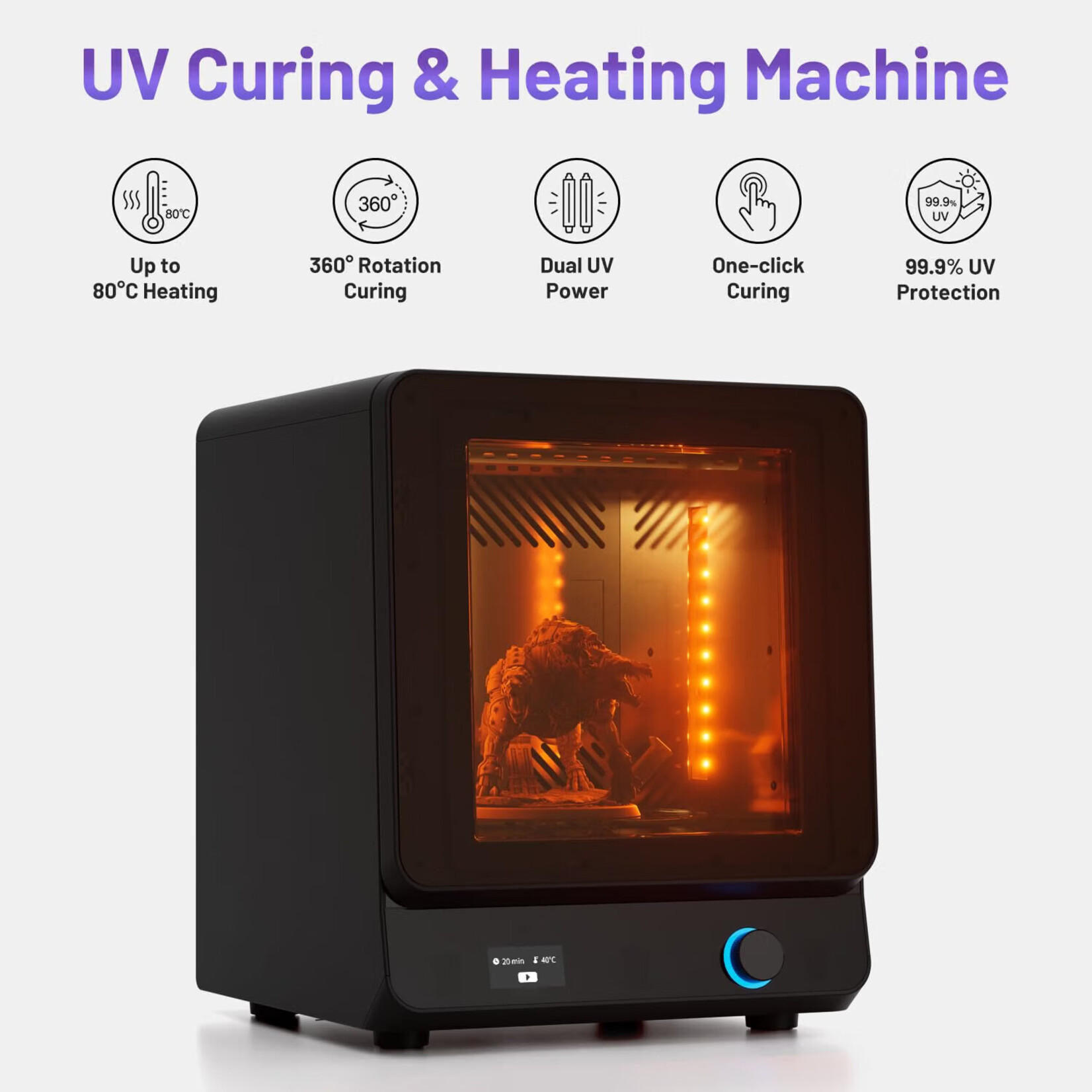

Intelligent heating and automated workflow

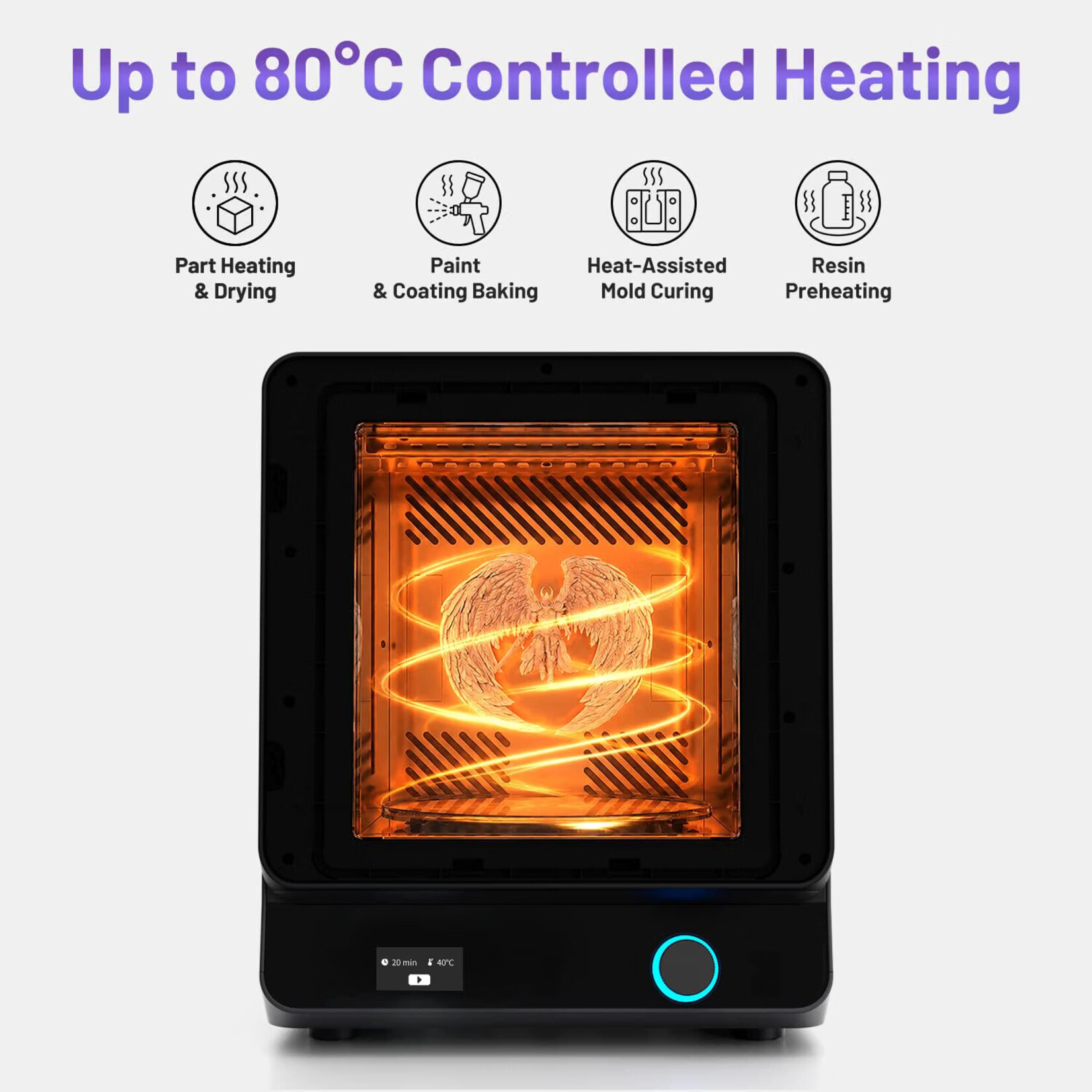

• Integrated thermal chamber: extra heating functionality (60 - 80 °C) accelerates polymerisation and prepares parts for secondary surface treatments.

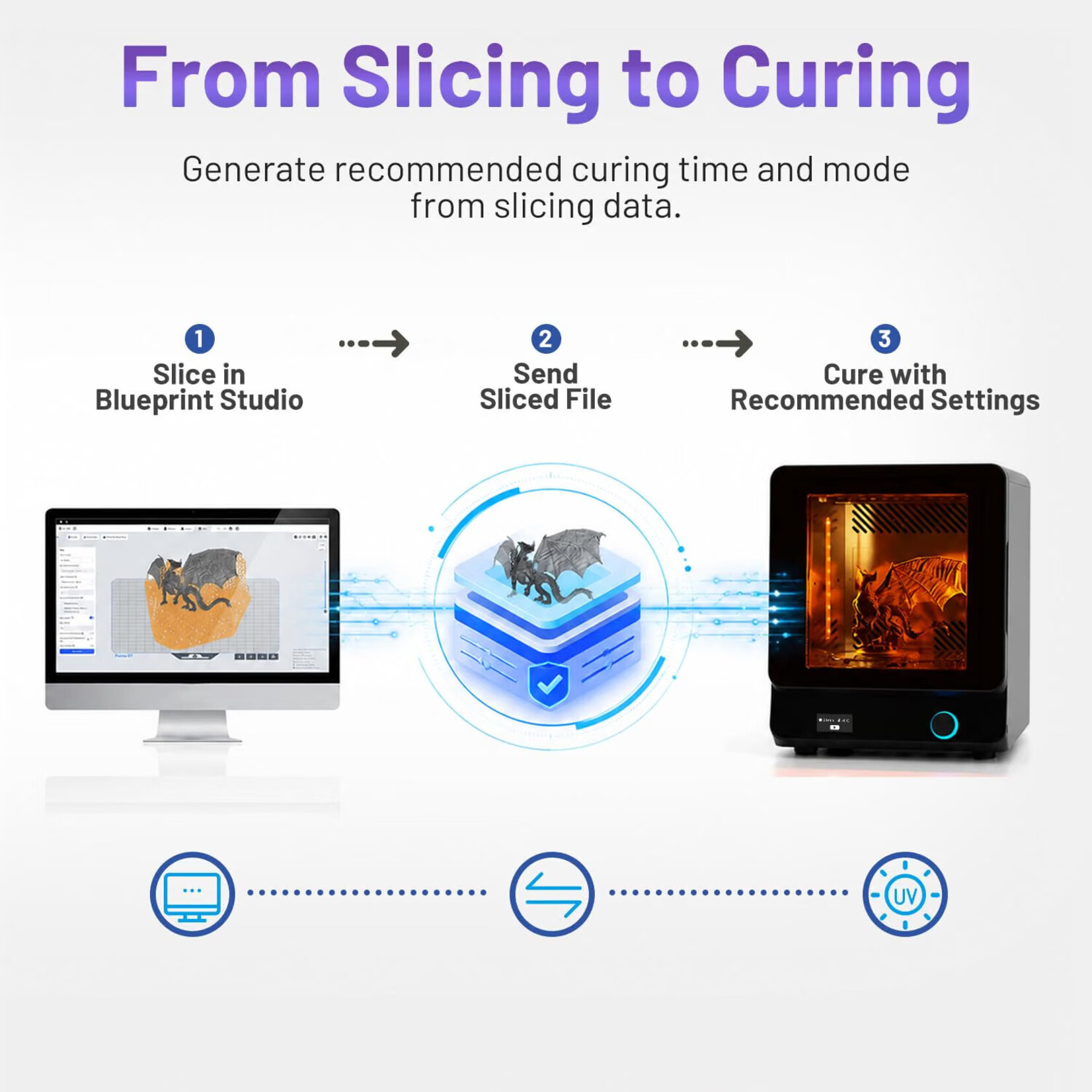

• Automatic parameter assignment: smart system automatically calculates and adjusts cure times and temperatures based on the loaded resin type.
• Ecosystem compatibility: native support for all HeyGears Reflex series resins and build platforms.
• Smart connectivity: features built-in Wi-Fi and USB connectivity for seamless firmware updates and batch tracking.

Technical specifications

• Max curing volume: 198 × 124 × 220 mm

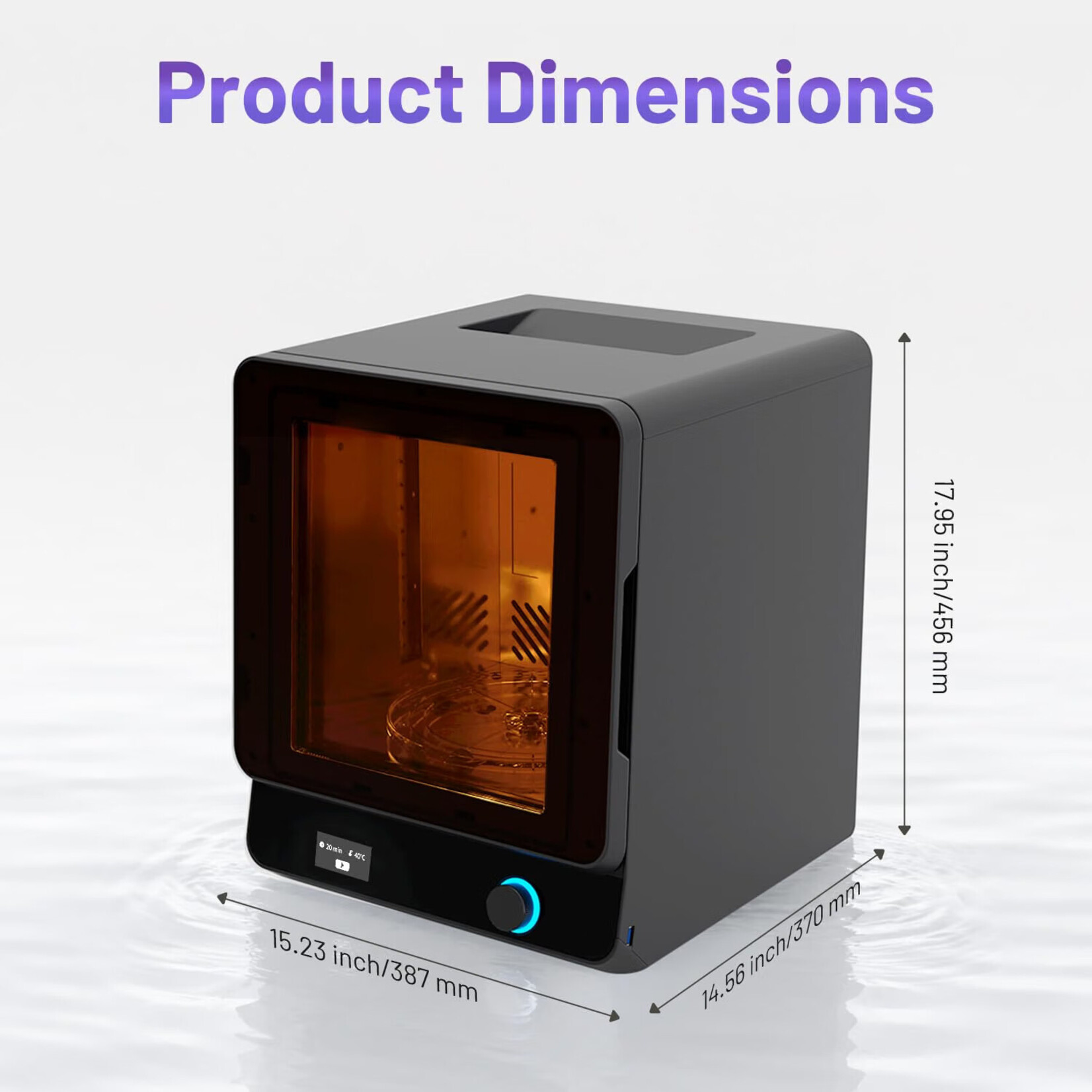

• Device dimensions: 370 × 387 × 456 mm
• Product weight: 12 kg
• UV wavelengths: 365 nm + 405 nm
• Max curing temperature: 60 - 80 °C
• Rated power: 350 W
• Compatible printers: HeyGears Reflex, Reflex RS, Reflex RS Turbo
