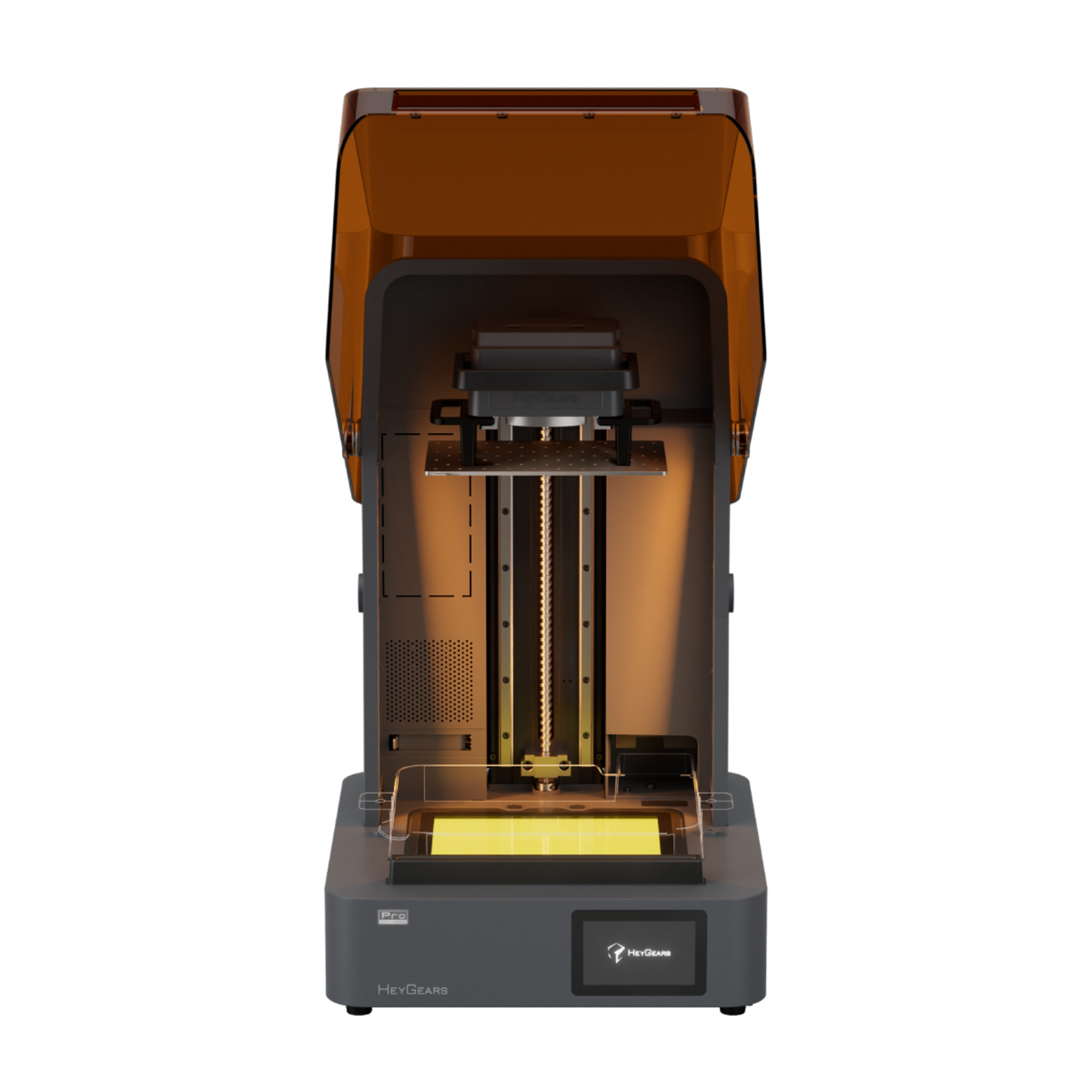

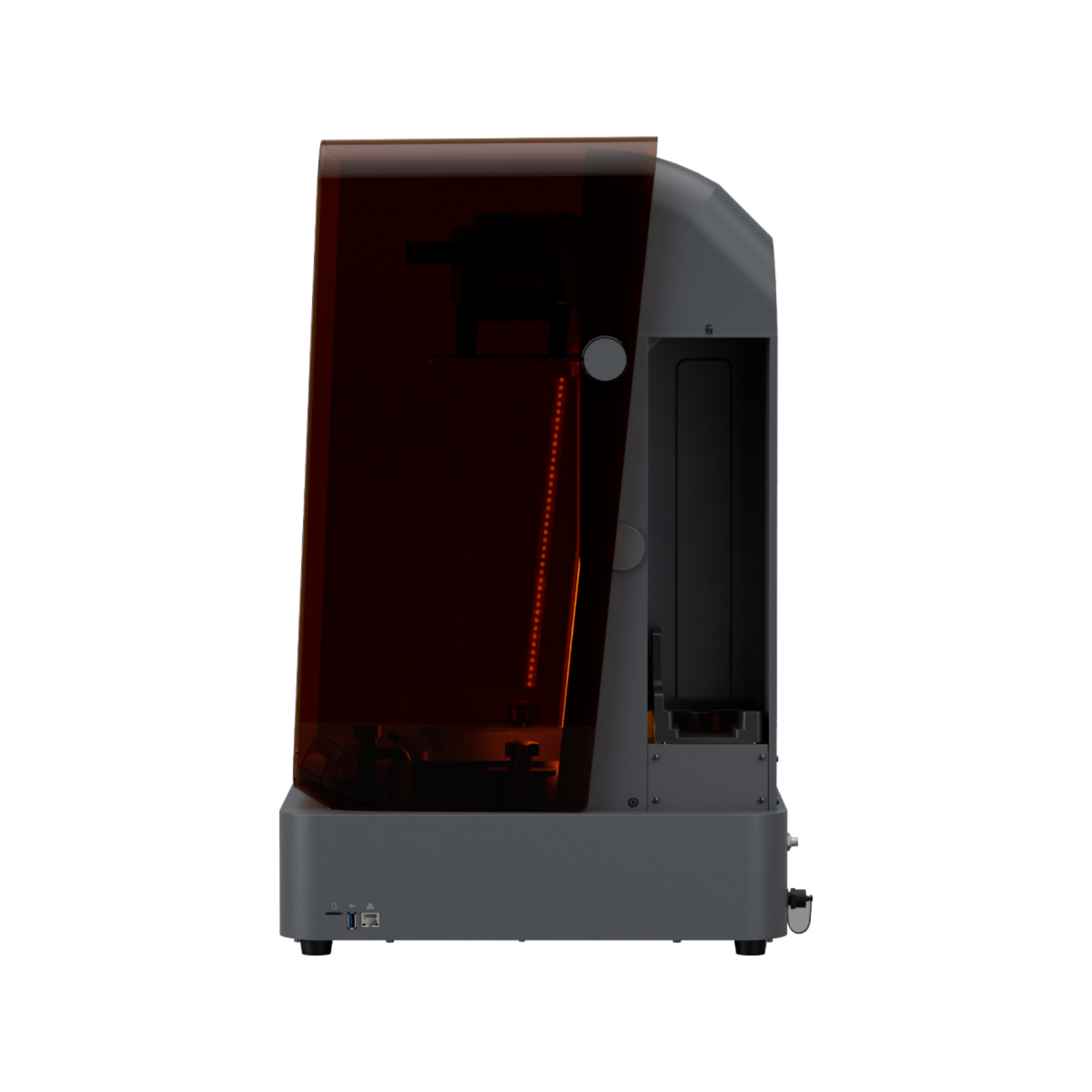

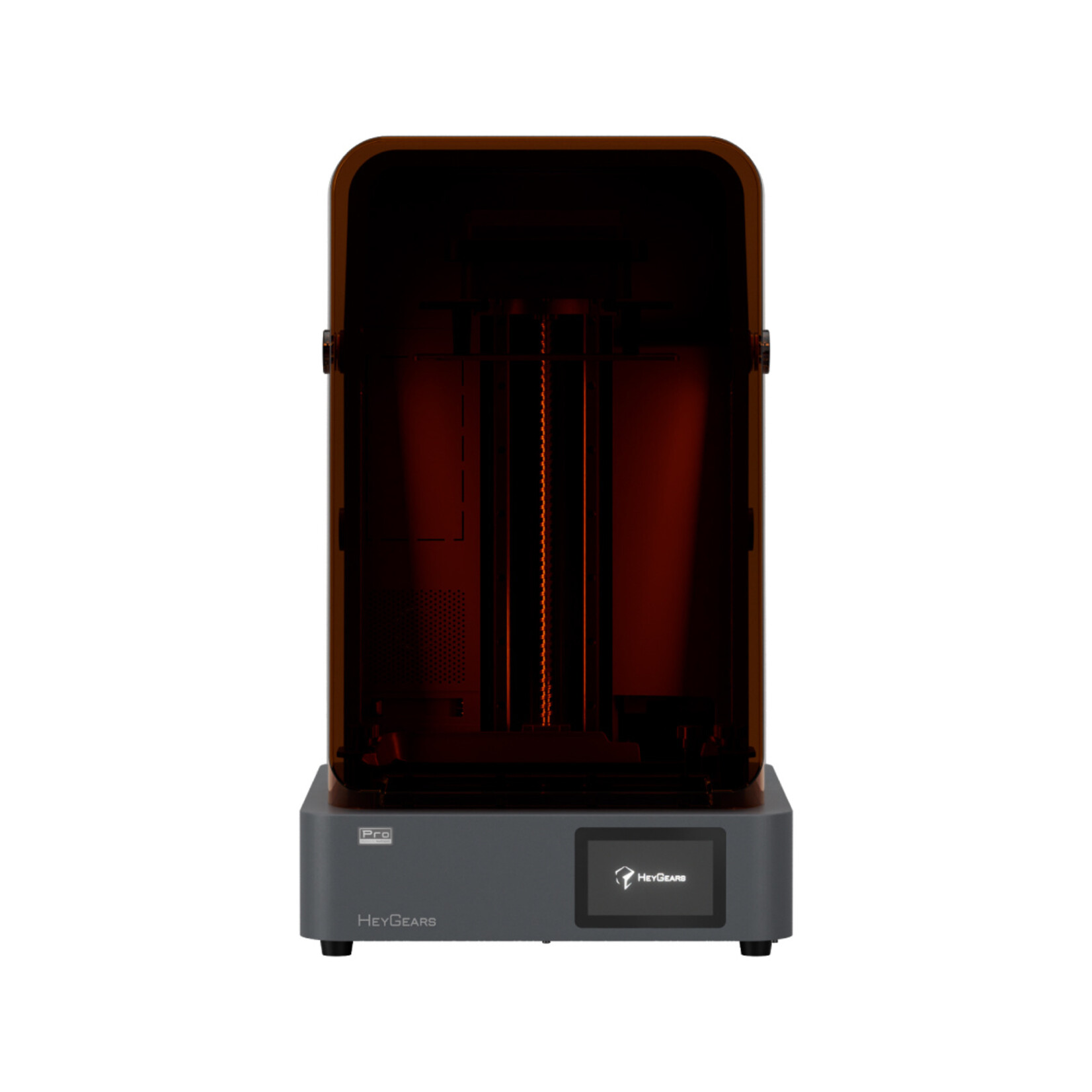

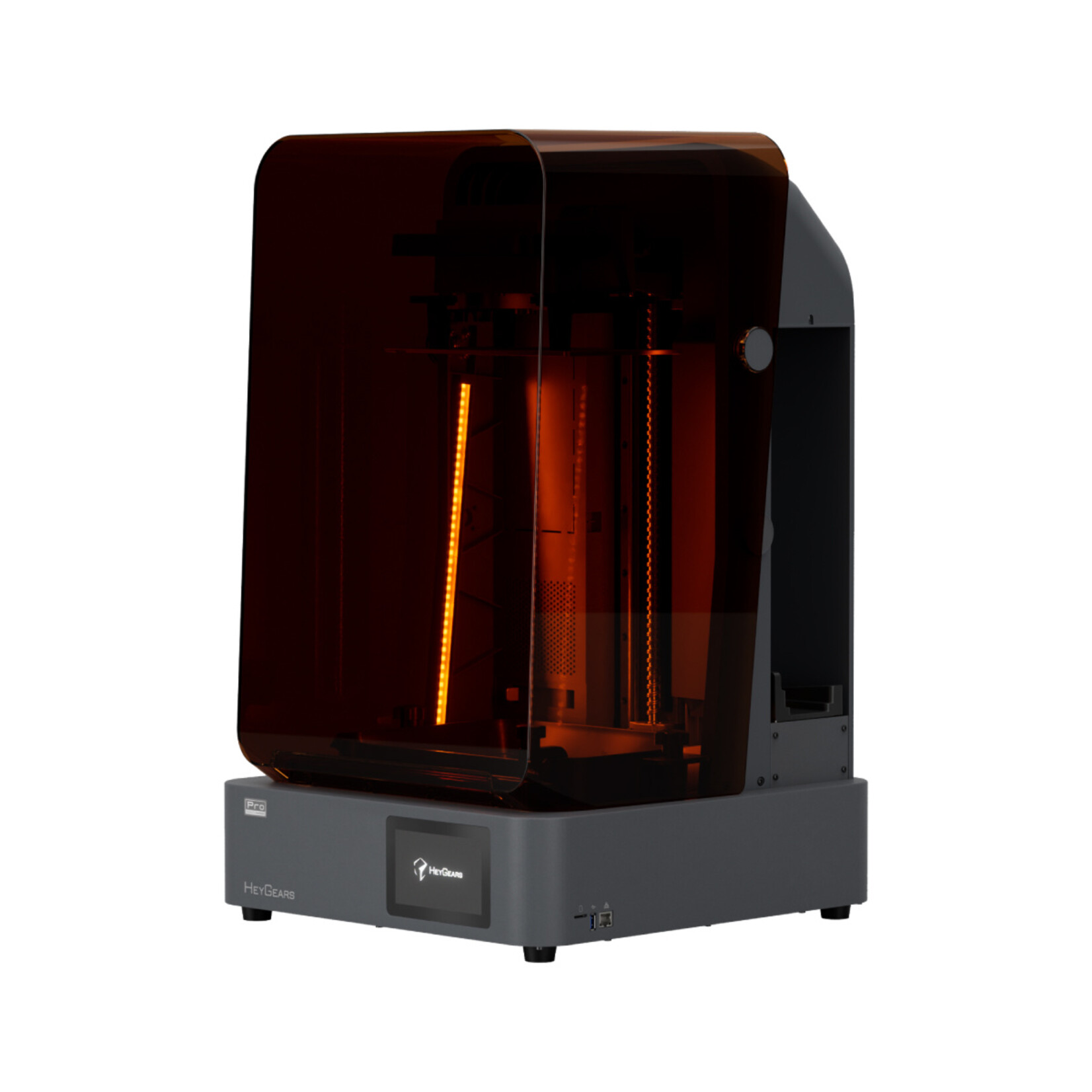

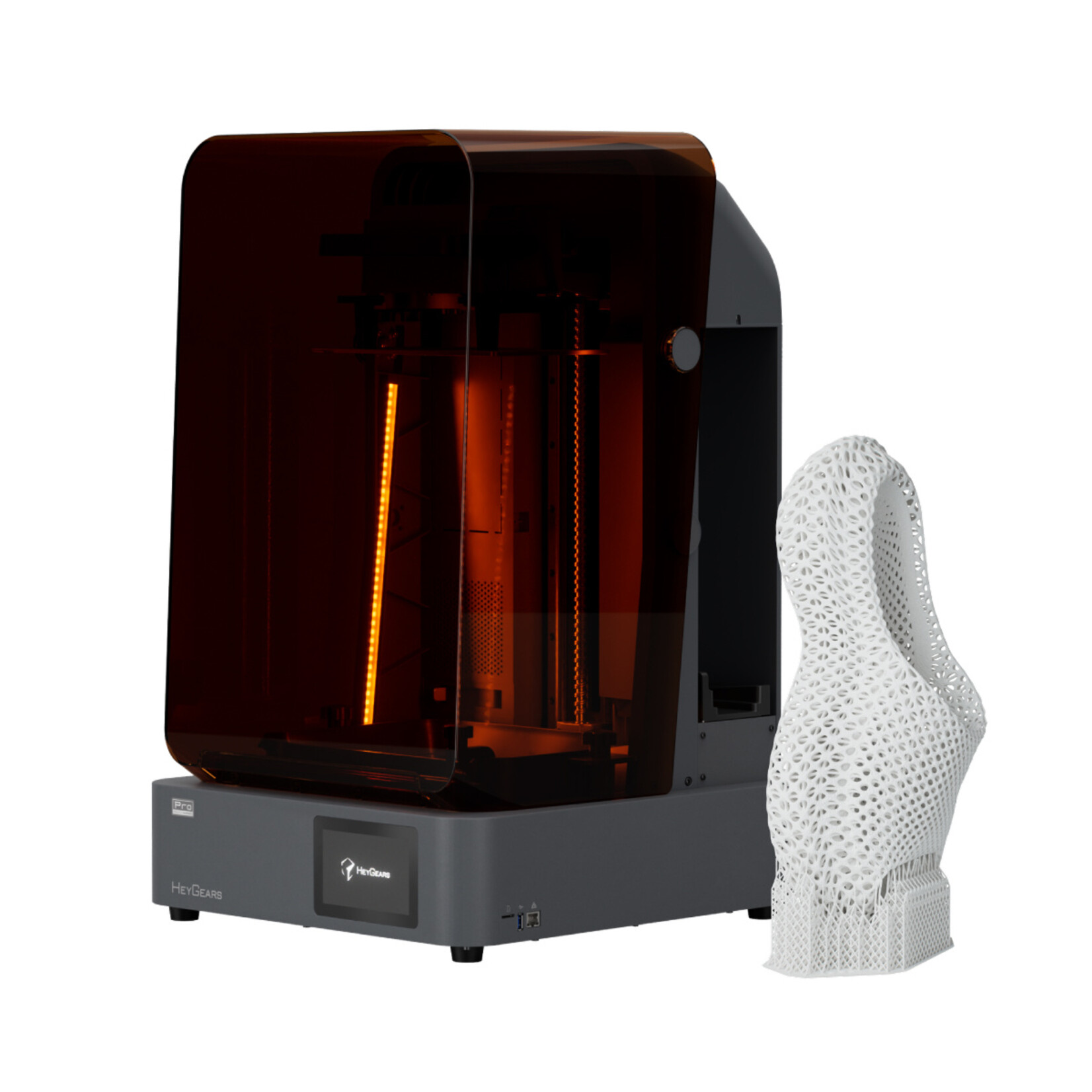

HeyGears UltraCraft Reflex 2 Pro

The HeyGears Reflex 2 Pro is an industrial-grade resin 3D printer engineered specifically for seamless, high-precision batch production. Combining an expanded build volume with intelligent automated systems, this printer bridges the gap between rapid prototyping and true small-scale manufacturing.

Key 3D printer highlights

• Heavy-duty Amber Screen Pro: an upgraded long-life light engine lets more UV energy pass through, allowing tough technical resins to cure faster while lasting twice as long as standard screens (6,000+ hours).
• Ultra-uniform light engine: a custom 1,032-zone LED light matrix ensures light reaches every corner of the print bed evenly, preventing uneven curing and keeping model dimensions sharp across large batches.
• Vibration-free vertical motion: advanced closed-loop motor control moves the print head with pinpoint precision, keeping layer lines invisible and eliminating print wobbles even when lifting heavy models.
• Smart tank heating & stirring: an integrated heated scraper keeps resin at the ideal temperature and constantly mixes the tank, preventing material from settling or separating during long prints.

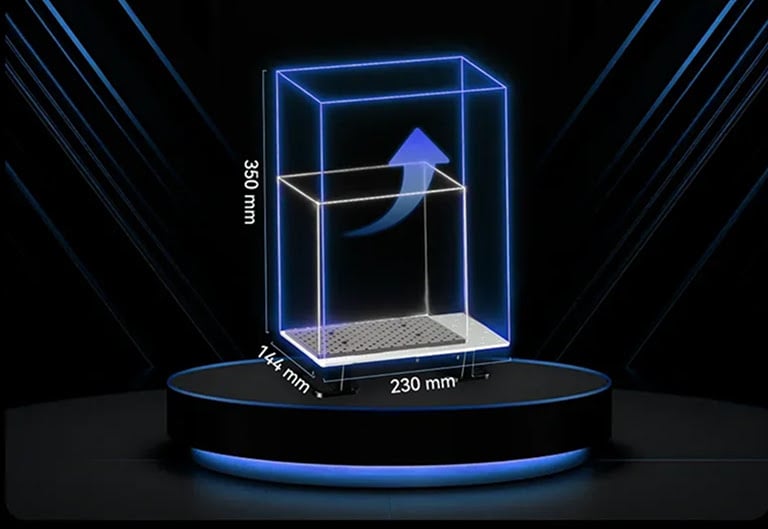

Expanded 230 × 144 × 350 mm build volume

The HeyGears Reflex 2 Pro has a substantial 230 × 144 × 350 mm build volume, offering 2.3 times the printable volume of the original Reflex model. This expanded footprint transforms the 3D printer from a rapid-prototyping tool into an industrial-grade batch production system.

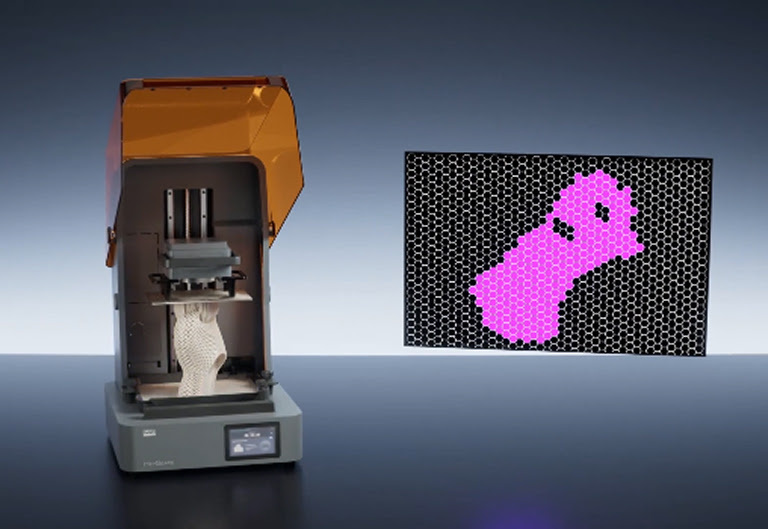

Extend resin life with targeted light delivery

Powered by the OptiZone Light Engine, the machine uses an advanced array of nearly half a million micro-lenses to shape light directly around your models. By curing only where needed and avoiding empty space, it reduces unwanted light leakage, keeping your resin fresh longer and dramatically cutting down on tank cleaning.

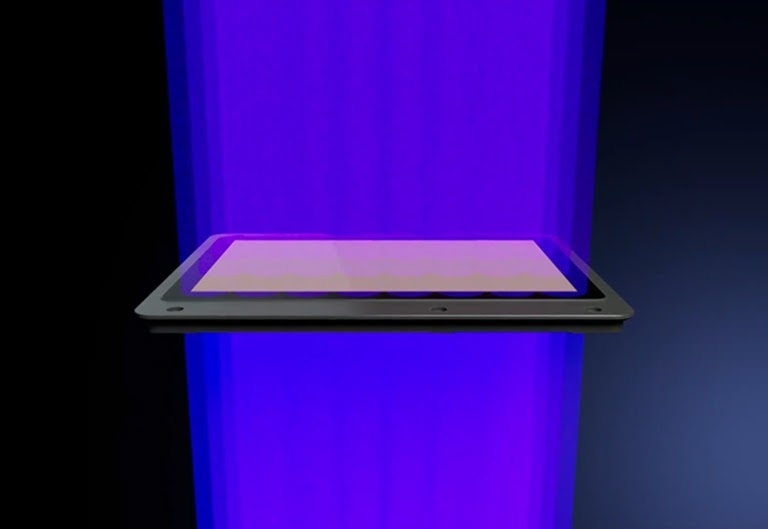

Upgraded Amber Screen Pro

Engineered for continuous production cycles, the Amber Screen Pro boasts a 10% energy transmission rate, double that of standard LCD light sources, delivering curing light intensity up to 35 W/m². Built-in structural support pillars withstand over 10,000 pressure cycles at 40 kg, making it ideal for tough, high-viscosity resins.

Precise curing with 385+ nm UV light

Featuring a specialised 385+ nm UV light system, the Reflex 2 Pro provides a 1.5× stronger curing effect than standard 405 nm printers. This ensures deeper, more even curing and unlocks compatibility with high-performance engineering and optical resins.

Go beyond prototypes, start production

Designed to scale output effortlessly, the Reflex 2 Pro’s expanded build space accommodates full-scale models or multiple arrayed components in a single job. By overcoming traditional peeling force constraints, solid industrial parts can be mass-produced with consistent layer alignment.

The large build platform allows batch production, which reduces the amount of errors and costs.

Auto-assisted printing & smart sensors

Achieve maximum uptime with minimal manual intervention:

• Floating screen auto-leveling: automatic platform compensation eliminates gap discrepancies up to 240 µm.
• Ultrasonic auto resin refill: tracks resin levels dynamically within ±0.5 mm accuracy to trigger timely auto-refills.
• 0.15 mm debris detection: ultra-sensitive force sensors (0.01 N) detect solid debris in the tank and automatically pause printing to protect the screen.

Compatible ecosystem

The UltraCraft Reflex 2 Pro seamlessly integrates into the HeyGears post-processing ecosystem, working alongside the UltraCraft Wash (for minimal resin contact cleaning) and the UltraCraft Cure (featuring dual-wavelength UV curing with added heat control for maximum mechanical strength).

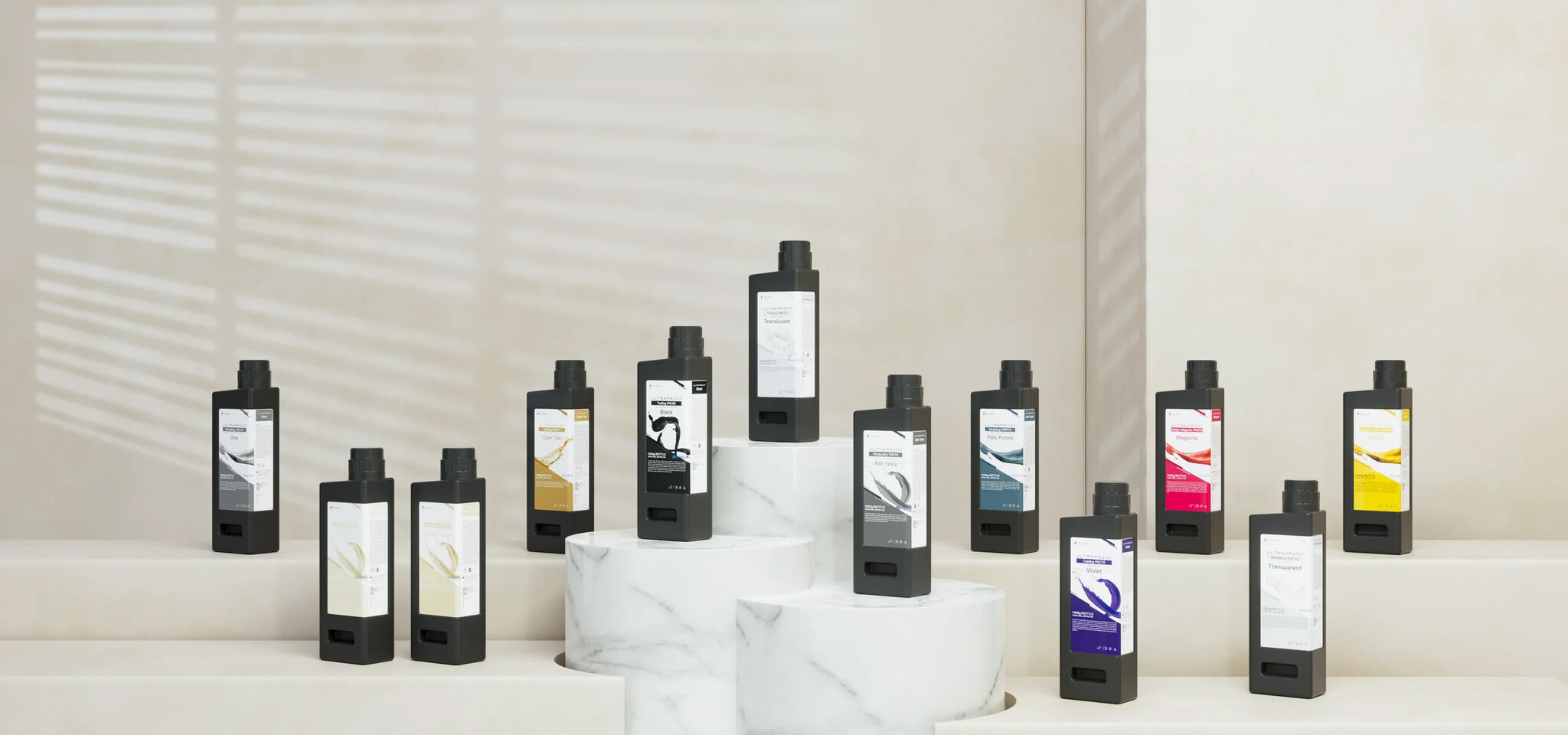

Compatible with high-performance resins

HeyGears has developed several resins that allow you to tweak the stiffness and transparency of your prints. This opens up a lot of new applications, as you can make some parts bendable while others remain firm. Especially for high-firmness engineering parts, this offers a lot of advantages.

While HeyGears printers support third-party resins, using official HeyGears materials ensures optimal results, as the software settings are specifically tailored to their exact formulation.

Technical overview

• Build volume: 230 × 144 × 350 mm (2.3× larger volume, ideal for large-scale components or continuous batch array production)
• Precision: high-accuracy visual calibration (MASK) achieving dimensional accuracy within less than 0.05 mm and ±2 μm Z-axis positioning
• Material support: works with high-performance engineering, modeling, water-washable, tough, and high-viscosity resins (including PAC10, PAU11, PAH10, PAT10, and PAU20)
• Connectivity: dynamic file transfers via Wi-Fi, Ethernet, or USB drive

Many applications

Professionals across dentistry, architecture, jewelry-making, and prop design use this kind of printer to produce decorations, maquettes, dental implants, prototypes, and jewelry pieces in small batches. Dozens of models in a single cycle instead of one at a time. A bigger tank means fewer print runs, less resin wasted on repeated setups, and the freedom to take on the ambitious build instead of scaling it down. That's why dentists, architects, teachers, Etsy sellers, designers, prop makers, jewellers, and product designers all reach for the UltraCraft Reflex 2 Pro.

What is in the box

• Printer
• Heating Scraper
• Resin-Refill Lid
• Power Cord
• Part Removal Tool
• Resin Tank
• Part Removal Tool
• Build Platform
• T-Type Wrench
• Quick Start
• After-sales Service Guide
