Shining 3D Einstar Rockit

Einstar Rockit: high‑speed, wireless hybrid laser and IR 3D scanner

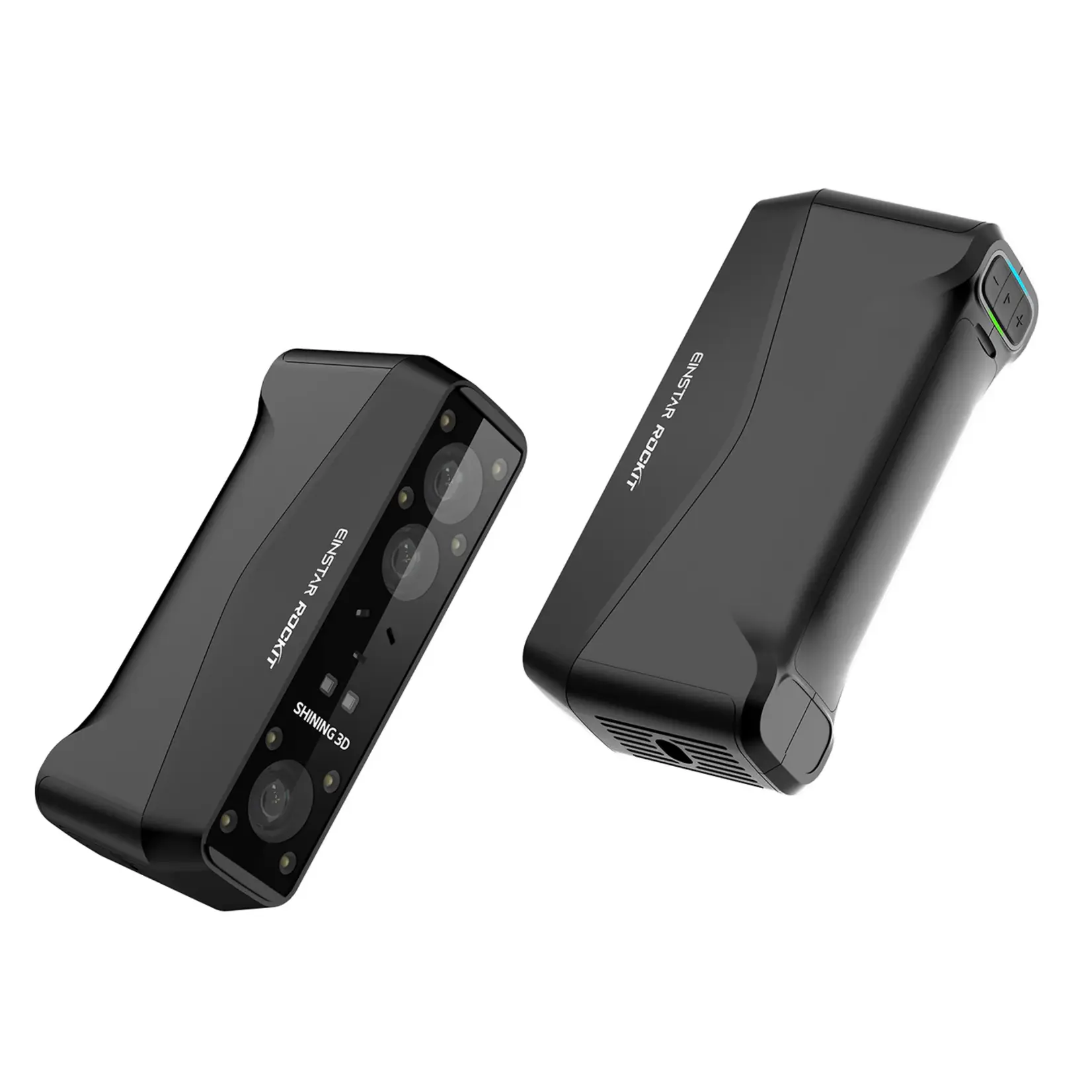

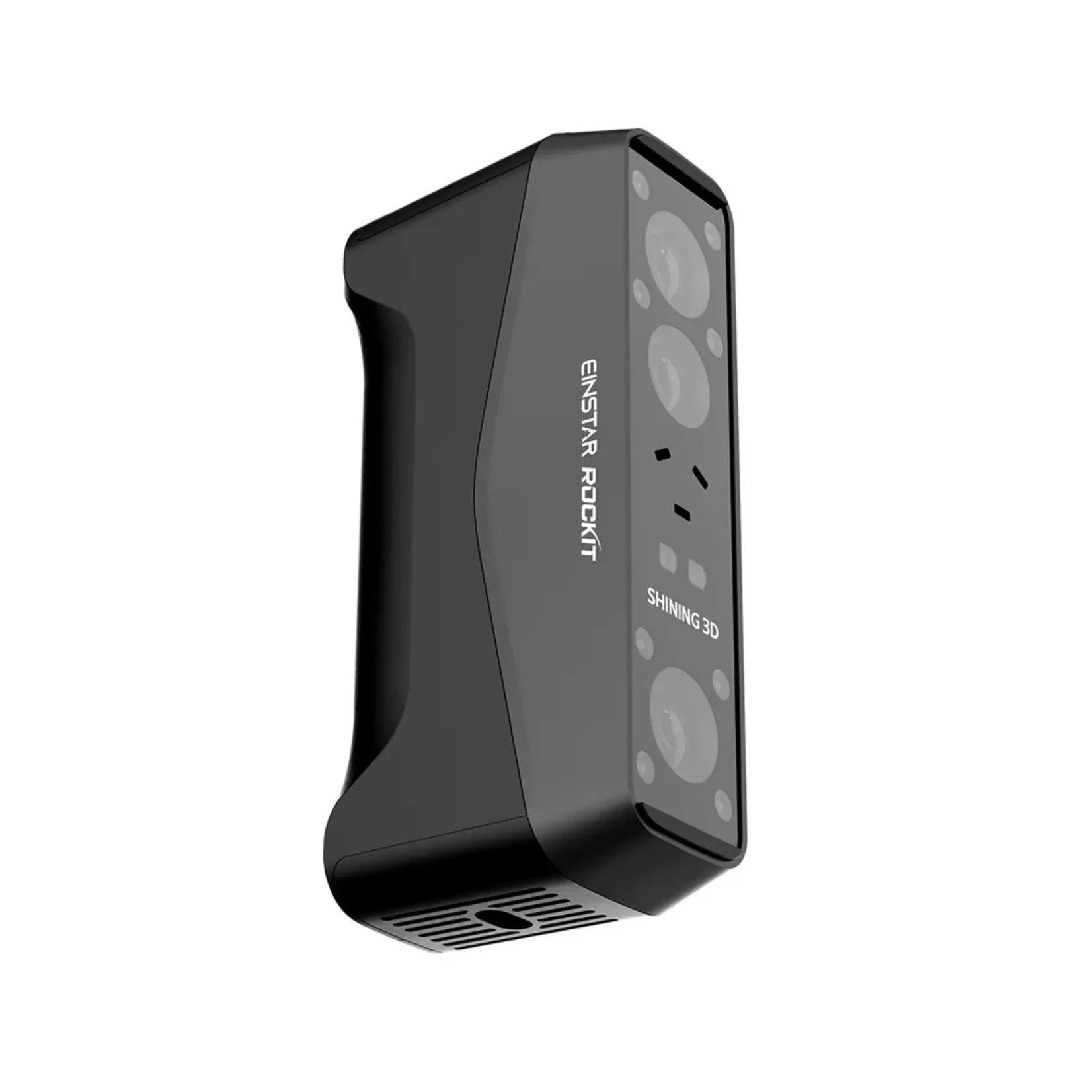

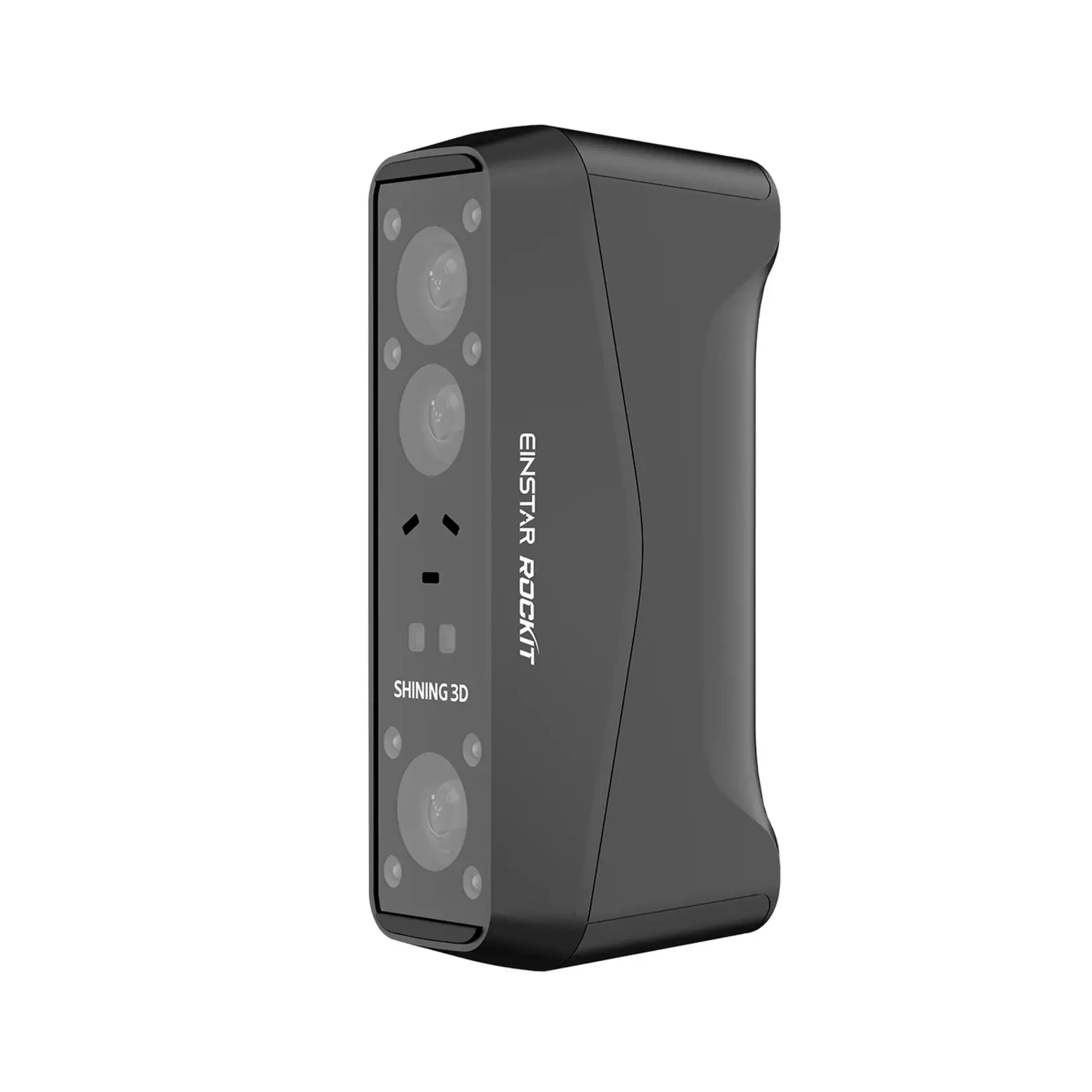

The Einstar Rockit is a portable, professional‑grade 3D scanner that combines precision laser scanning with rapid infrared (IR) capture in a truly wireless device. Designed for creators, engineers and makers who need fast, accurate scans on the move, the Rockit features dual scan modes — Laser HD for high‑definition detail and IR Rapid for fast capture of larger objects — with advanced feature tracking and optional marker alignment. With up to 2.8 million points per second and built‑in Wi‑Fi, this scanner delivers clean, detailed 3D meshes without tethered cables or external hubs.

Its lightweight design (approximately 425 g with batteries) and rechargeable battery system allow extended scanning sessions in workshops, studios or on site. Whether you are reverse engineering automotive parts, digitising sculptures, capturing assets for AR/VR or creating digital twins for design workflows, the Einstar Rockit provides a powerful and flexible scanning solution.

Key features:

• Wireless scanning with built‑in Wi‑Fi: Freedom from cables for flexible scanning around large objects and in complex environments, with USB‑C as a reliable wired option if needed.
• Hybrid light technology: Combines multiple blue laser lines for fine detail and an IR VCSEL source for rapid scanning of medium to large subjects.
• Marker‑free and hybrid alignment: Advanced algorithms support scanning both with and without markers, alongside feature, texture and combined hybrid tracking.
• High‑speed acquisition: Capable of capture at up to 90 frames per second, ensuring smooth, responsive 3D data collection even during rapid hand movements.

Technical specifications:

• Scan modes: Laser HD | IR Rapid

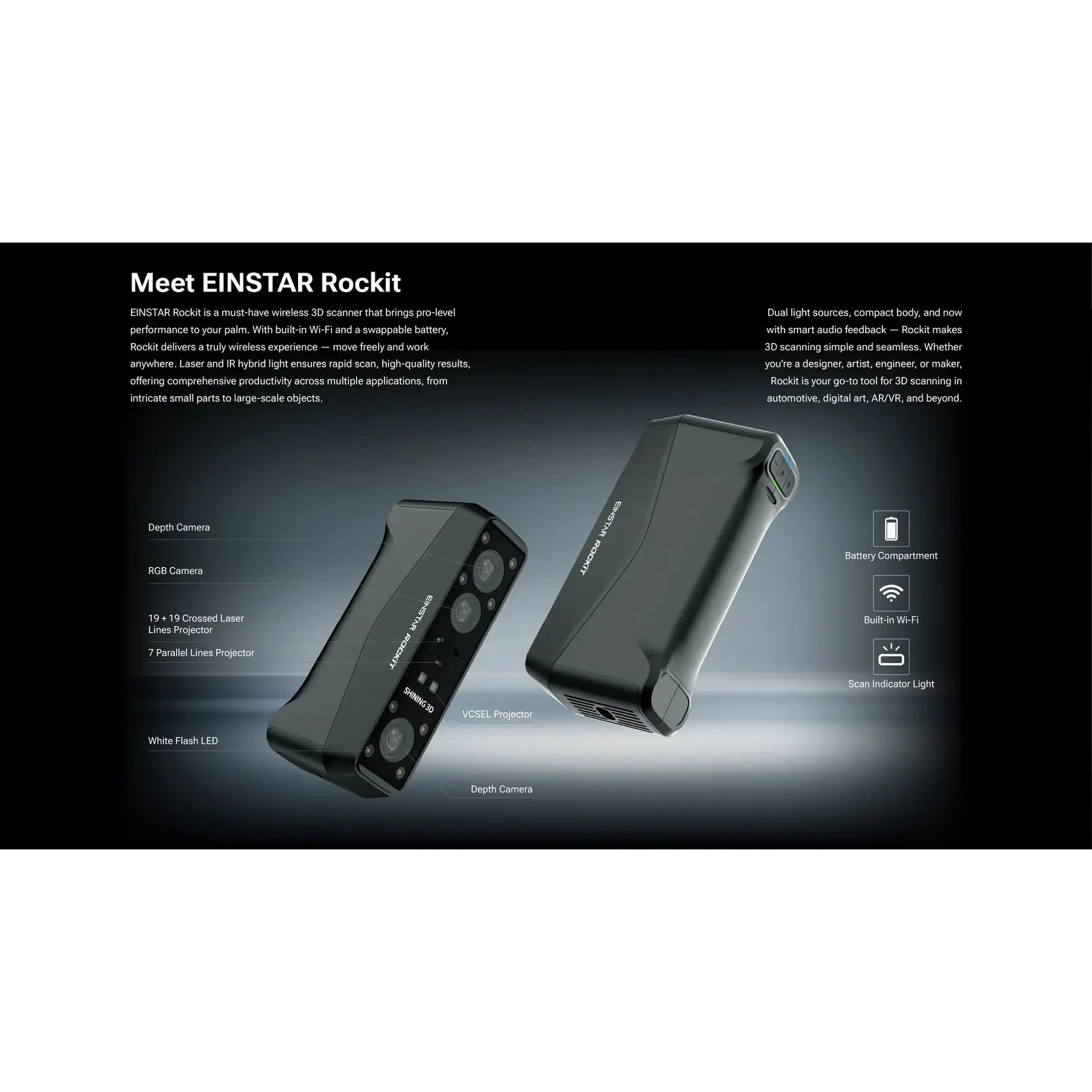

• Light sources: 38 blue laser lines (19 + 19 crossed), 7 blue laser parallel lines, IR VCSEL
• Resolution: 0.05 mm to 10 mm (Laser HD); 0.2 mm to 10 mm (IR Rapid)
• Scanning speed: Up to 2 800 000 points/s (Laser HD); higher rates possible in IR Rapid

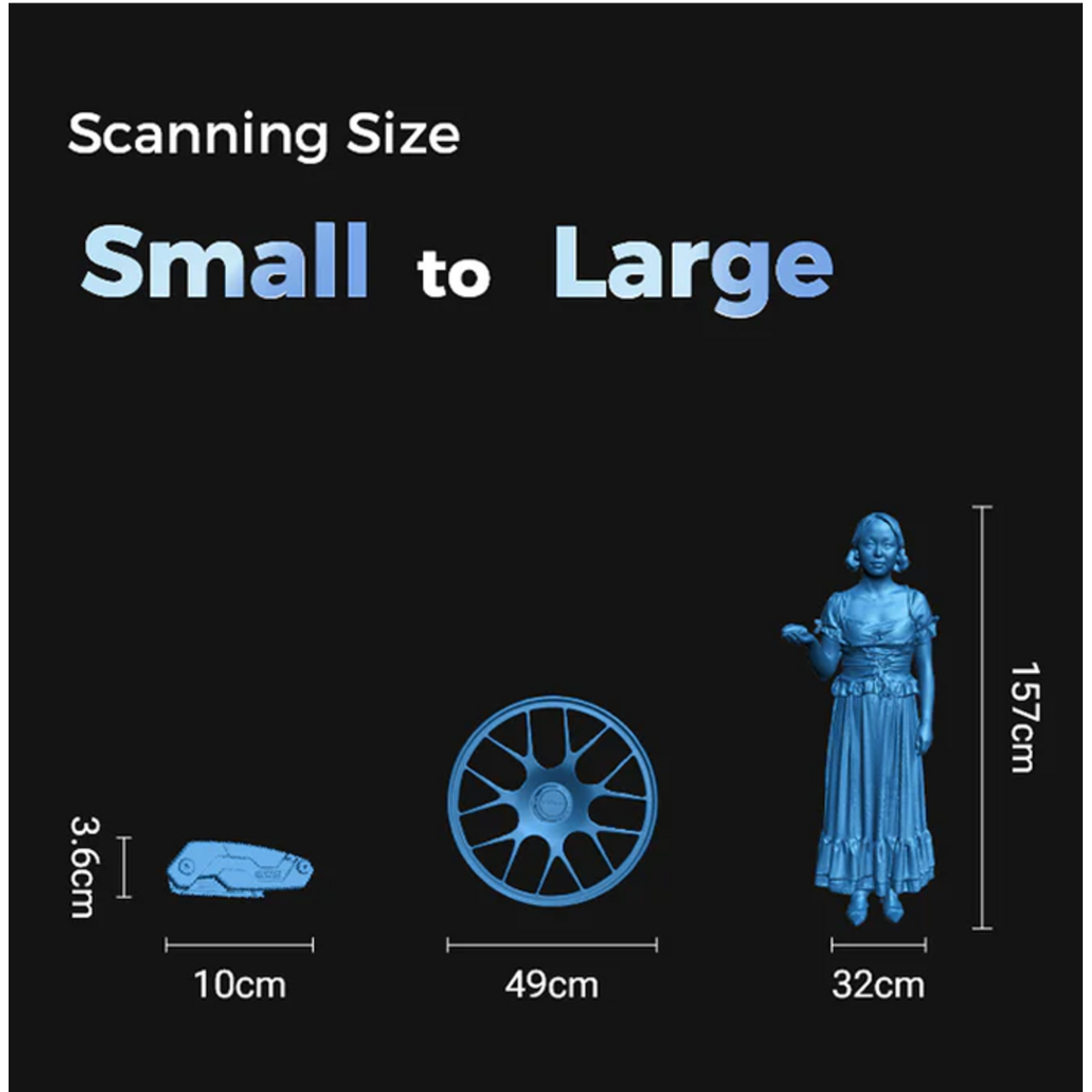

• Maximum field of view: Up to 1170 × 1385 mm in IR Rapid mode
• Alignment modes: Feature, marker, texture and hybrid tracking
• Texture capture: Dedicated 5 megapixel colour camera for high‑fidelity images
• Output formats: STL, OBJ, PLY, 3MF, ASC
• Weight: Approx. 425 g with batteries
• Outdoor capability: Works under bright conditions, with Laser HD and IR Rapid modes capable of operating in high lux environments

Recommended PC configuration:

For smooth processing of high‑density scans and marker‑free laser data, a modern PC is recommended:

• OS: Windows 11 Professional (64‑bit)
• Processor: Intel Core i7‑13700H or equivalent
• Memory: 32 GB DDR5 minimum, 64 GB recommended
• Graphics: NVIDIA GeForce RTX 3060 or above with 6 GB VRAM

Compatibility & support:

The Rockit outputs industry‑standard 3D formats compatible with major CAD, modelling and 3D printing software. Optional service and support plans are available to help integrate the scanner into professional workflows.

Pro scanning tip:

When using the Einstar Rockit in IR Rapid mode for organic shapes or full‑body scans, maintain a working distance that balances detail with tracking stability. For high‑precision engineering work in Laser HD mode, ensure good ambient lighting and consider using markers or texture features to improve tracking consistency. Fully charge all batteries before wireless sessions to avoid interruptions during extended scans.
