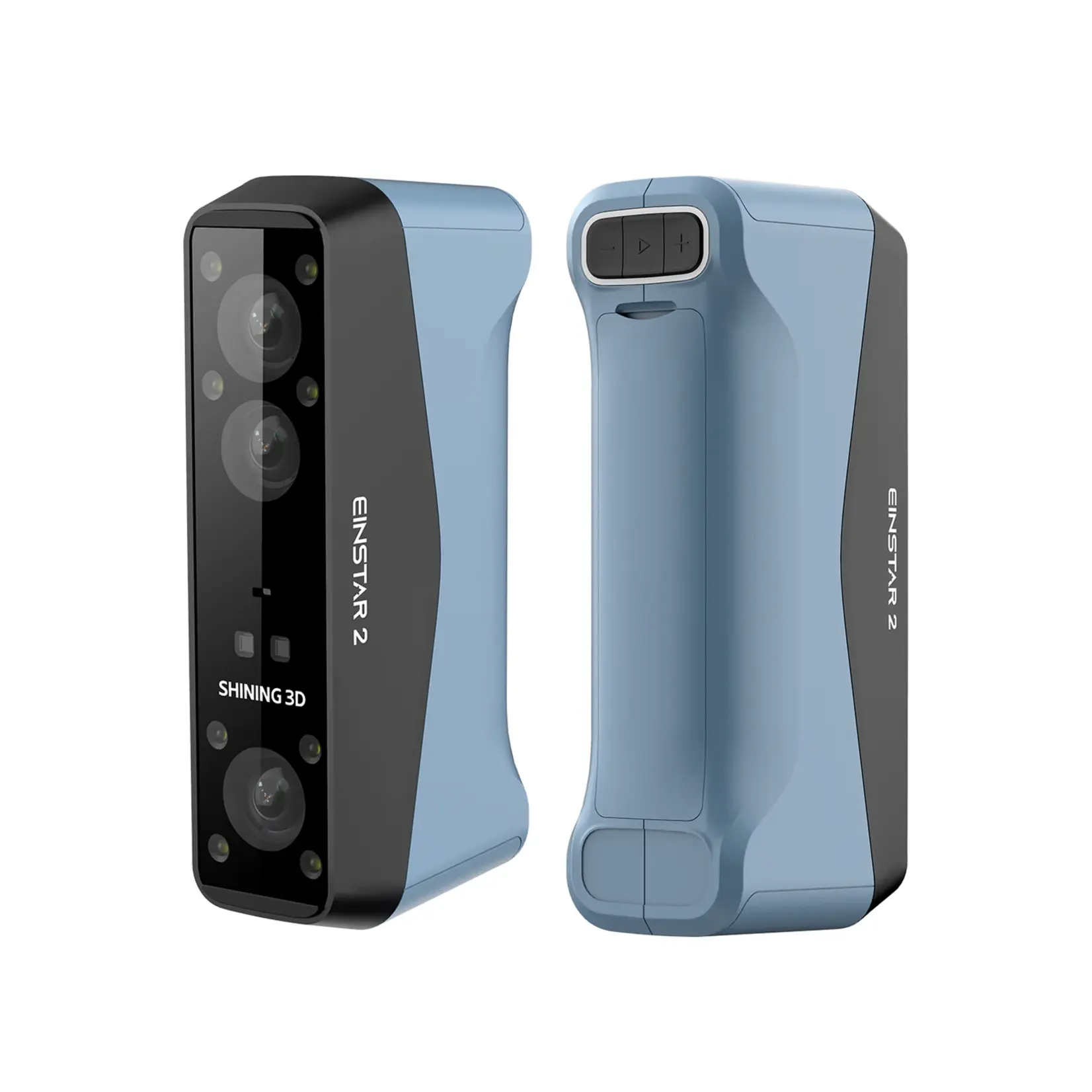

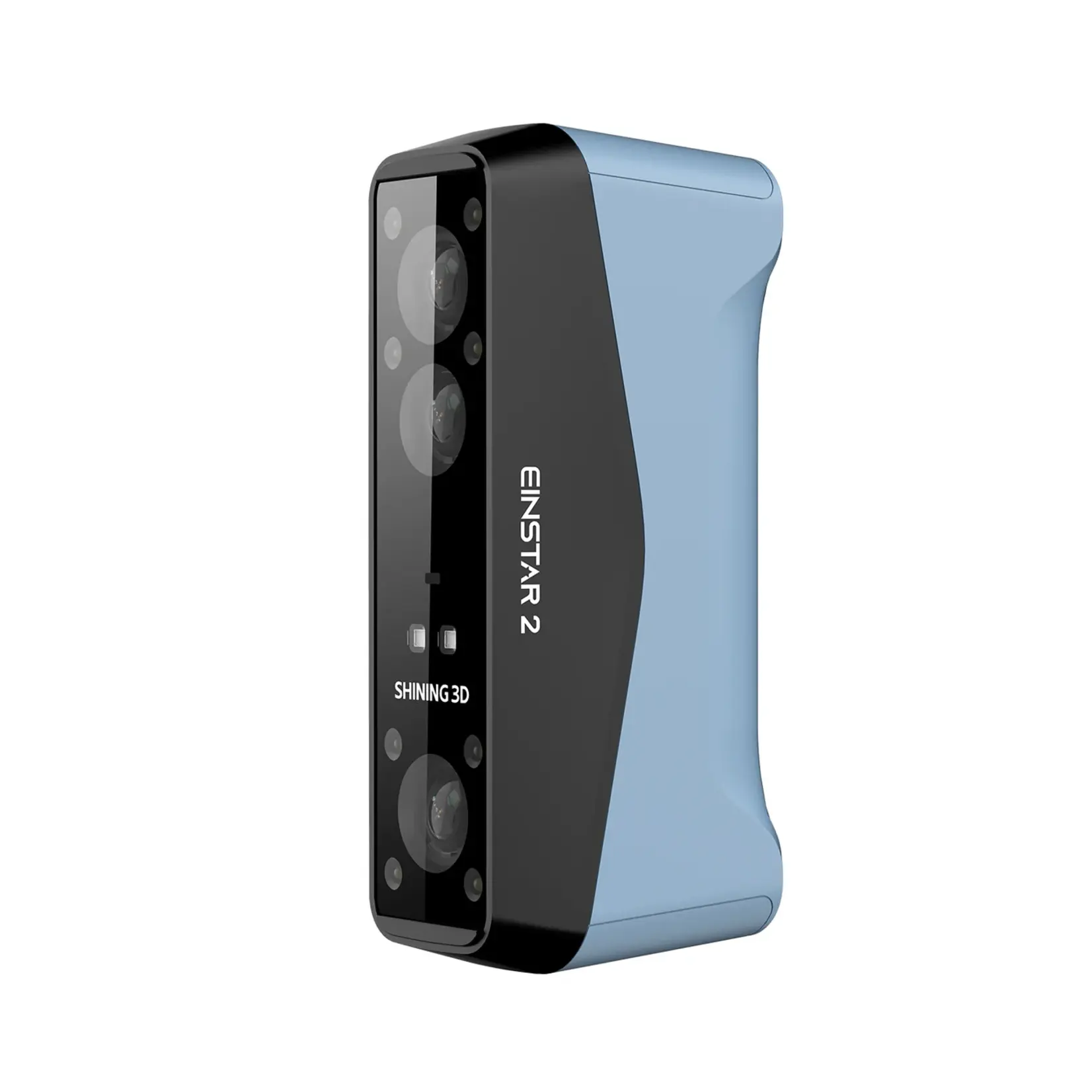

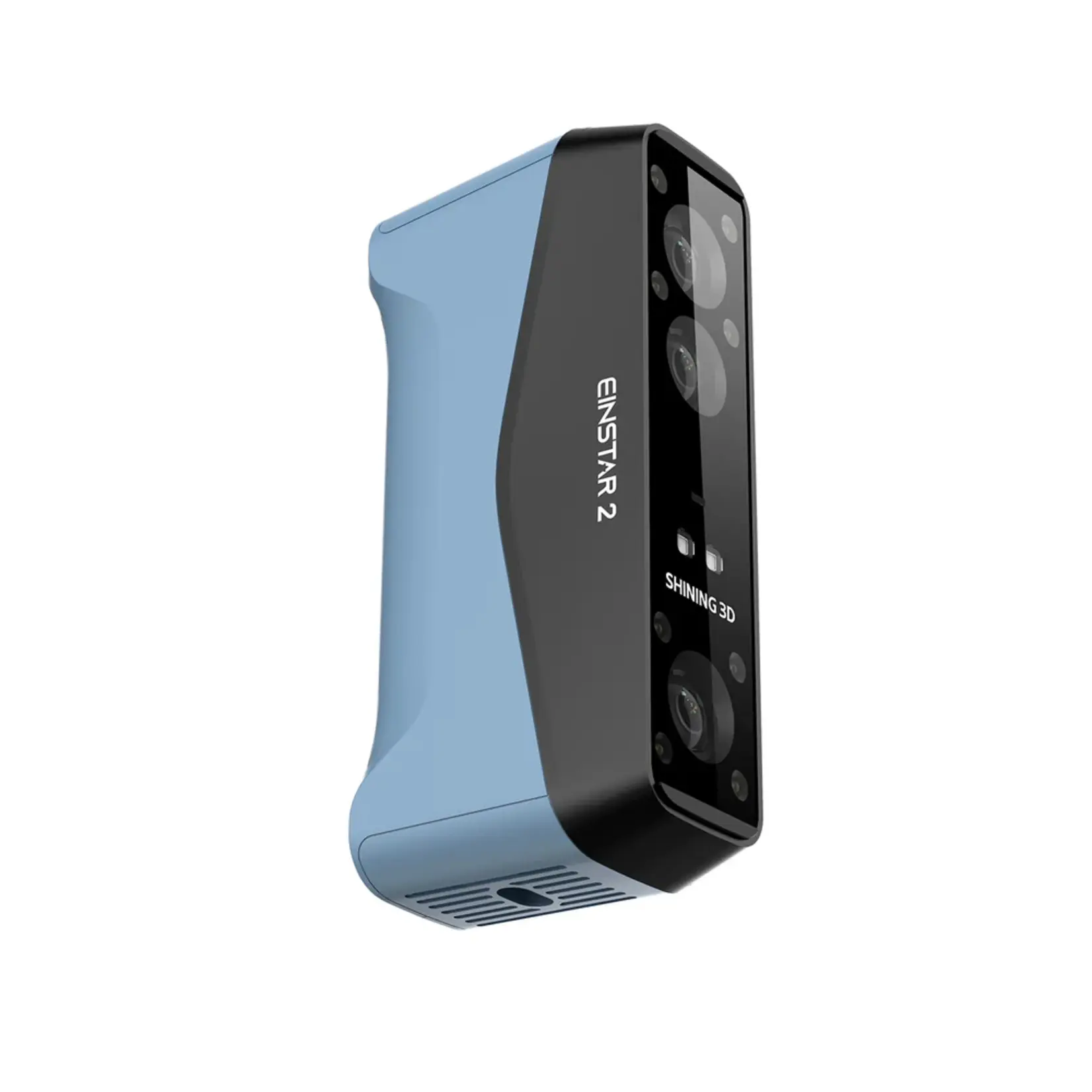

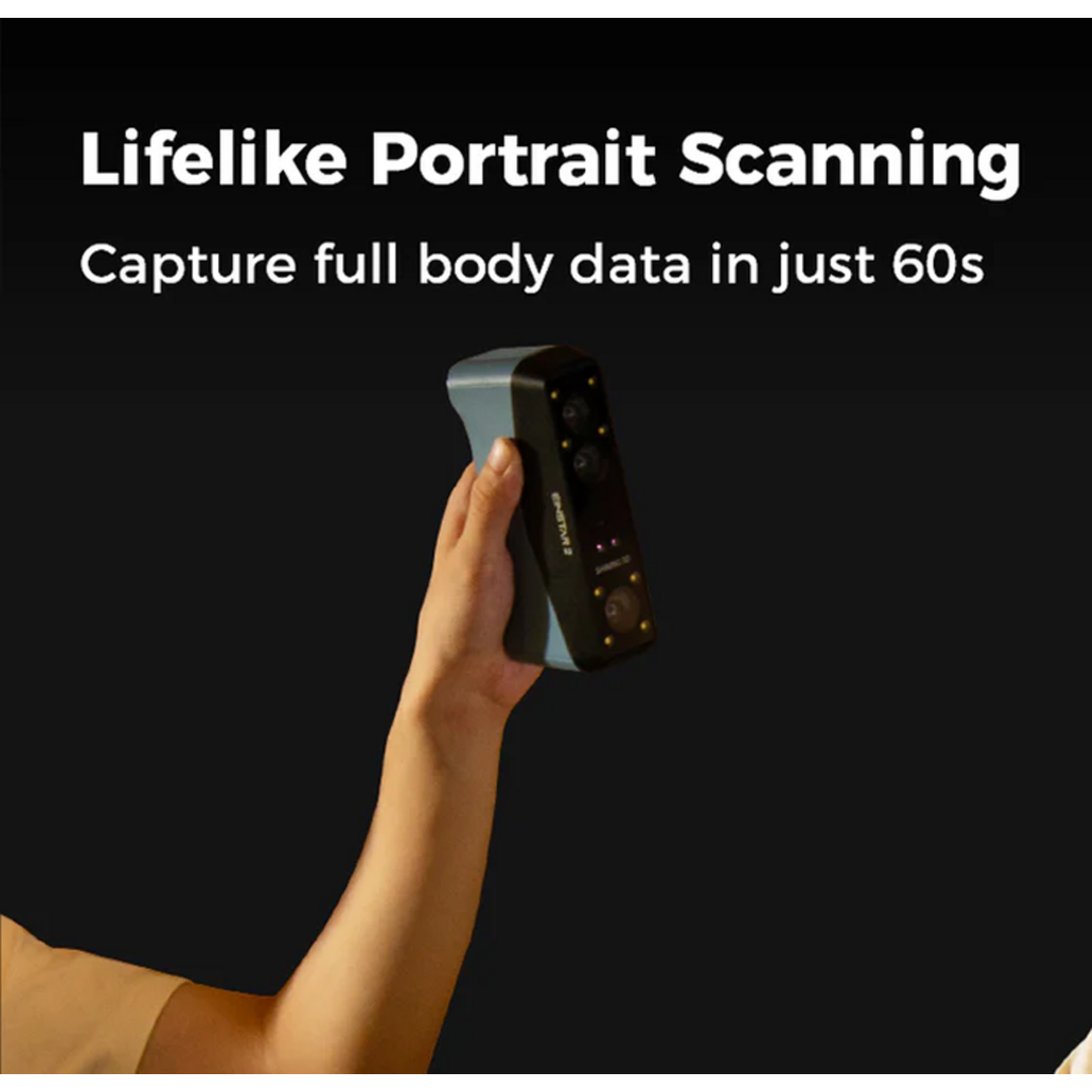

Shining 3D EinStar 2

Next‑generation wireless hybrid 3D scanner with full‑colour capture

The Einstar 2 is the evolution of portable 3D scanning, combining hybrid scanning technology with a completely wireless workflow. Designed for creators, professionals and hobbyists alike, this versatile handheld scanner integrates both parallel blue laser lines for high‑precision industrial work and an IR VCSEL source for rapid scanning of larger subjects. Whether you are digitising a small mechanical component or capturing a larger environment, the Einstar 2 delivers professional‑grade results with an intuitive user experience and no need for extensive scanning expertise.

By eliminating the dependency on cables and wall outlets, the Einstar 2 offers true mobility for indoor and outdoor projects. The integrated high‑resolution texture camera captures vibrant, lifelike colours, making it suitable for digital art, virtual reality assets and 3D printing workflows. With a scanning speed of up to 2.5 million points per second and advanced motion‑tracking algorithms, capturing high‑quality 3D data is both fast and efficient.

Key features:

• Truly wireless scanning: Built‑in Wi‑Fi and a rechargeable battery enable flexible, cable‑free operation directly to a PC or workstation.

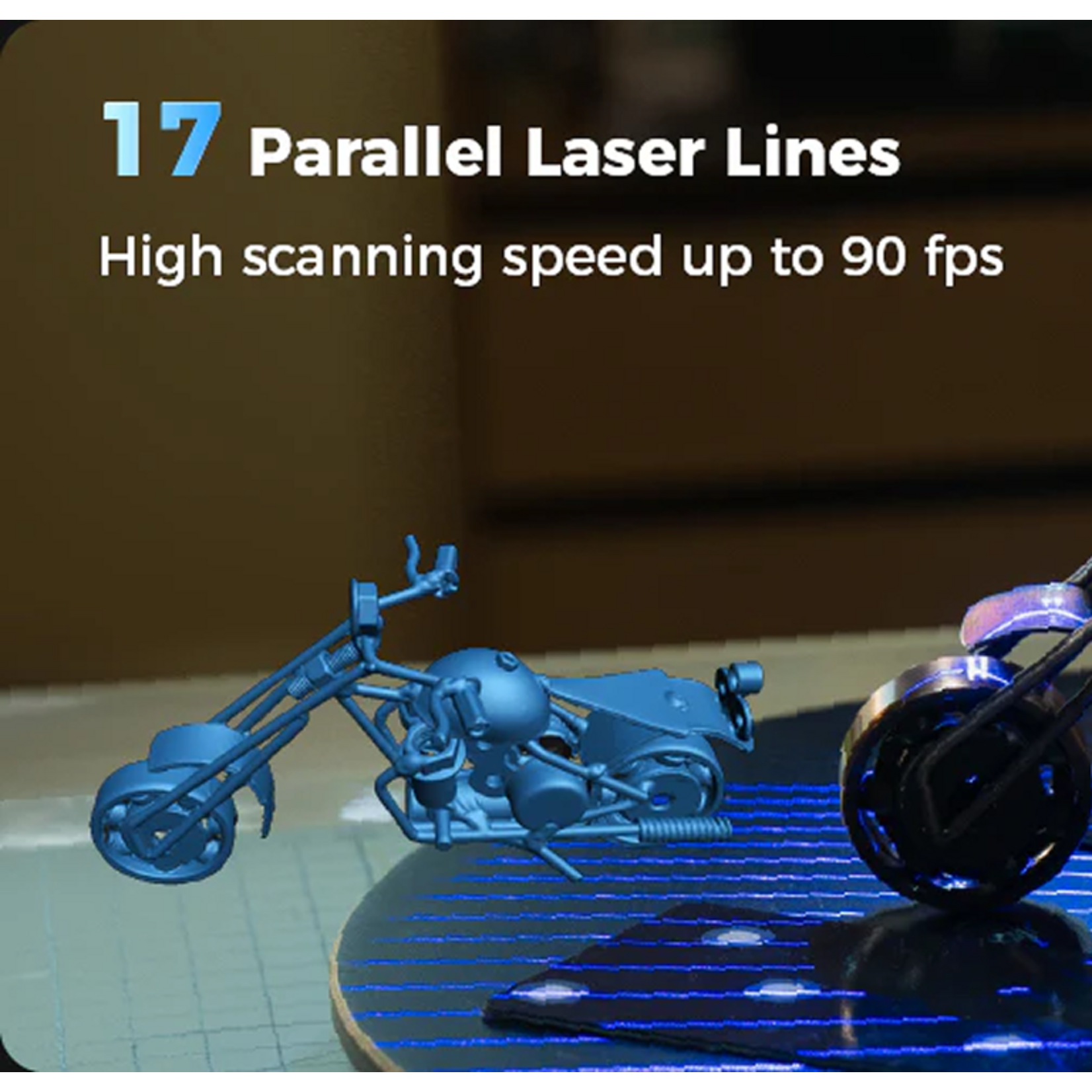

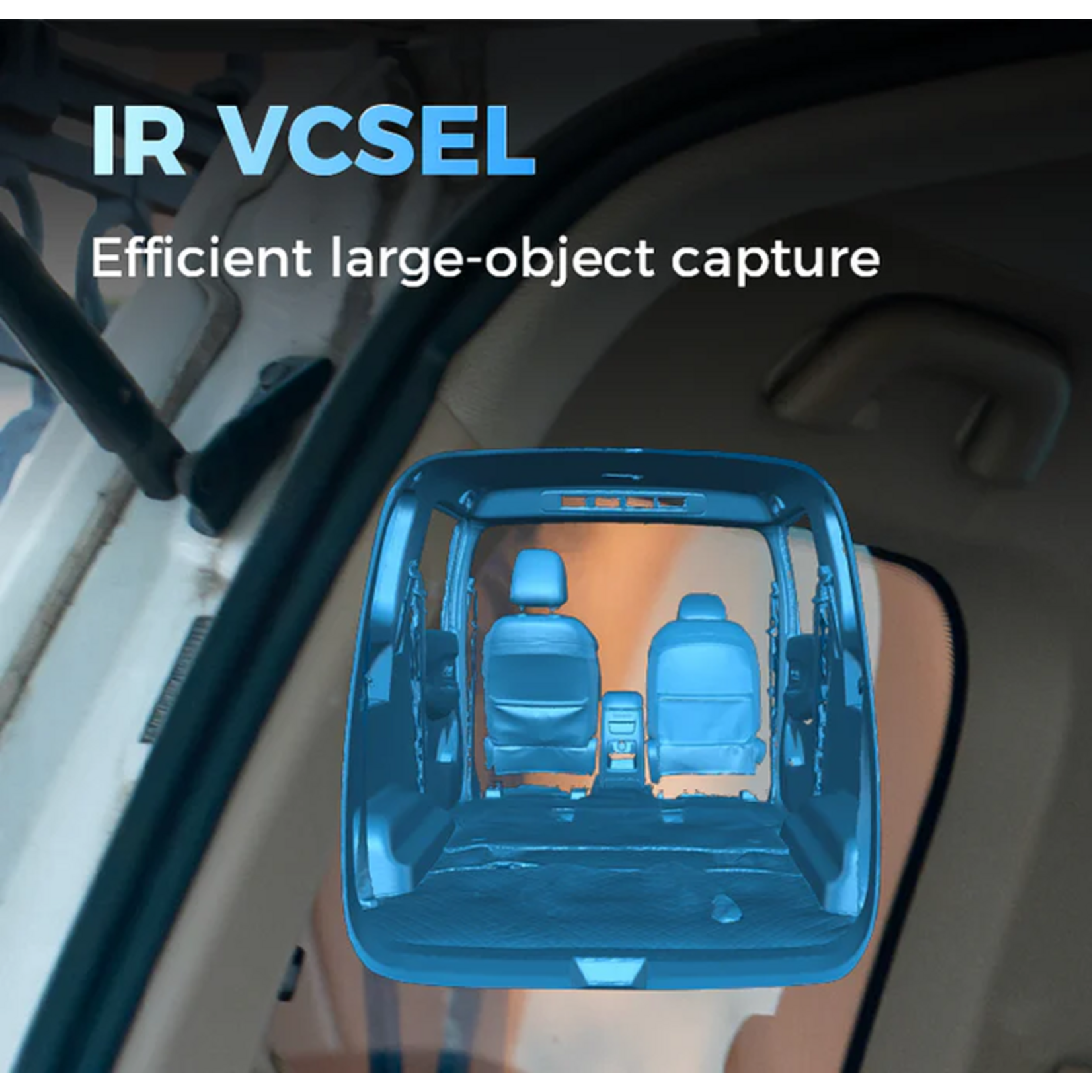

• Hybrid light source: Combines 17 parallel blue laser lines for fine detail with IR VCSEL for rapid, large‑scale capture.

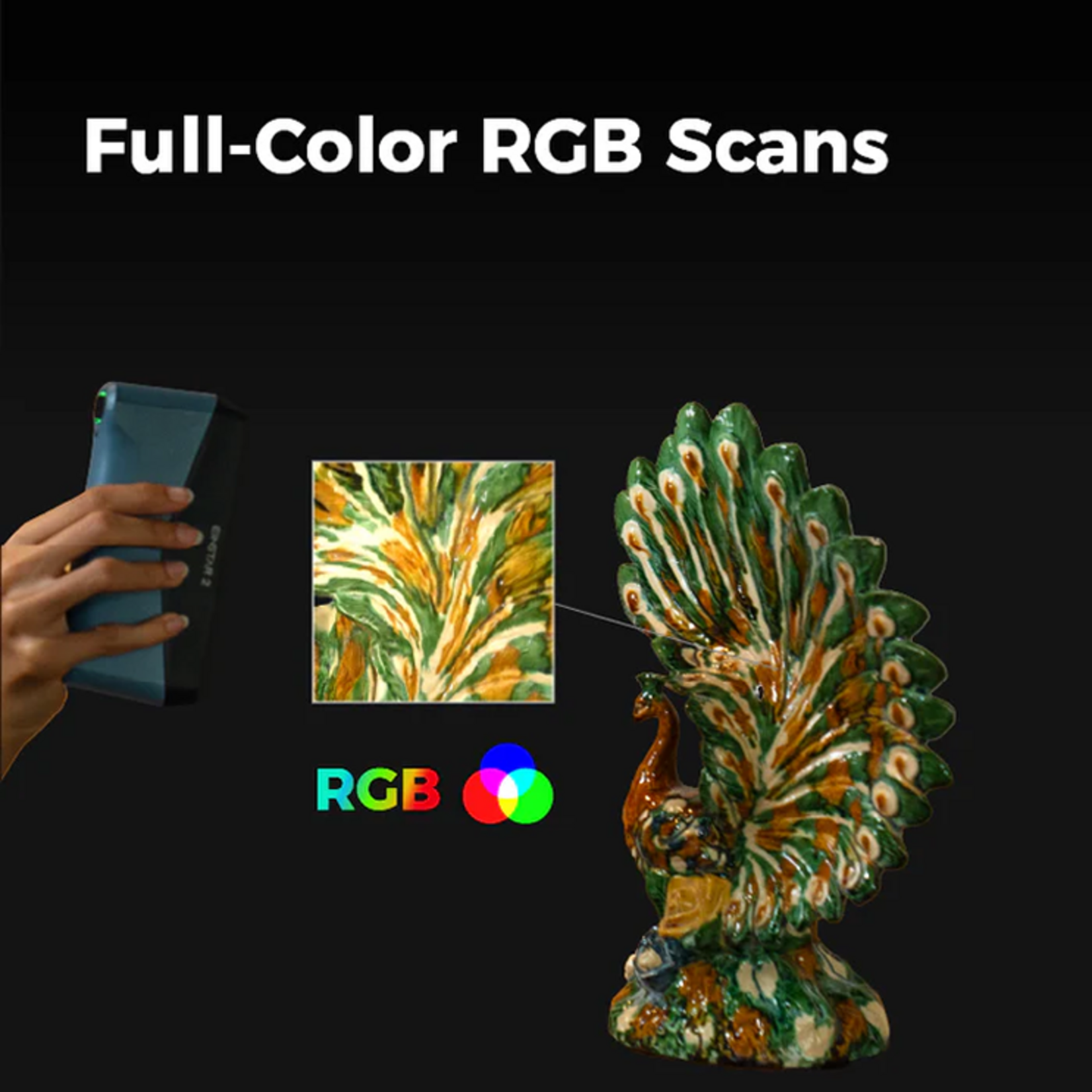

• Vibrant full‑colour capture: Dedicated texture camera (2.3 MP) creates photorealistic digital twins with realistic colour data.
• Outdoor versatility: Engineered to operate in bright environments — up to 110,000 lux in Laser HD mode and up to 70,000 lux in IR Rapid mode.
• High‑speed acquisition: Efficient data capture at up to 90 frames per second for smooth scanning sessions.

Technical specifications:

• Scan modes: Laser HD | IR Rapid.
• Accuracy: Up to 0.05 mm resolution in Laser HD mode.
• Scanning speed: Approx. 2,500,000 points/s in Laser HD; 1,440,000 points/s in IR Rapid.
• Field of view (max): 1170 × 1385 mm in IR Rapid mode.
• Minimum scan volume: 10 × 10 × 10 mm (Laser HD) | 50 × 50 × 50 mm (IR Rapid).
• Power source: 5500 mAh battery with 60 W PD 3.0 fast charging support.

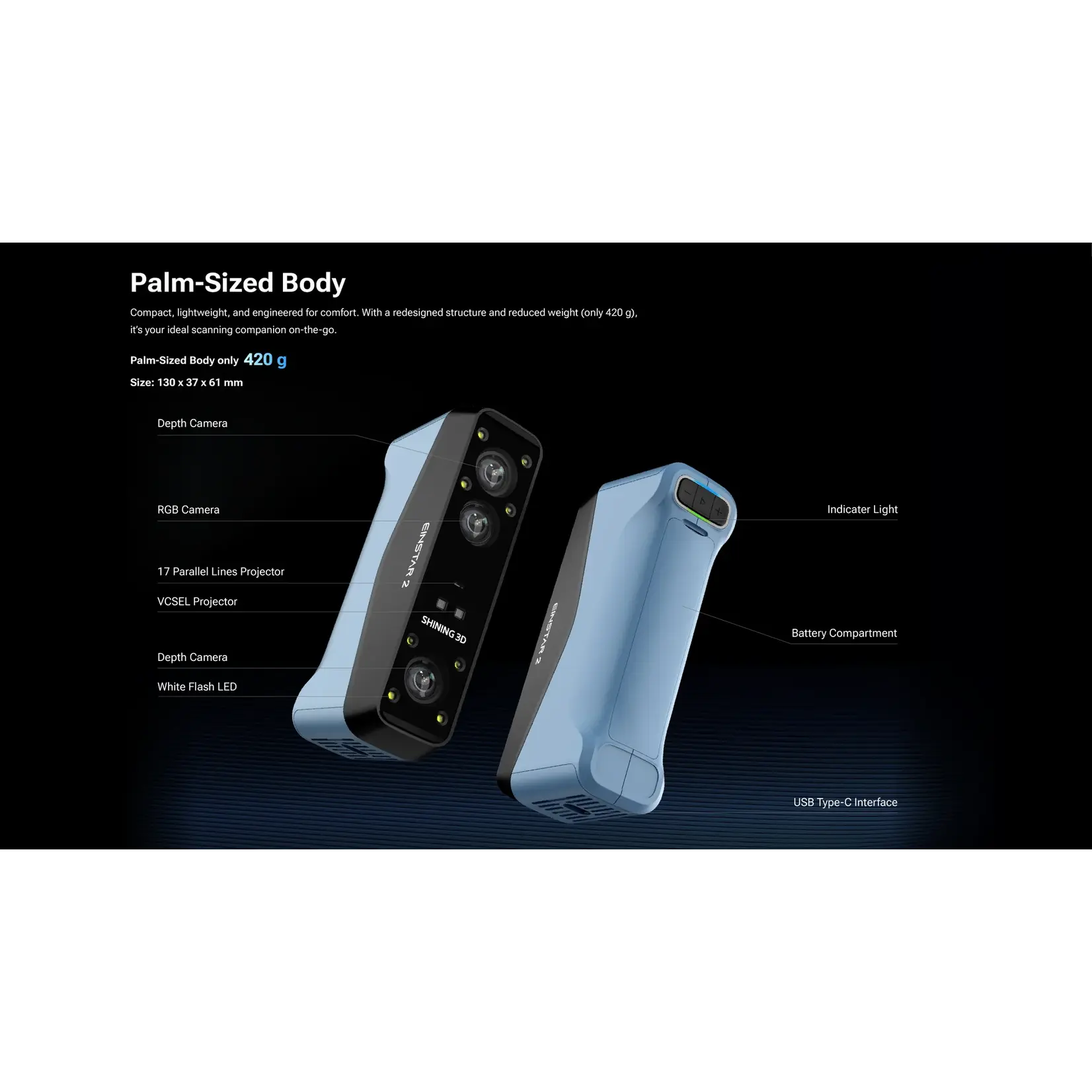

• Weight: approx. 420 g including battery.
• Output formats: STL, OBJ, PLY, 3MF, ASC.

Recommended PC configuration:

For smooth real‑time scanning at the highest data rates, the following specifications are recommended:

• OS: Windows 11 Professional (64‑bit).
• Processor: 13th Gen Intel Core i7‑13700H or above.
• Memory: 32 GB minimum, 64 GB DDR5 recommended.
• Graphics: NVIDIA GeForce RTX 3060 Laptop GPU or above with 6 GB VRAM minimum.

Maintenance tip:

To maintain the Einstar 2 in peak condition, store the device in a protective case when not in use to prevent dust build‑up on the cameras. When scanning outdoors, ensure the lenses are clean and free from fingerprints, as smudges can cause light scattering and reduce data quality. For the best full‑colour texture results, calibrate the scanner’s white balance in the EXStar software before scanning sessions. If the 5500 mAh battery is unused for extended periods, charge it to around 50 % to preserve long‑term health and capacity.
