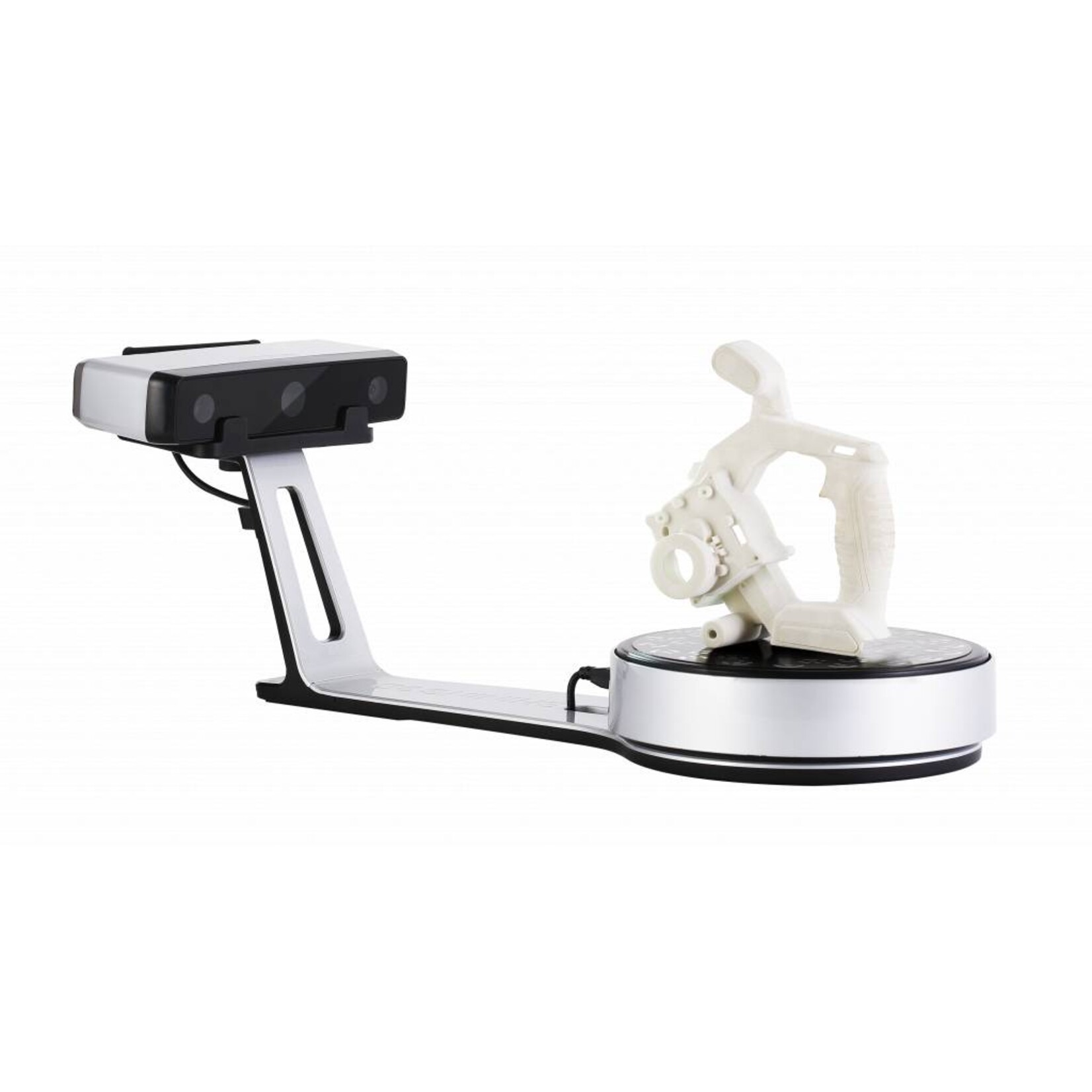

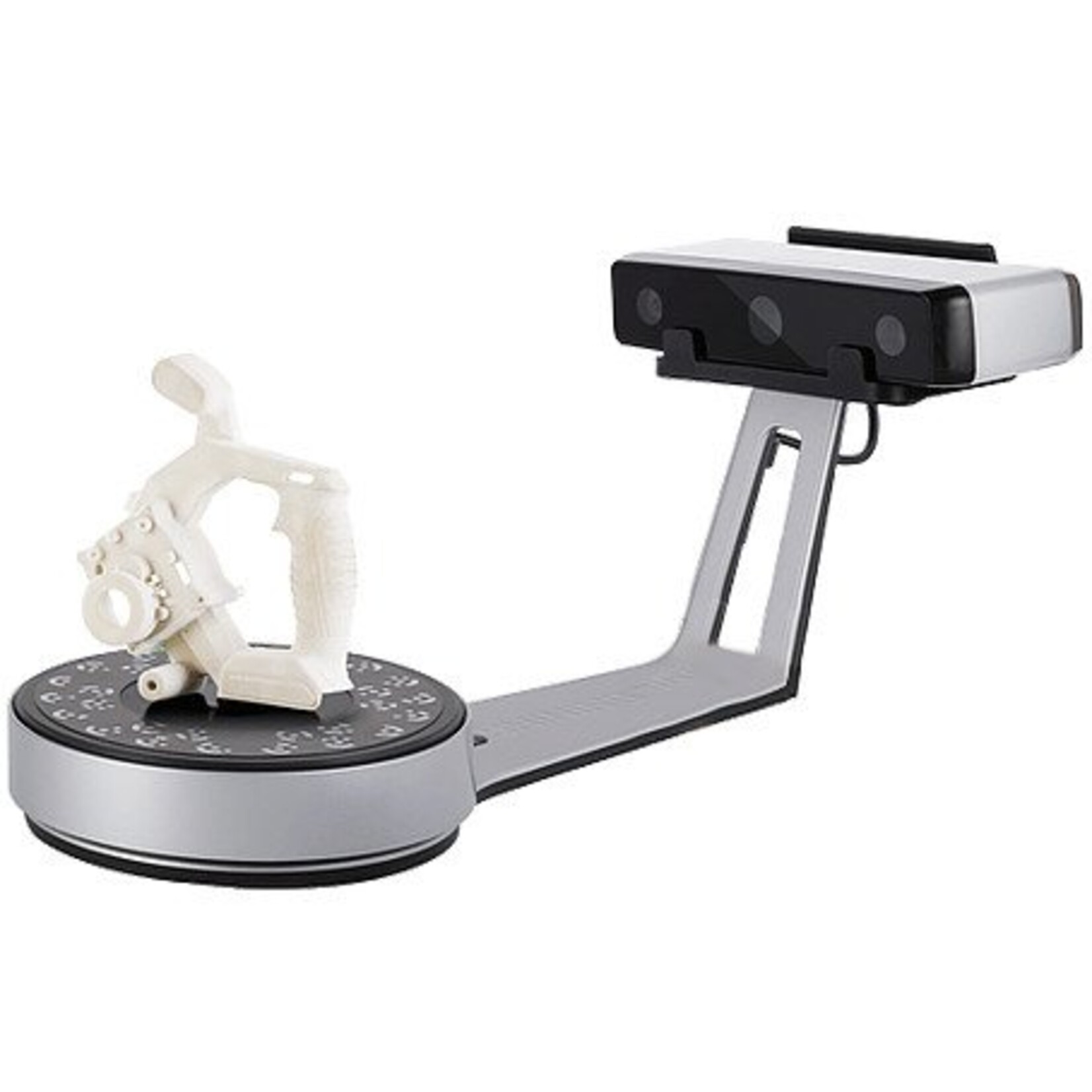

Shining 3D Einscan-SP

Main features of the Shining 3D Einscan-SP

• Scan dimensions
  • minimum 30 x 30 x 30 mm
  • fixed maximum 1200 x 1200 x 1200 mm
  • auto max 200 x 200 x 200mm
• Scan speed
  • fixed <4s
  • auto <1min

The 3D scanner has 2 scan modes.
Free mode allows you to scan larger parts with a tripod, in which case you will have to rotate them manually.

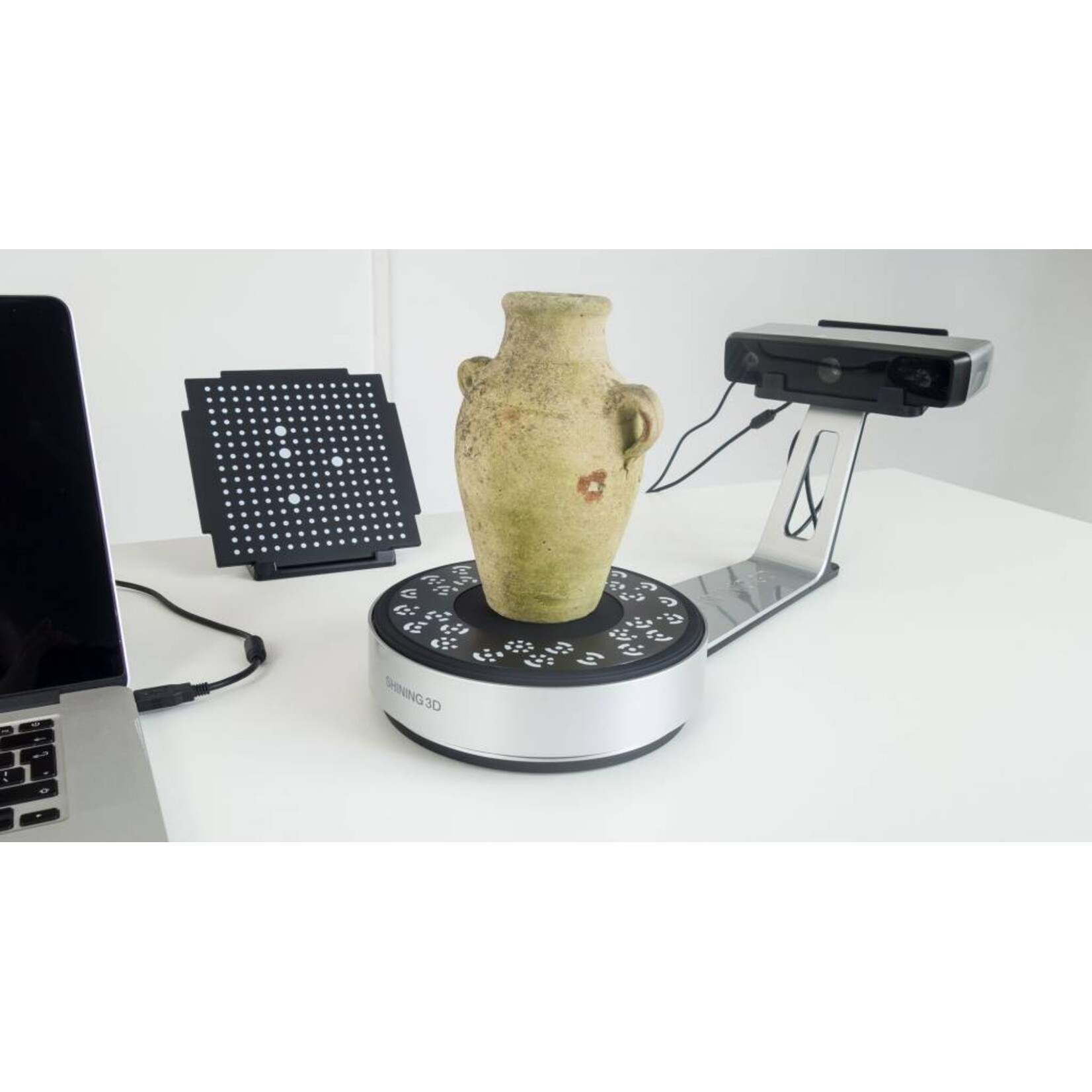

Automatic scan mode allows you to scan small parts using an integrated and automated turntable.

Usage

The EinScan-SP is a 3D scanner that smoothly converts 3D data of objects to your PC. It can scan both simple and complex shapes. The 3D scanner is easy to use, as is the software. The EinScan-SP is equipped with a texture scan function, which allows you to scan the full-colour data of an object.
The EinScan-SP delivers water-tight 3D data that is immediately printable and can be used by technicians.

Positive and negative points of the Einscan SP

• + Turntable markers help compose scans better
• + Scan quality up to 0.05mm accuracy
• + Automatic turning system
• + Easy to use
• + Automatic waterproofing for 3D printing
• - Some areas require spraying (as with all 3D scanners)

What's in the box

• Shining 3D Einscan-SP
• Turntable
• Tripod
• Manual
• Warranty

Our experience

It is a scanner that can scan very accurately. The scanner is ideal for small parts using the optional tripod.
