Brand: Formlabs
Product image slideshow Items

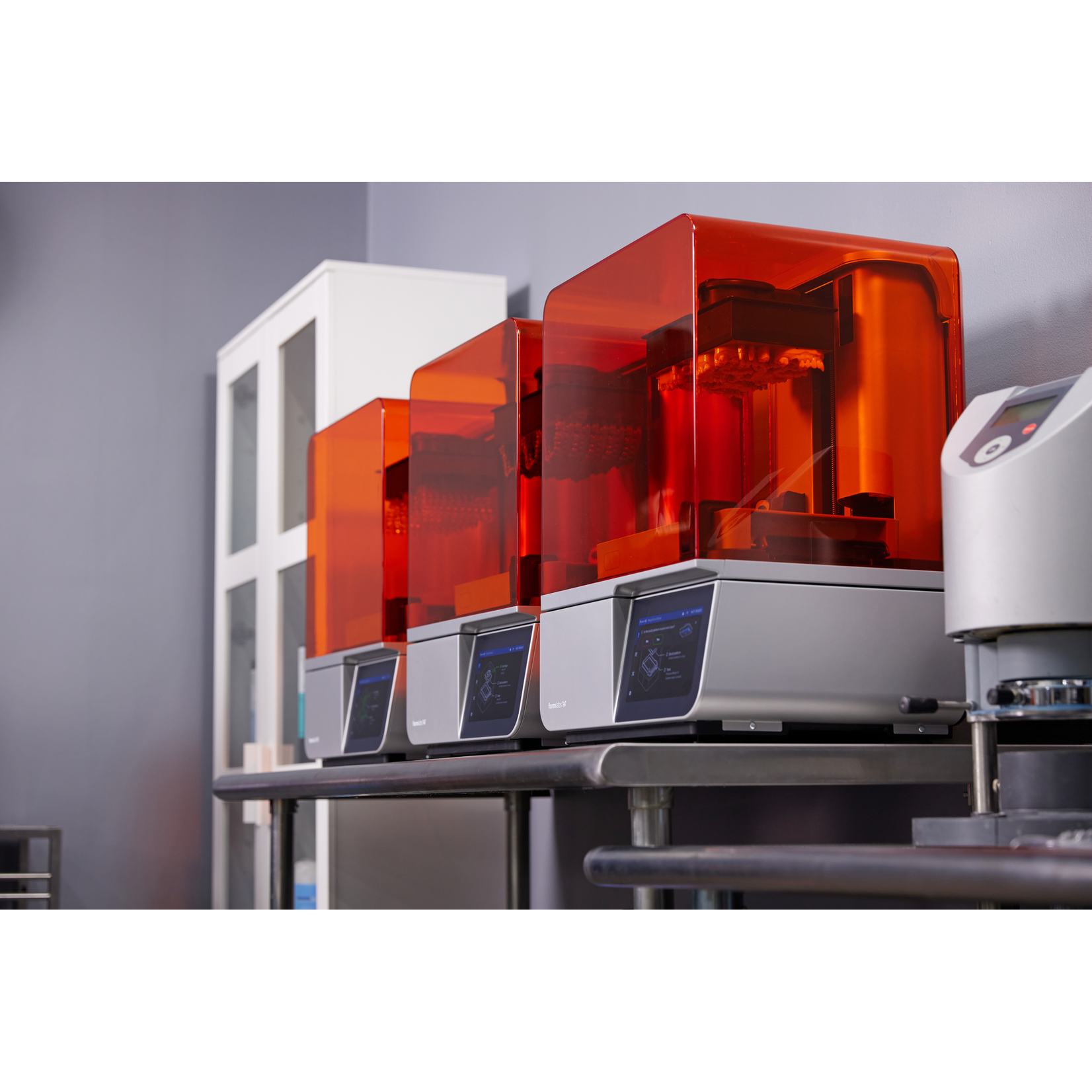

The Formlabs Form 4B Complete Package includes everything you need for professional 3D printing with resin.
Permanently out of stock

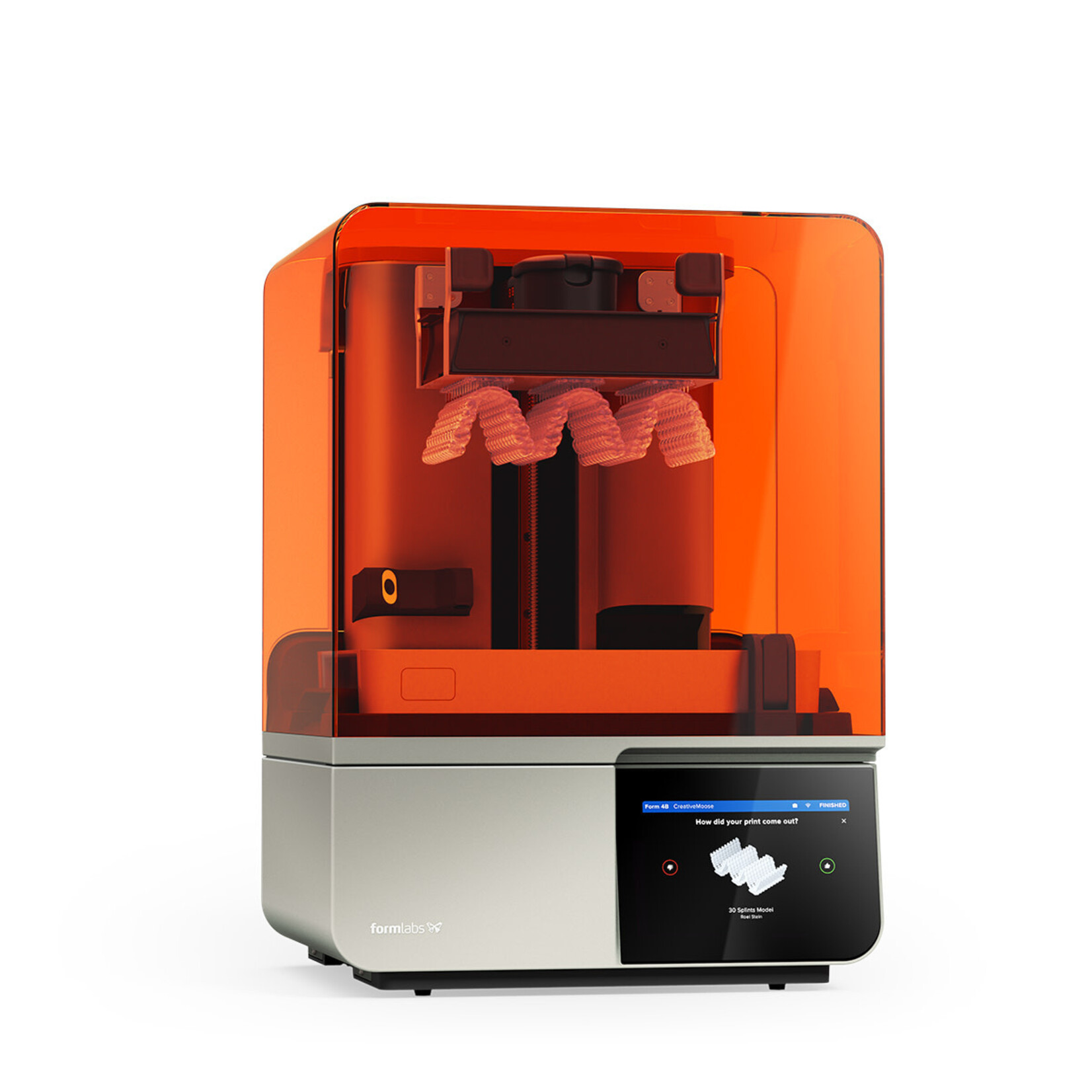

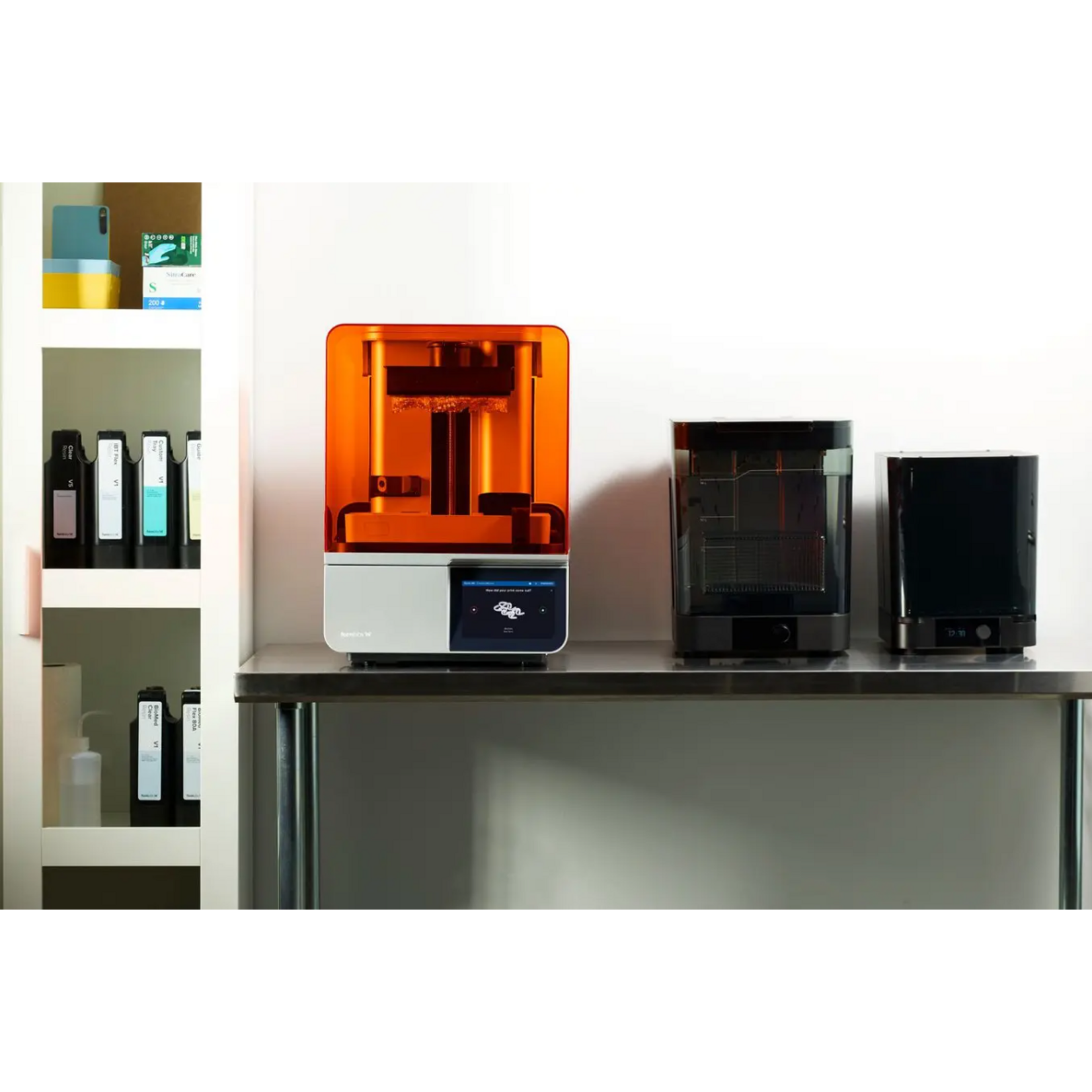

The Form 4 Complete Package is a comprehensive solution with everything you need to get started. This bundle includes the latest generation of Formlabs hardware and automated post-processing units for a professional, seamless workflow.
Most prints ready in less than 2 hours (with a maximum print size of 200 × 125 × 210 mm)
Industry-leading resins for every problem
Anyone can learn it in 15 minutes
Unmatched printing success rate
Competes with injection-moulded parts
Highly collimated light and 50 µm pixel size with pre-adjusted anti-aliasing for sub-pixel resolution
Lower removal forces, light support points and 50 µm pixel size with preset anti-aliasing
±0.15% XY dimensional tolerances so assemblies always fit perfectly
Validated print settings
Formlabs optimisation engineers tested hundreds of printed parts to ensure every material meets the most reliable standards right out of the box.
Intelligent control systems
Six control systems precisely measure and maintain the temperature, resin level, print forces, and print status in your printer.
Long-lasting consumables
Robust hardware designed for years of use. Estimated lifespan: Resin tank suitable for >75,000 layers for all materials. Light processing unit rated for >750,000 layers.
Remote Monitoring
Monitor your prints and manage your printers from anywhere with an integrated camera and the free Formlabs dashboard software.
The Backlight Unit generates an even, area-based projection of ultra-bright light using 60 LEDs and collimating lenses. It cures resin quickly and precisely anywhere on the build platform.
The Light Processing Unit 4 (LPU 4) precisely masks the light into a printed layer. It is durable, resistant to accidental damage, and easy to replace.
A patented micro-textured optical film allows airflow between the resin tank and the LPU. This significantly reduces peel forces for lightning-fast speeds.

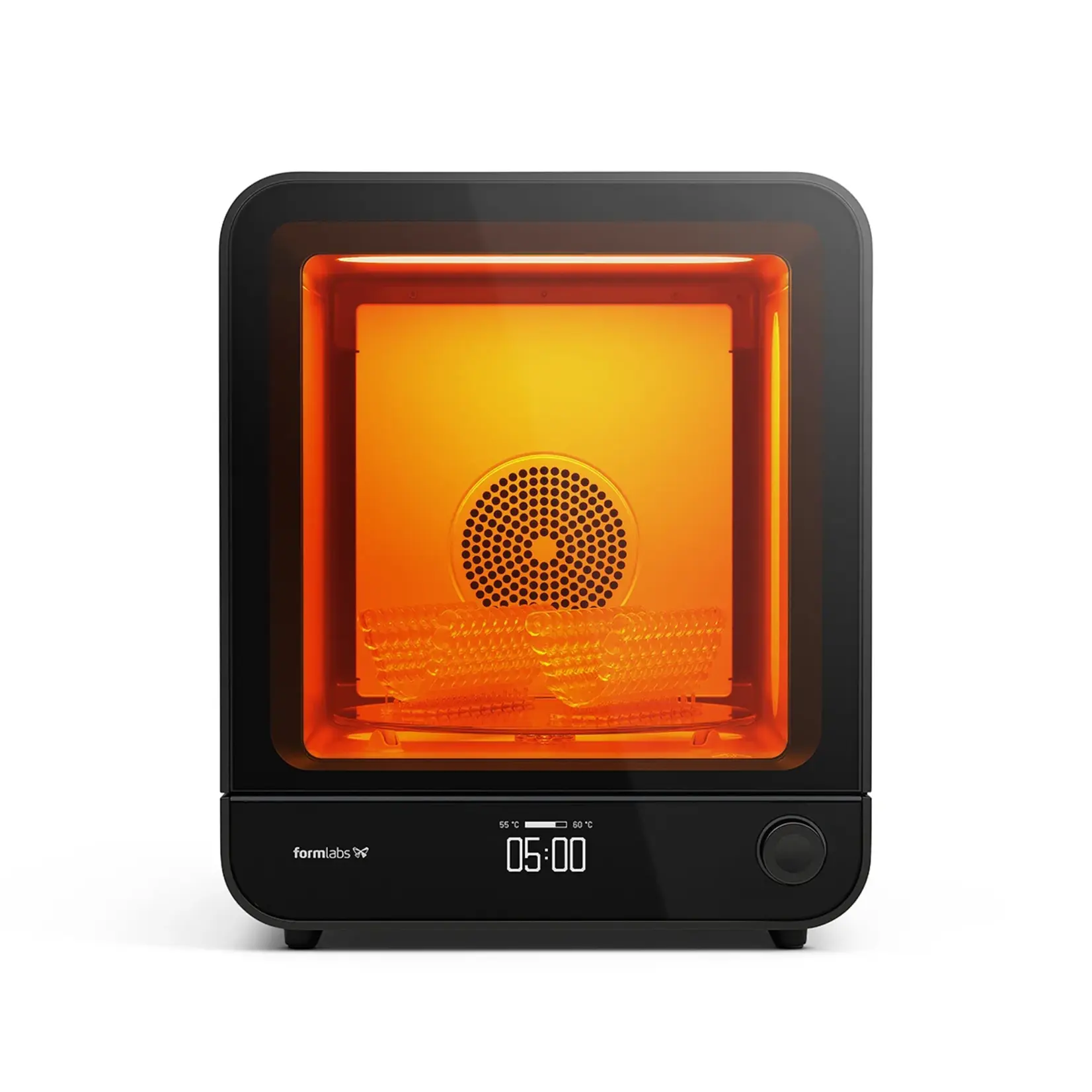

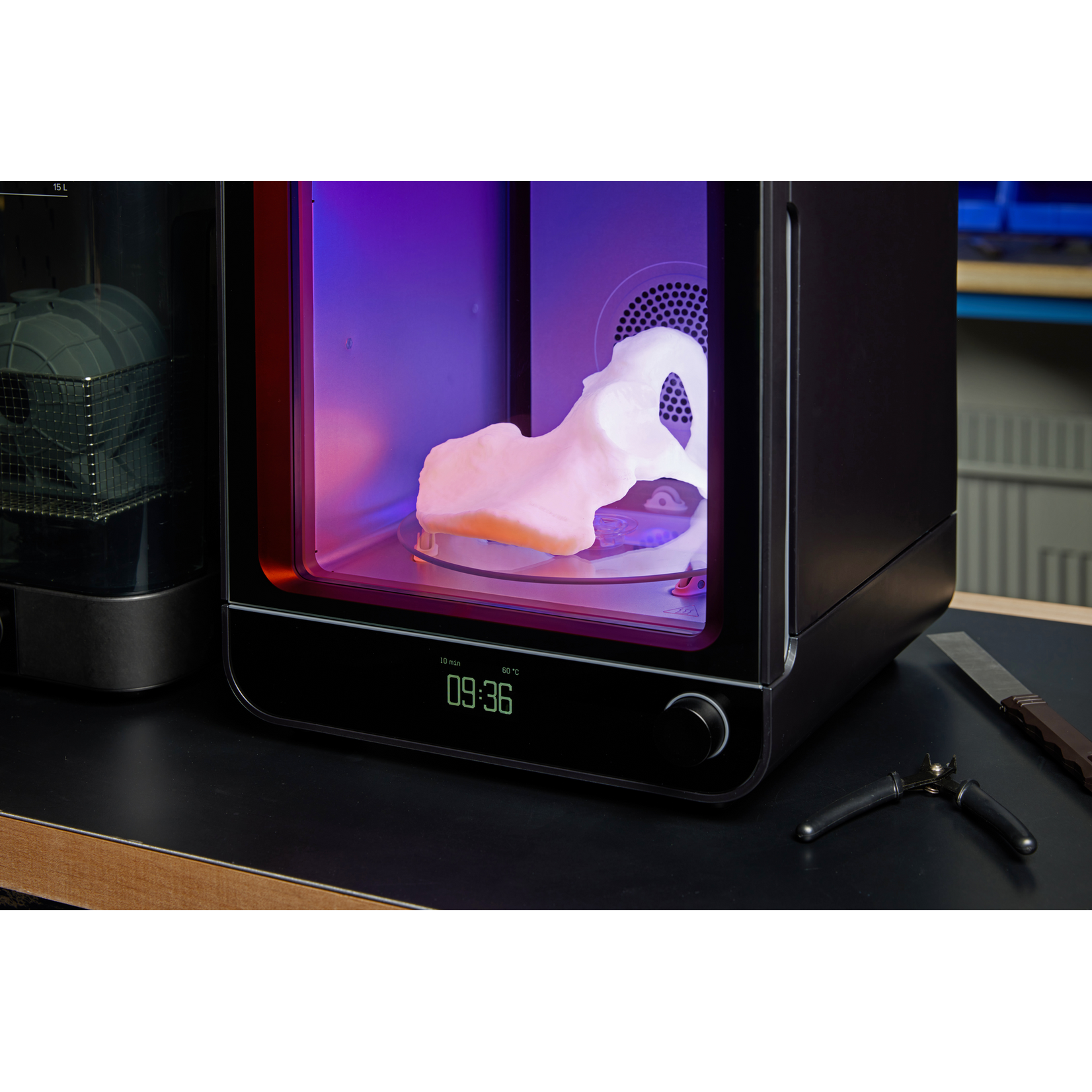

Post-curing maximises material properties for stereolithographic prints, ensuring improved strength and performance. Form Cure combines precise temperature control and 405 nm light for consistent post-cure results.

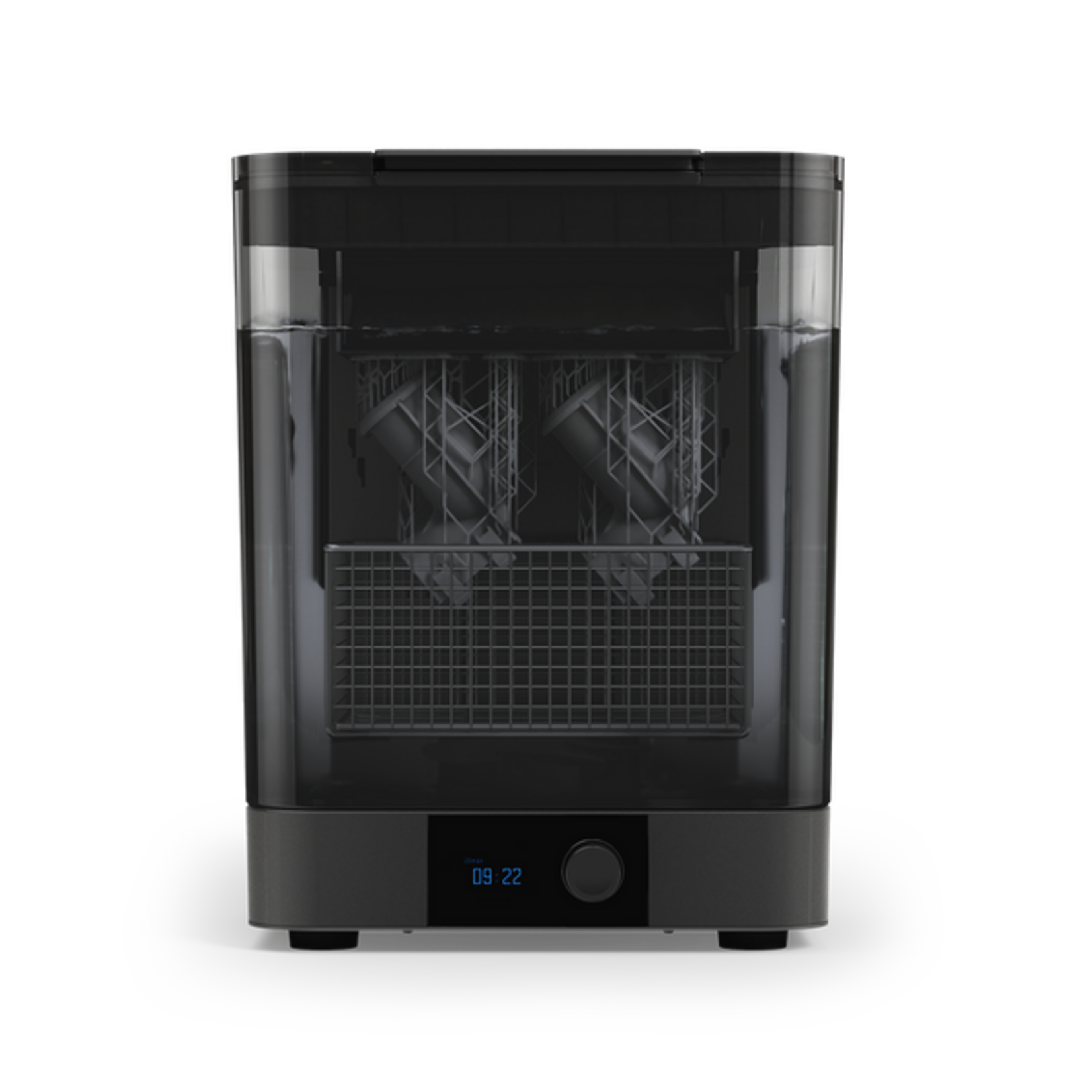

Form Wash automatically cleans printed parts efficiently. It holds parts directly on the Build Platform for a mess-free transfer. Once the wash programme is complete, it automatically lifts the parts out of the solvent to air dry.
| Build volume (LxWxH): | 200 × 125 × 210 mm |
|---|---|
| Desktop dimensions (LxWxH): | 398 × 367 × 554 mm |
| Weight: | 18.3 kg |
| Pre-assembled: | Yes |
| Light source: | Custom Light Processing Unit with 60 LEDs, 405 nm wavelength, 16 mW/cm² optical intensity |
| Printing technology: | Masked Stereolithography (MSLA) |
| Internal Temperature: | Auto-heats resin to 25–45 °C, depending on material |
| XY resolution: | 50 microns |
| Layer thickness: | 25 - 300 microns (Layer thickness availability varies by material) |

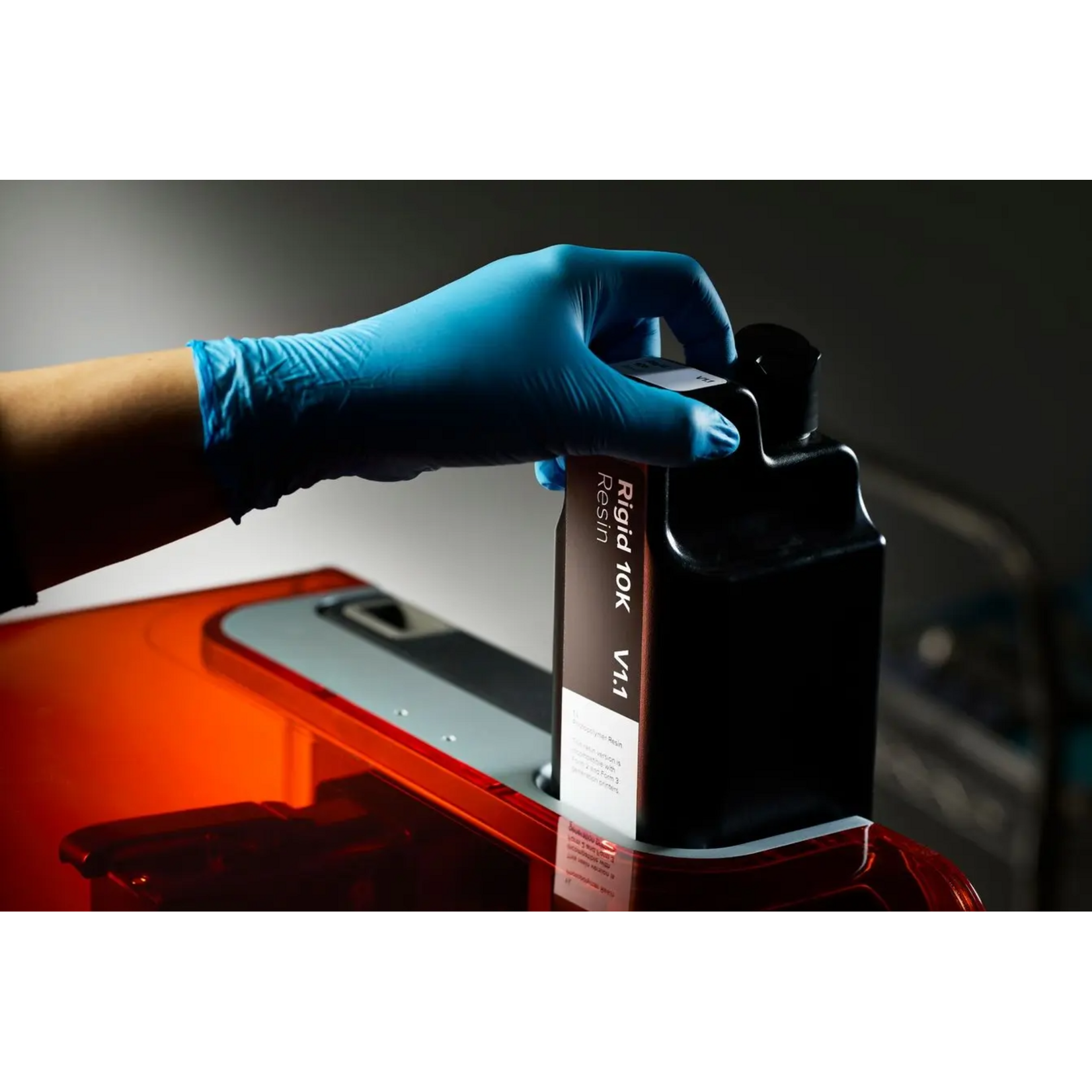

| Resin cartridge type: | Next-generation resin cartridge 5-10x faster filling 63% less waste 30% less shelf space |
| Resin cartridges: | 1 |
| Resin refill system: | Automatic |
| Calibration: | Automatic |
| LCD-screen: | Yes, touchscreen |
| Connectivity: | USB / USB stick / Wifi |
| Supported operating systems: | Windows 10 (64-bit) and up, Mac OS 13 and up |
| Software: | PreForm (Slicer), Dashboard (Cloud Management) |
| File types: | STL, OBJ, and 3MF file input / FORM file output |
| Warranty: | 24 months (private) - 12 months (professional) |

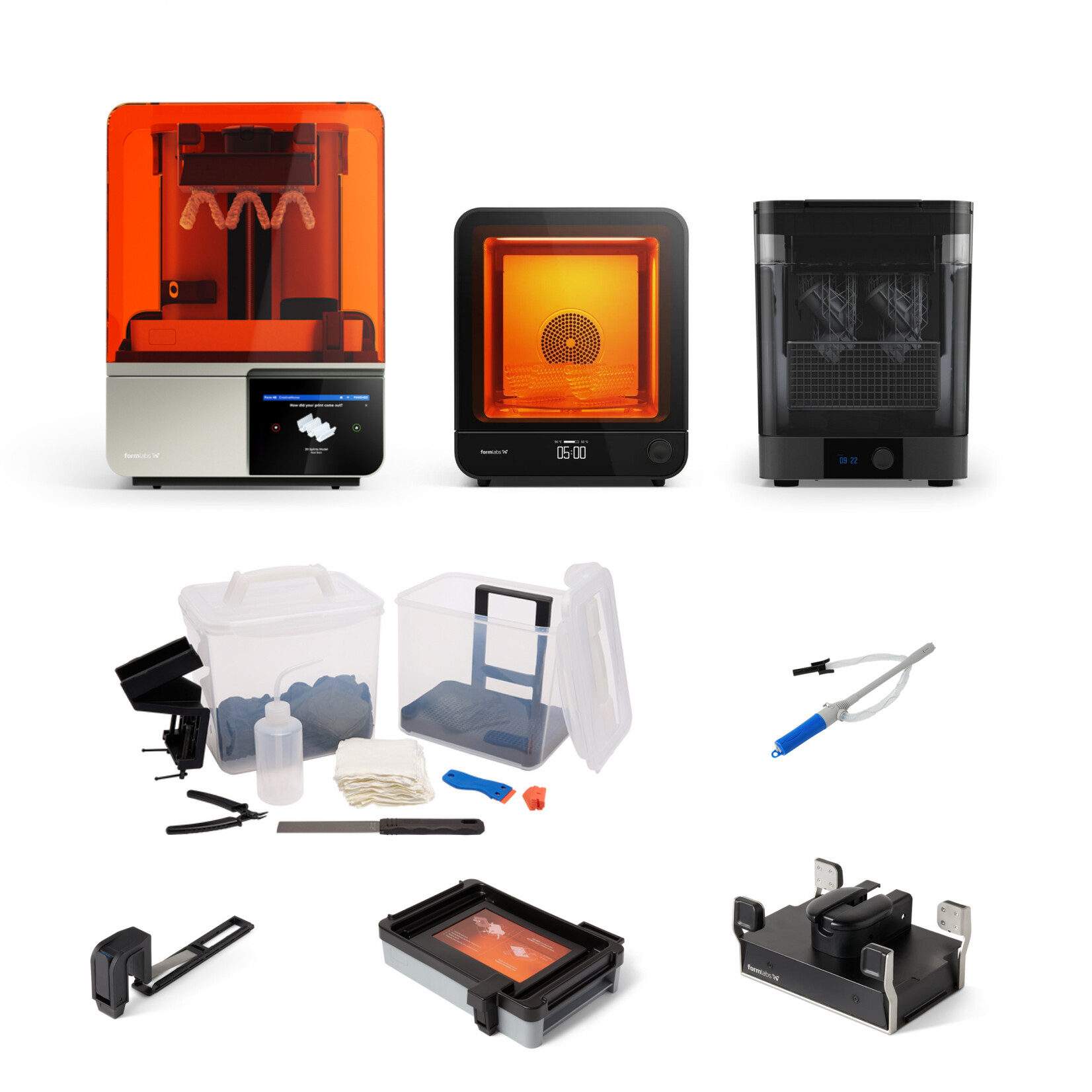

| Package contents: | Form 4 3D Printer, Form 4 Resin Tank, Form 4 Mixer, Form 4 Flex Build Platform, Form 4 Finish Kit, PreForm Software, Form Cure (2nd Gen), Form Wash (2nd Gen), Solvent pump, Form 4 Pro Service Plan 1 Year (1 yr PSP) |
