Brand: Shining 3D
Product image slideshow Items

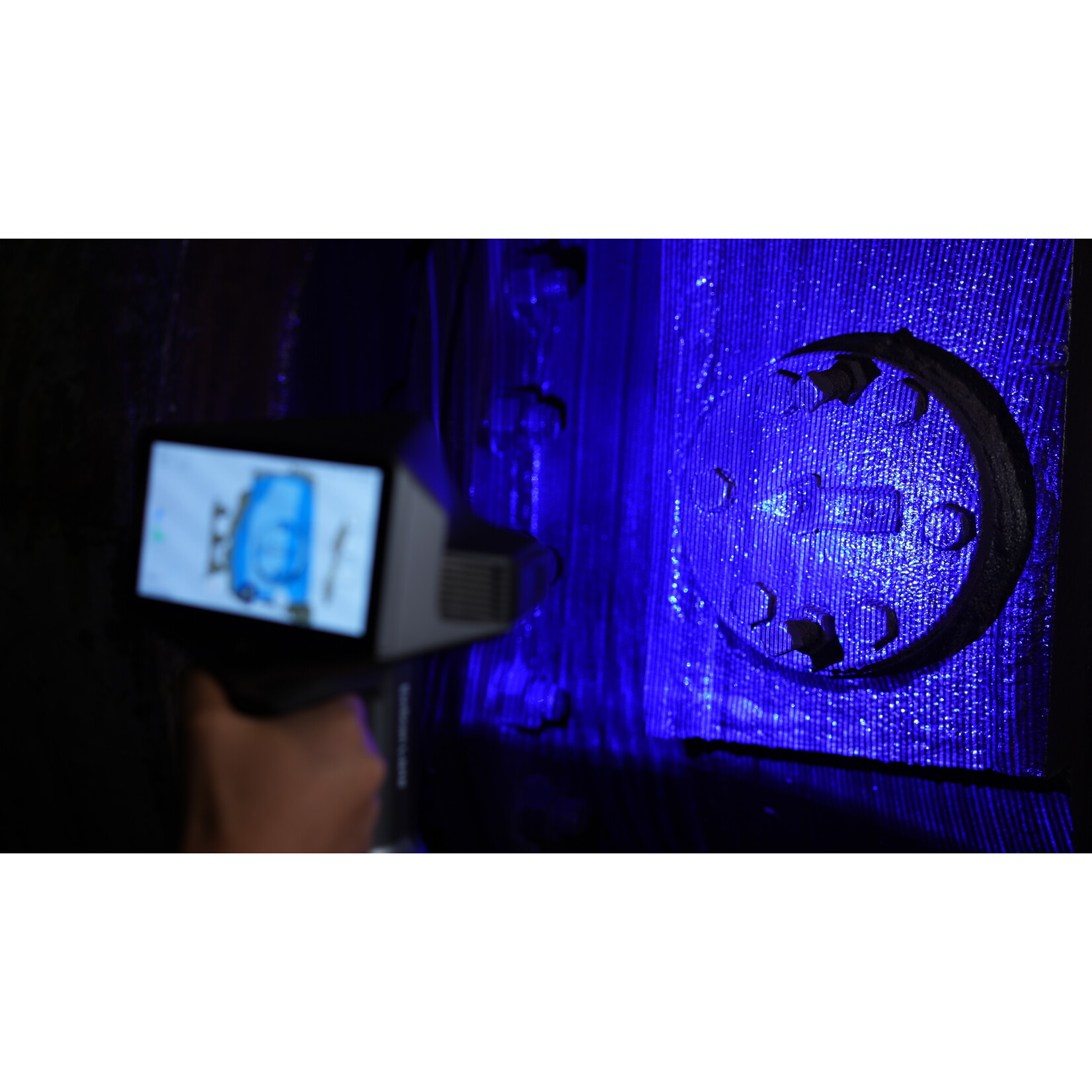

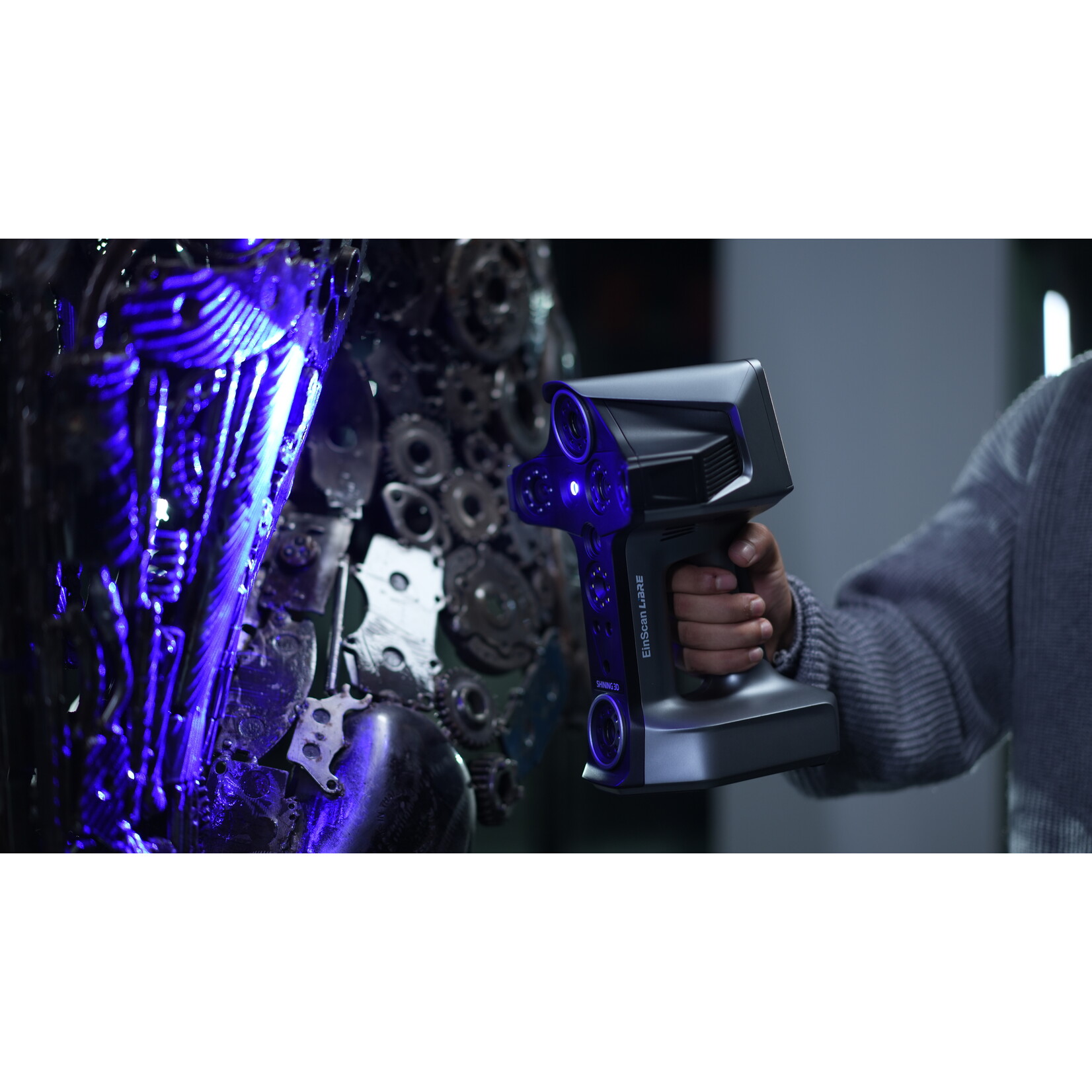

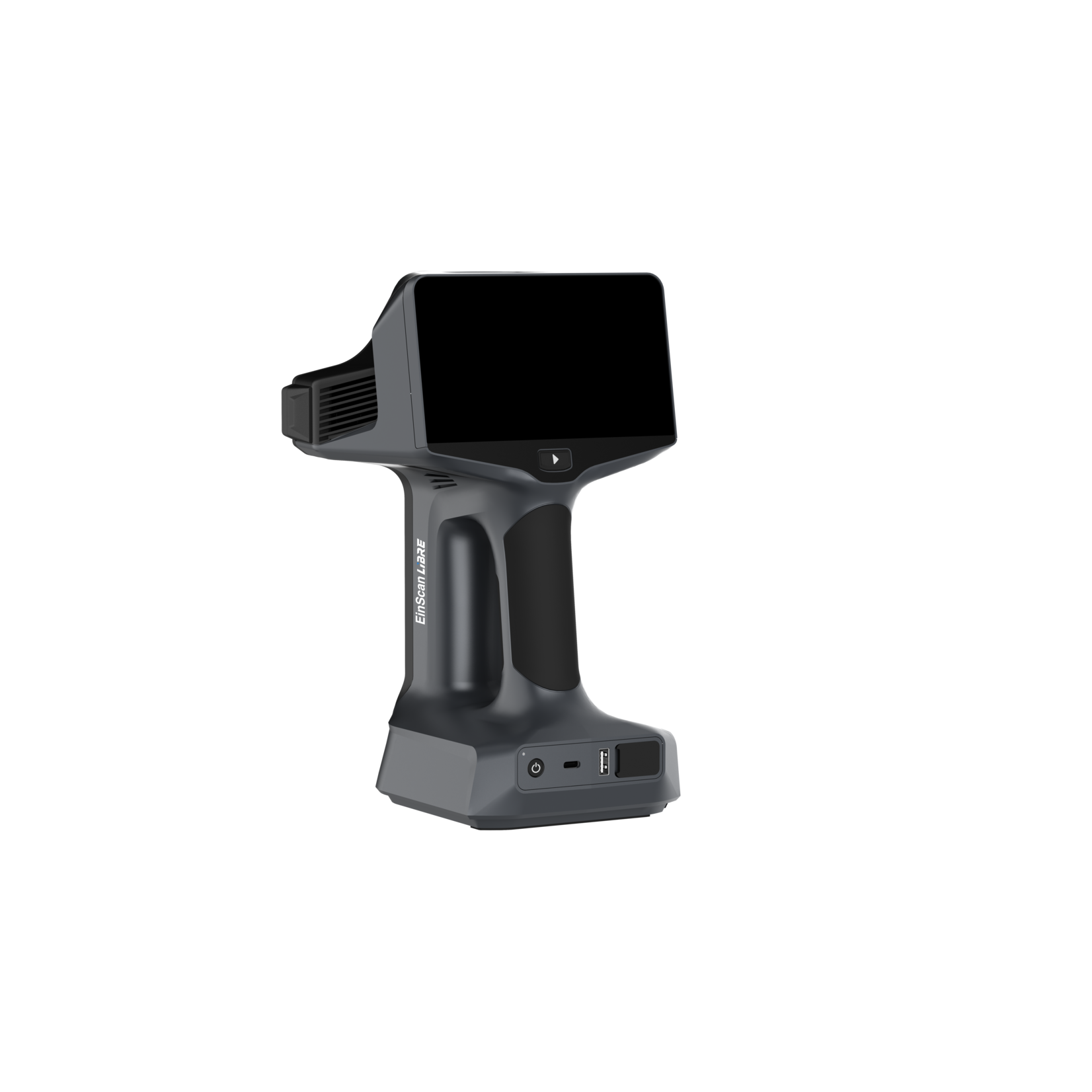

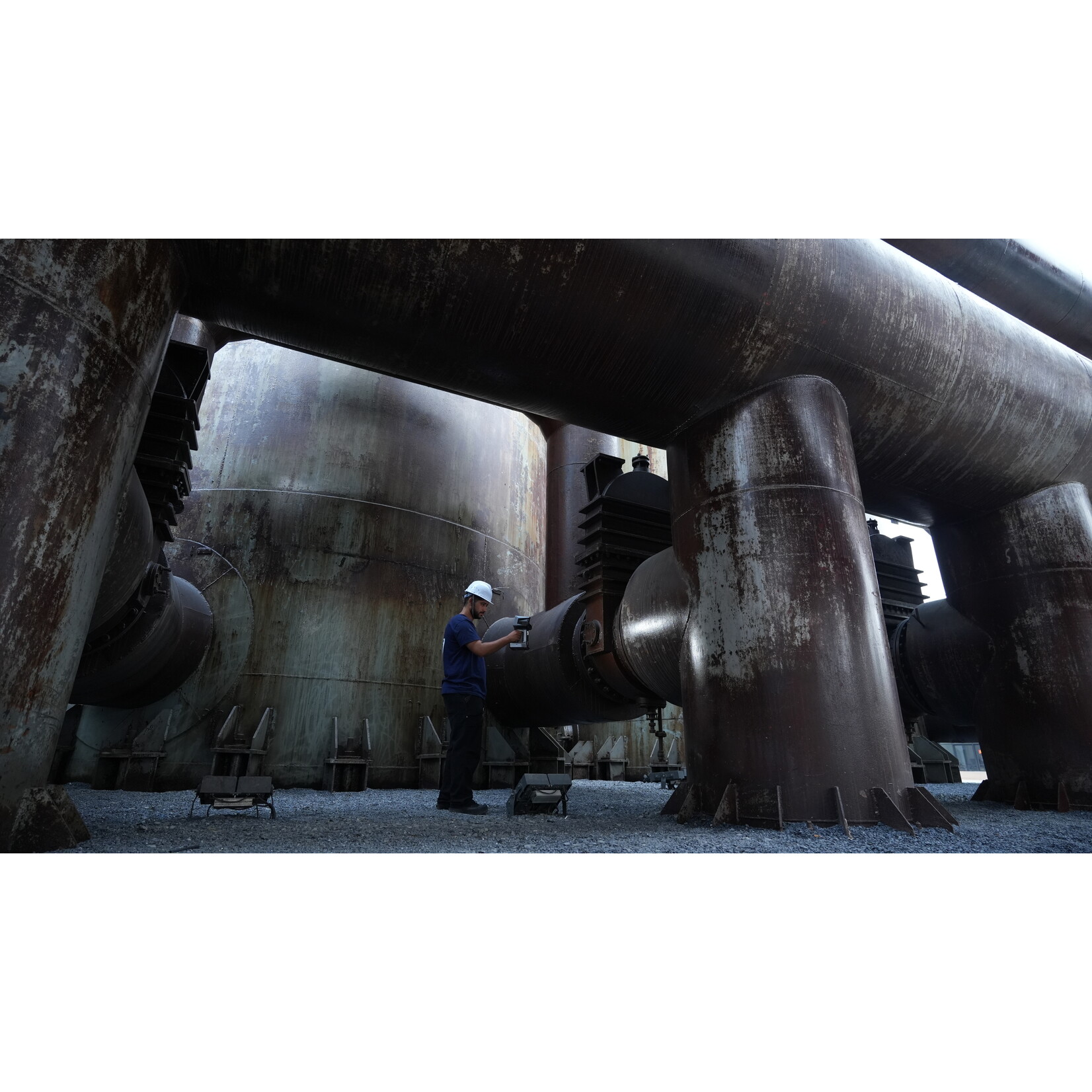

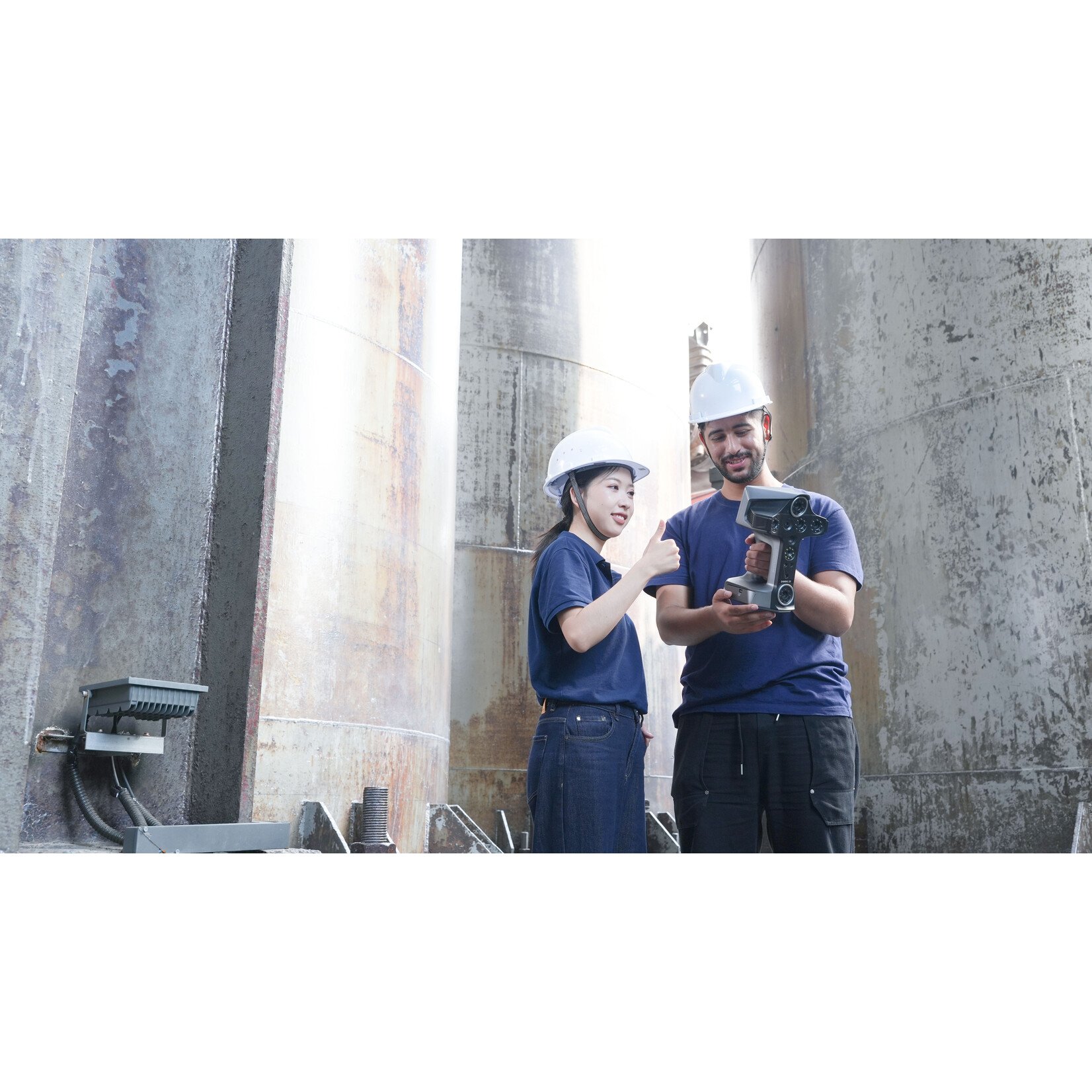

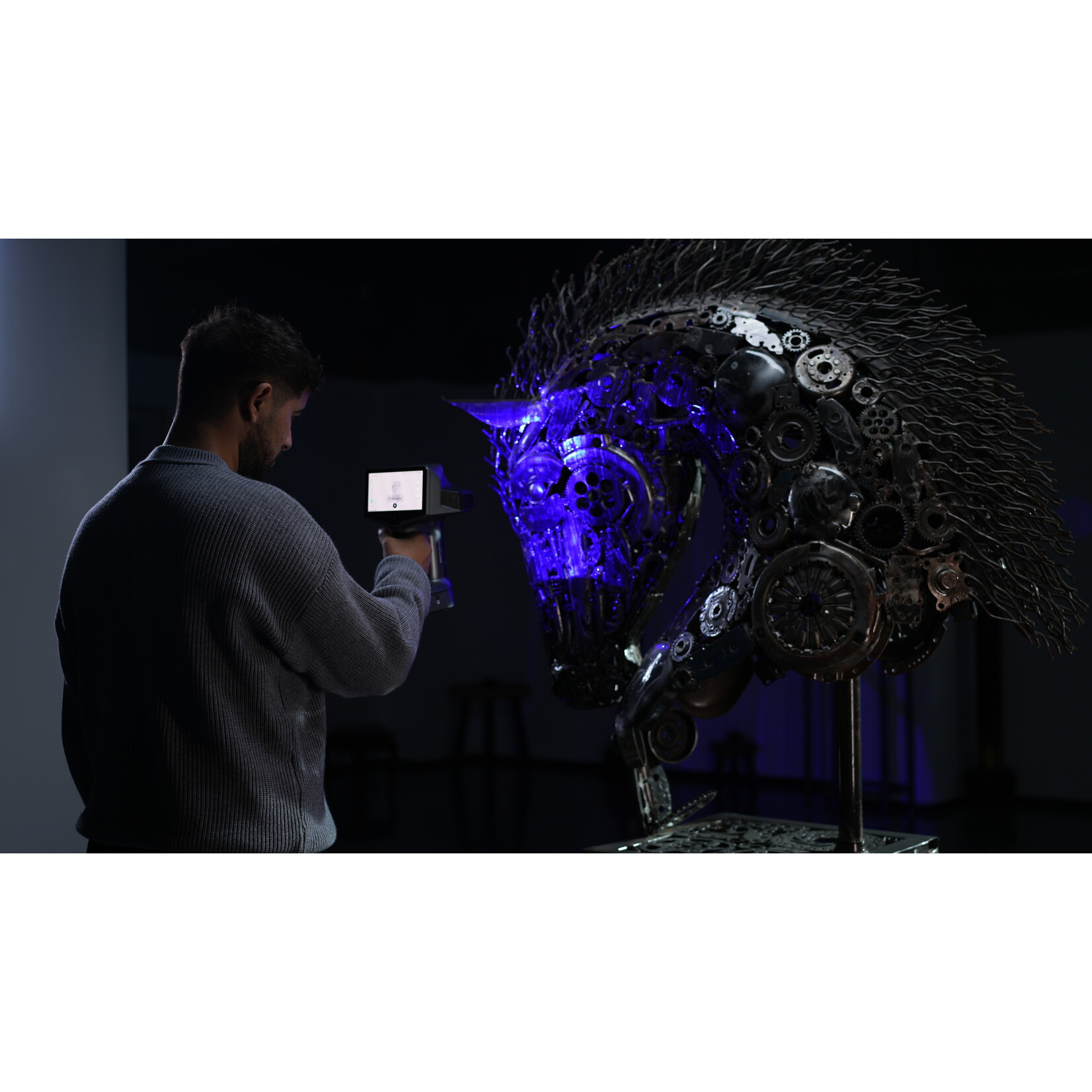

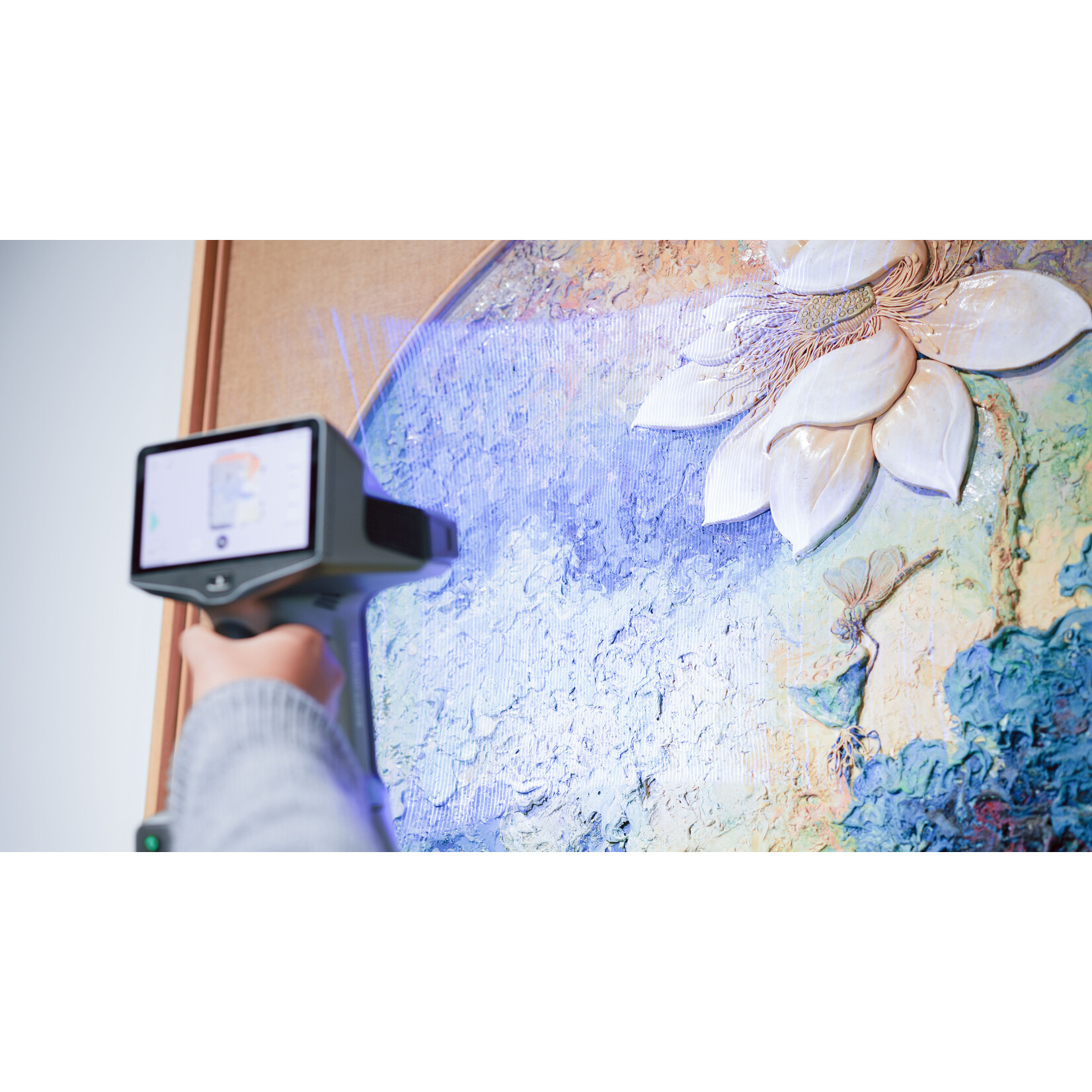

Einscan Libre offers wireless handheld 3D scanning for total freedom. Capture high-accuracy data anywhere without cables, Ideal for large-scale on-site projects.
On backorder

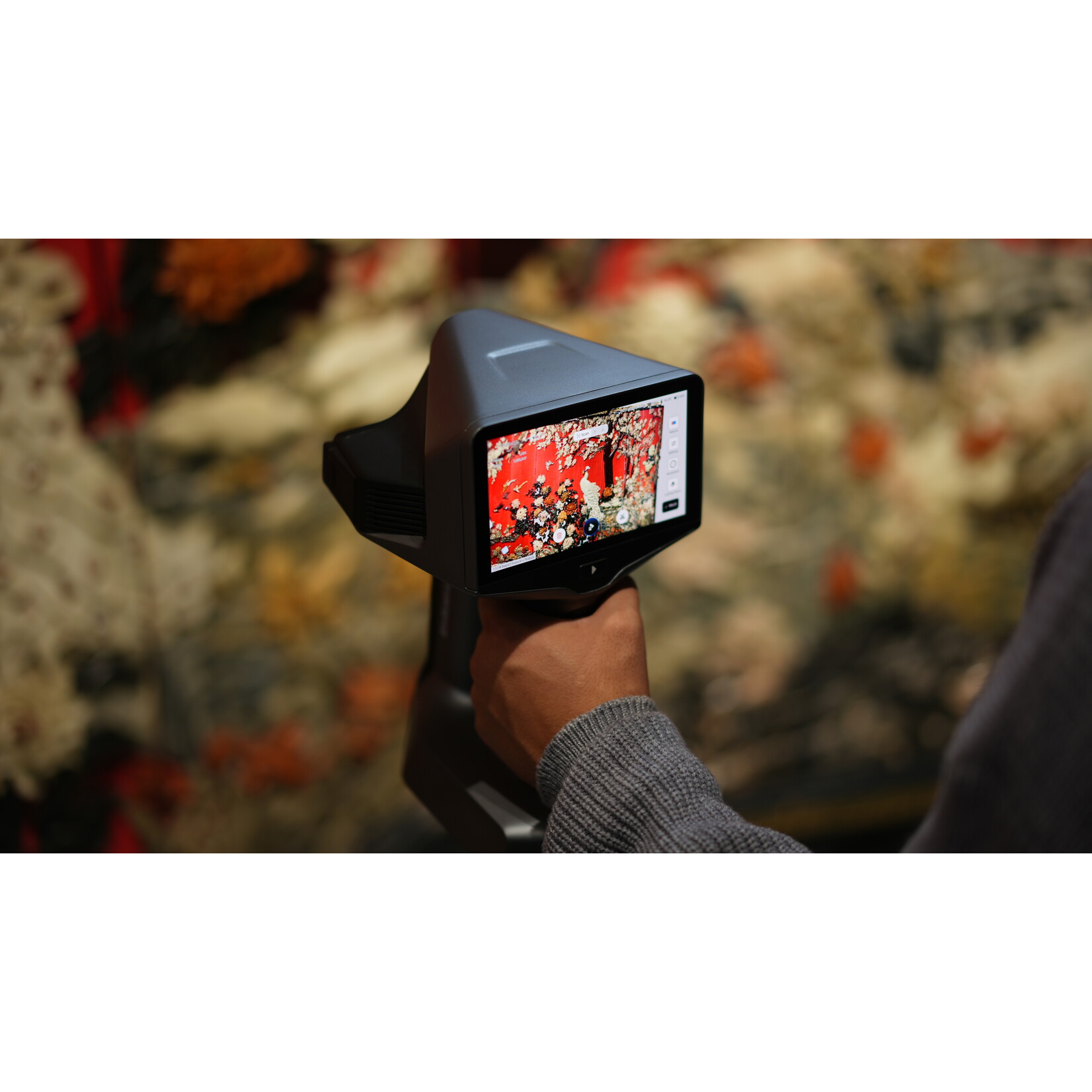

Effortlessly capture, view, and manage your scans with the user-friendly touchscreen interface.
Scan and process data with all features built into the device. No laptop required.
Slide your batteries into the convenient charging station to recharge and stay scanning without downtime.
Equipped with a powerful processor and ample storage, the EinScan Libre offers wireless freedom without sacrificing speed.
Integrated Jetson Orin NX 16 GB, 8-core CPU, and Ampere GPU with 1024 CUDA cores deliver fast data processing.
Extended storage ensures you can scan high-resolution models and large projects without worrying about capacity.

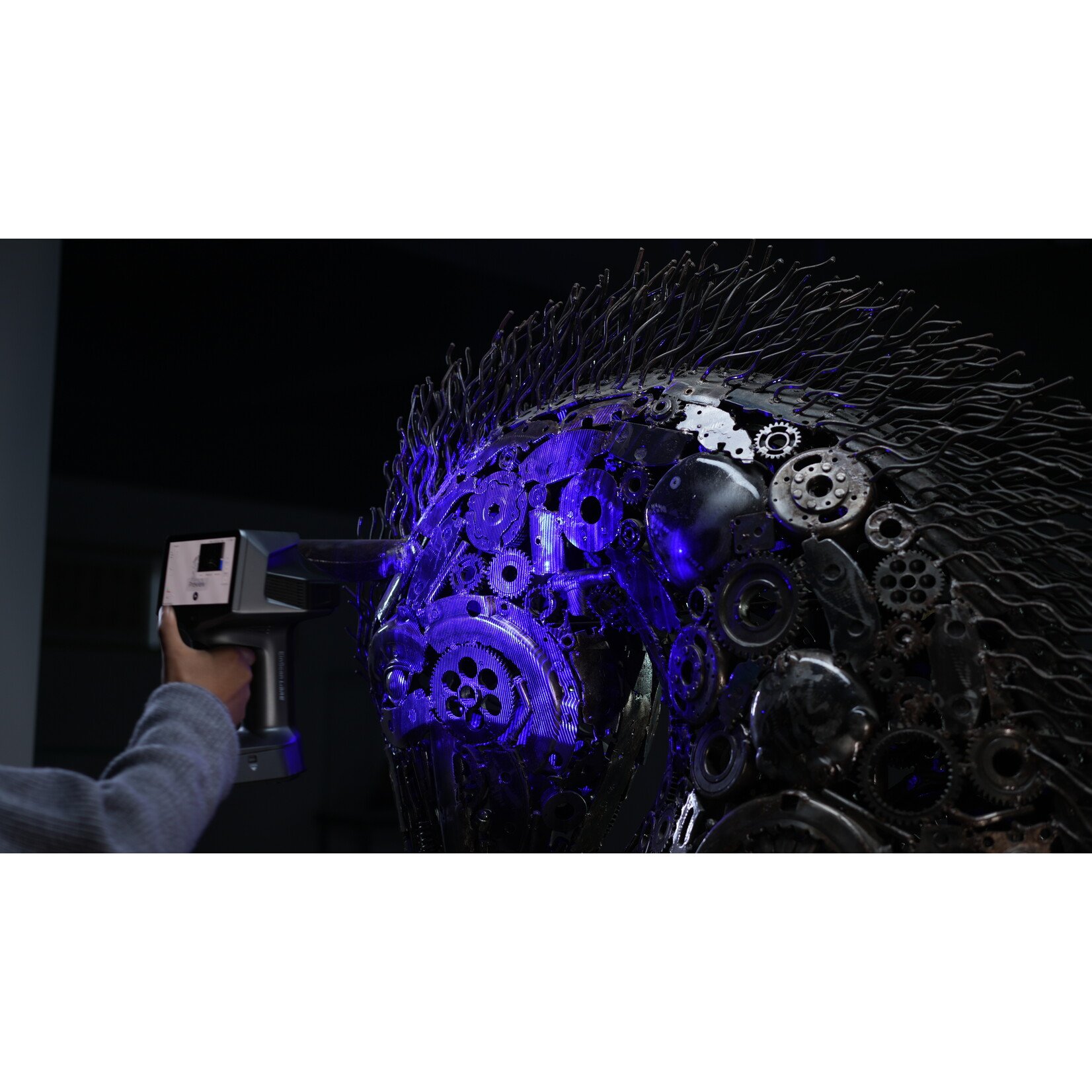

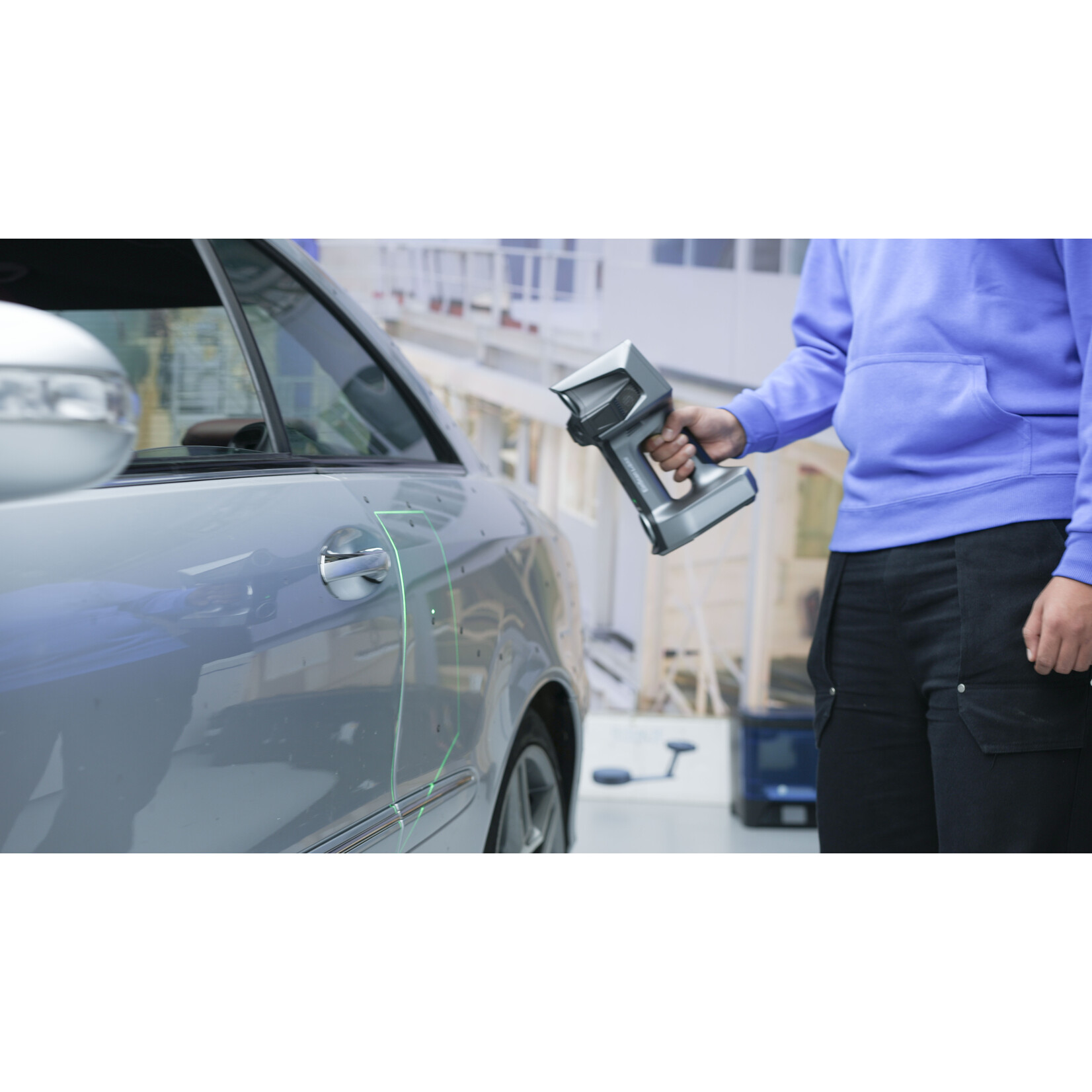

Switch between three versatile scanning modes to capture object sizes from 0.1 m to over 10 m. IR and laser modes handle a wide variety of materials indoors or out of direct sunlight.
Generate mesh data with one click and complete the entire workflow on the device.
Edit scan data directly on the device for a simplified workflow.
Ample storage allows you to scan freely without worrying about capacity.
Experience more flexibility than single-threaded operations.
Combine scans of different resolutions for improved results.
Delivers smooth performance without high-specification computers.
Equipped with a 48 MP colour camera, the EinScan Libre captures every detail with clarity and vibrancy, ensuring scans reflect the full richness of the scene or object.
This advanced wireless scanner offers volumetric accuracy of up to 0.04 + 0.06 mm/m, capturing every detail with precision for intricate or complex projects.
EXModel simplifies CAD modelling from 3D scanning to production, with seamless integration via EXScan Libre. Create professional CAD digital models compatible with your existing software.
Unfortunately, we do not currently have a showroom model available, so a demonstration cannot be provided at this time.
| Scan Mode: | 3 Modes (Laser HD - 101 blue laser lines / IR Rapid - 38 IR laser lines / IR Adaptive - IR VCSEL) |
|---|---|
| Scan accuracy: | Up to 0.04 mm + 0.06 mm/m (Volumetric precision foundation) |
| Volmetric accuracy: | Up to 0.04 mm + 0.06 mm/m (Supports real-time scale bar calibration) |
| Scan speed: | 4,500,000 points/s (Laser HD) | 2,700,000 points/s (IR Rapid) | 1,900,000 points/s (IR Adaptive) |
| Frame rate: | Up to 120 FPS (Laser Scan Mode) | Up to 20 FPS (Rapid Scan Mode) |
| Alignment mode: | Markers, Global Markers, Feature, Texture, and Hybrid (First standalone to support laser-mode texture tracking) |
| Work distance: | 200 mm to 500 mm (Laser HD) | 500 mm to 1,500 mm (IR Rapid) | 500 mm to 1,200 mm (IR Adaptive) |
| Depth of field: | Built-in adjustable working distance filters directly via the on-device UI |
| Single scan range: | 165 x 200 to 382 x 450 mm (Laser) | 370 x 470 to 983 x 979 mm (IR Rapid max FOV) |
| Point distance: | 0.05 mm - 3.0 mm (Laser HD) | 0.5 mm - 10.0 mm (IR Rapid & IR Adaptive) |
| Light source: | 101 Blue Laser Lines (Laser HD) | IR VCSEL (IR Rapid) | 38 IR Laser Lines (IR Adaptive) |
| Safety: | Class II (Eye-safe visible blue laser) | Class I (Eye-safe invisible infrared light) |
| Built-in colour camera: | Yes (Dedicated 48 MP high-resolution texture camera + dual 5 MP 3D tracking cameras) |
| Texture: | Yes (Native high-fidelity 24-bit full color capture without modular add-ons) |
| Connection standard: | Fully Wireless (Wi-Fi 6), USB-C (Supports 100W PD3.0), USB 3.0 Type-A, Gigabit Ethernet |
| File format: | .stl, .obj, .ply, .3mf, .asc, .las, .p3 (global markers file) |
| Dimension: | 162 x 182 x 266 mm |
| Weight: | 1.8 kg (Including hot-swappable battery package) | 1.6 kg (Without battery) |
| Certificates: | CE, FCC, RoHS, WEEE, KC |
| Supported OS: | Standalone OS on-device | Windows 10/11 (64-bit) for secondary desktop software syncing |
| Graphics card: | On-board: NVIDIA Jetson Orin NX (Ampere GPU, 1024 CUDA Cores) | PC Link: RTX 1070/6GB VRAM minimum |
| RAM: | On-board: 16 GB unified system memory | PC Link: ≥ 32 GB RAM |
| Processor: | On-board: Embedded 8-core Arm Cortex A78AE (100 TOPS) | PC Link: Intel Core i7-11700 or better |
| Memory: | On-board: Internal 1TB high-speed SSD storage workspace |
| Interface: | Integrated 5.5-inch HD OLED touchscreen display interface (No computer required to scan) |
