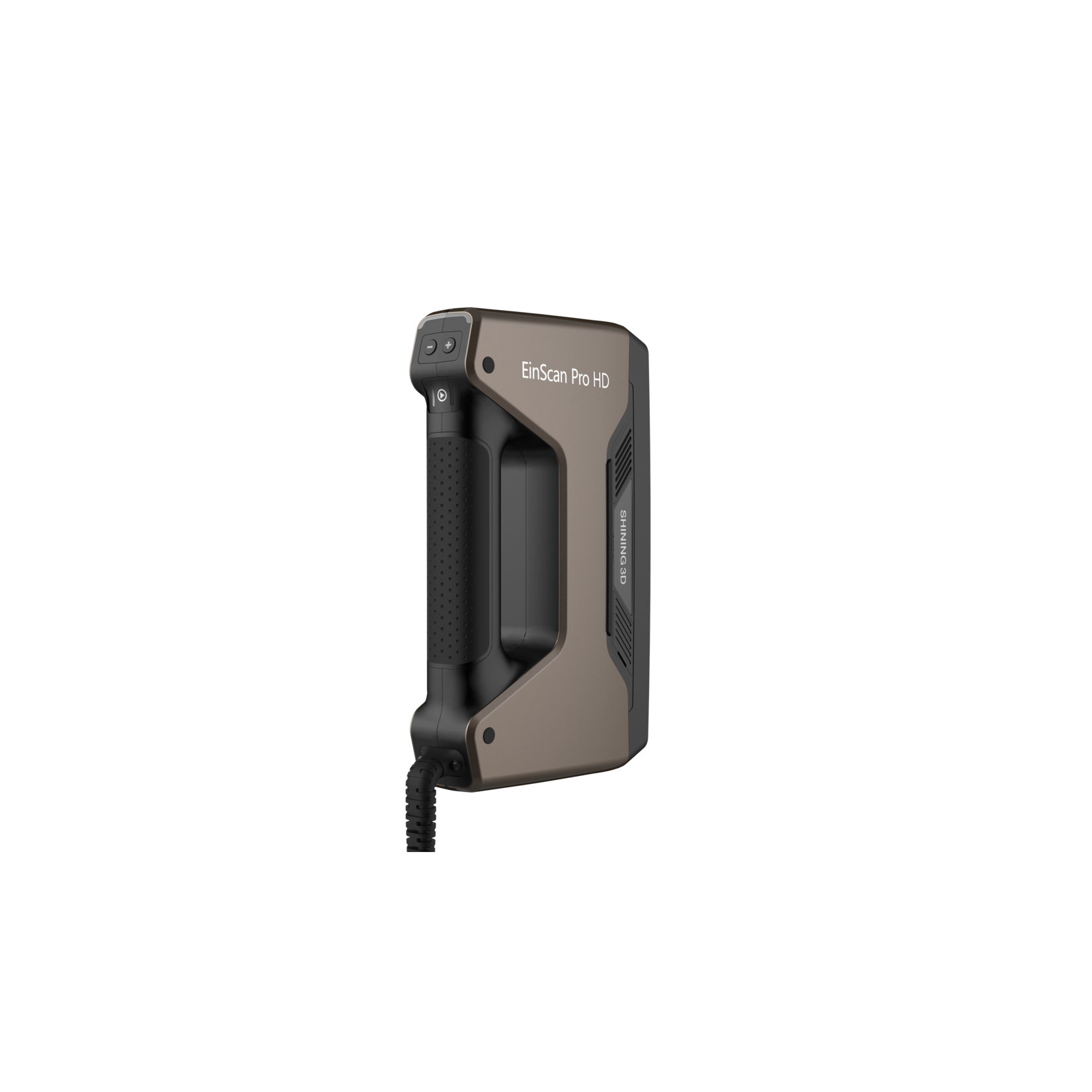

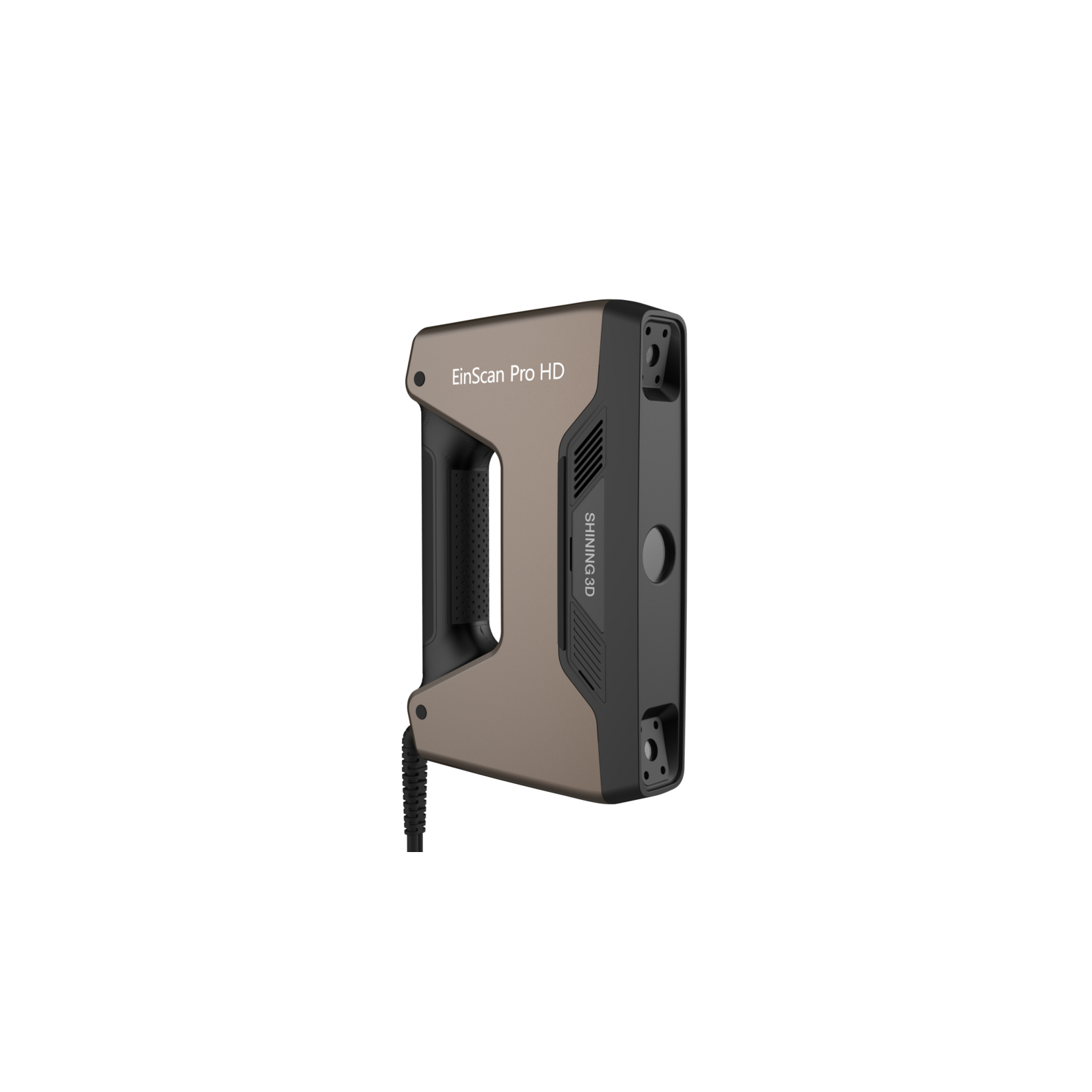

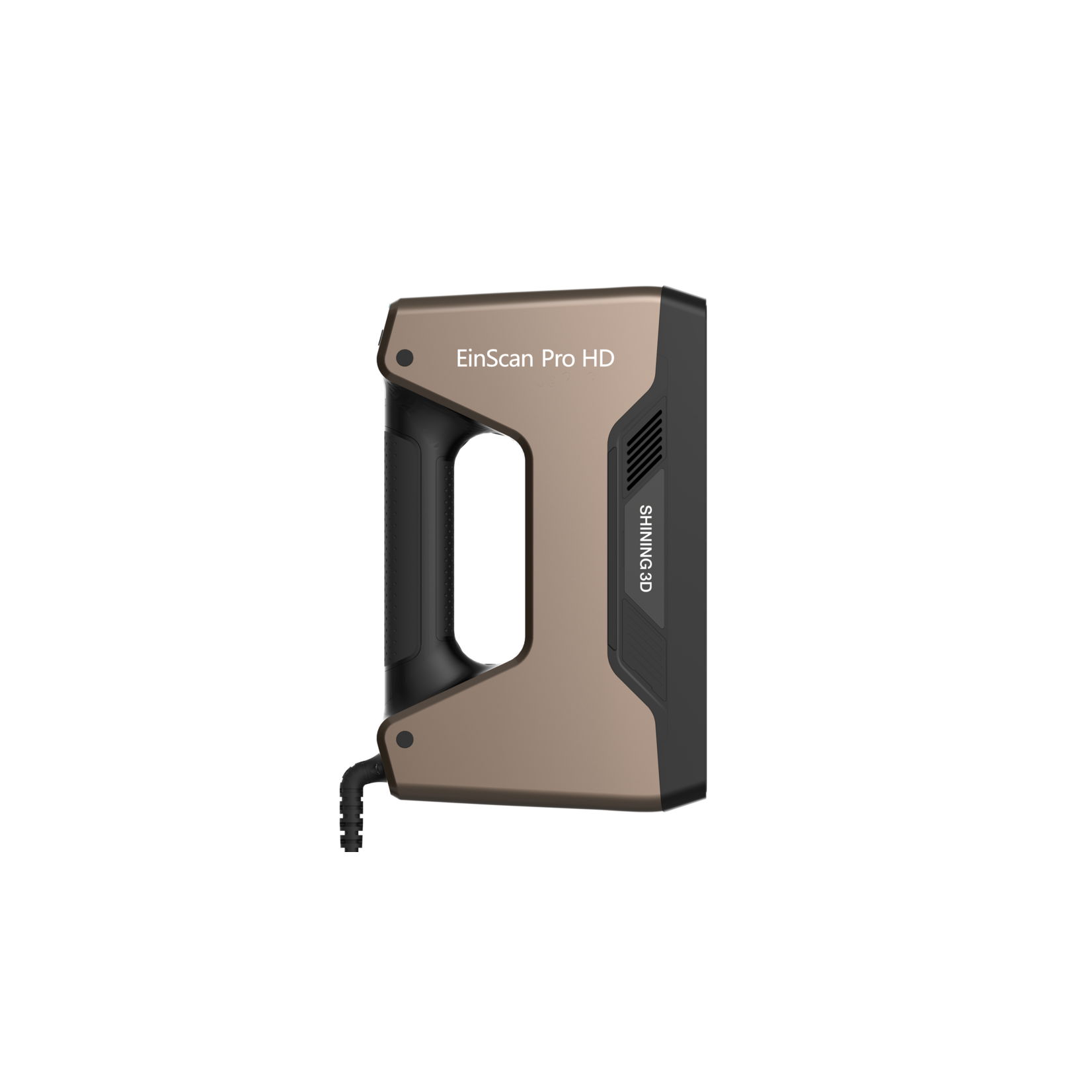

Shining 3D Einscan Pro HD

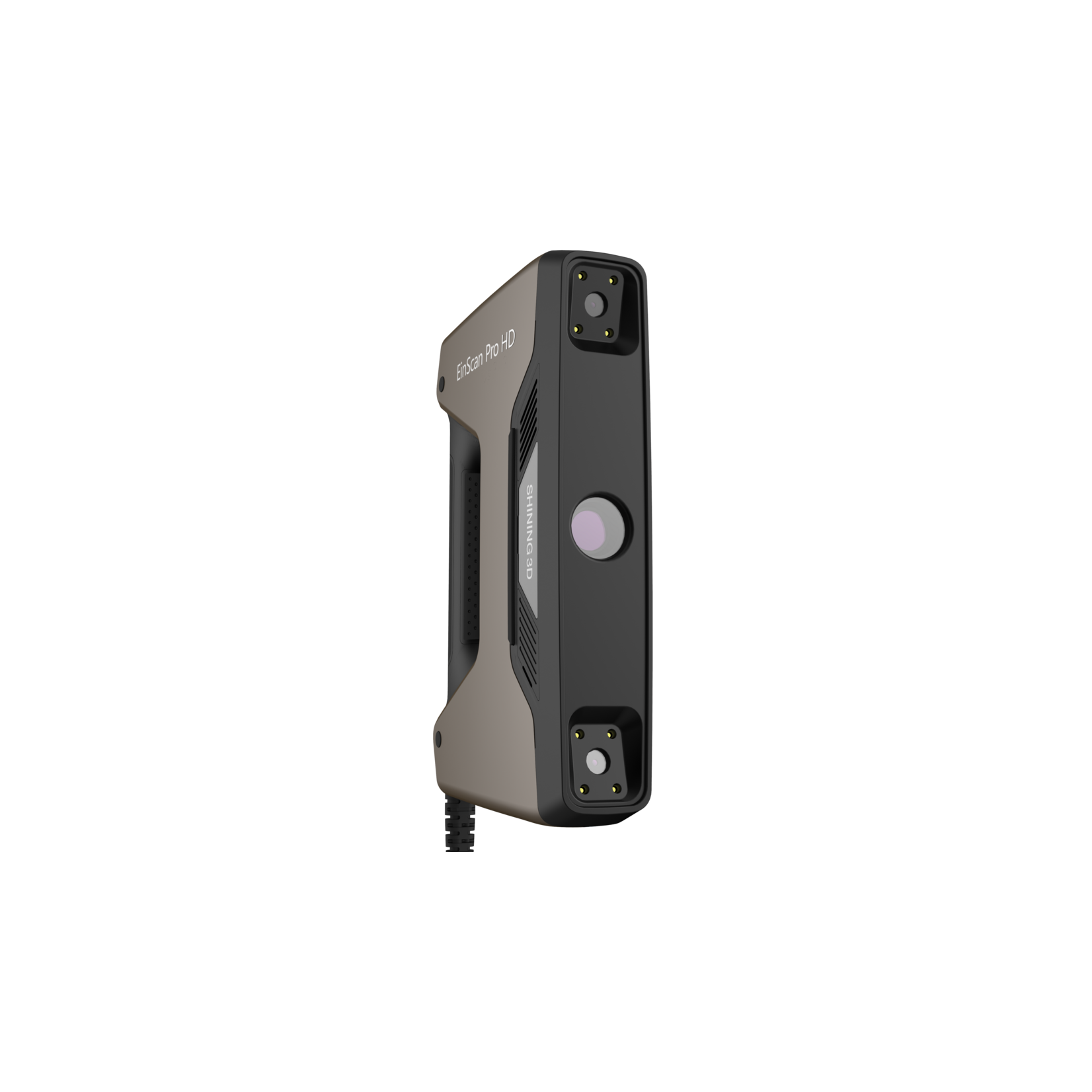

Einscan Pro HD

The EinScan Pro HD, inheriting the multifunctional and modular design of the EinScan Pro series handheld 3D scanner, delivers unparalleled performance in capturing high resolution and accuracy through manual scanning. Exceptional versatility and powerful optimisations combine to create the ultimate, highly efficient, and professional 3D scanning experience. It is a reliable assistant for designers and engineers who value high-quality 3D modelling.

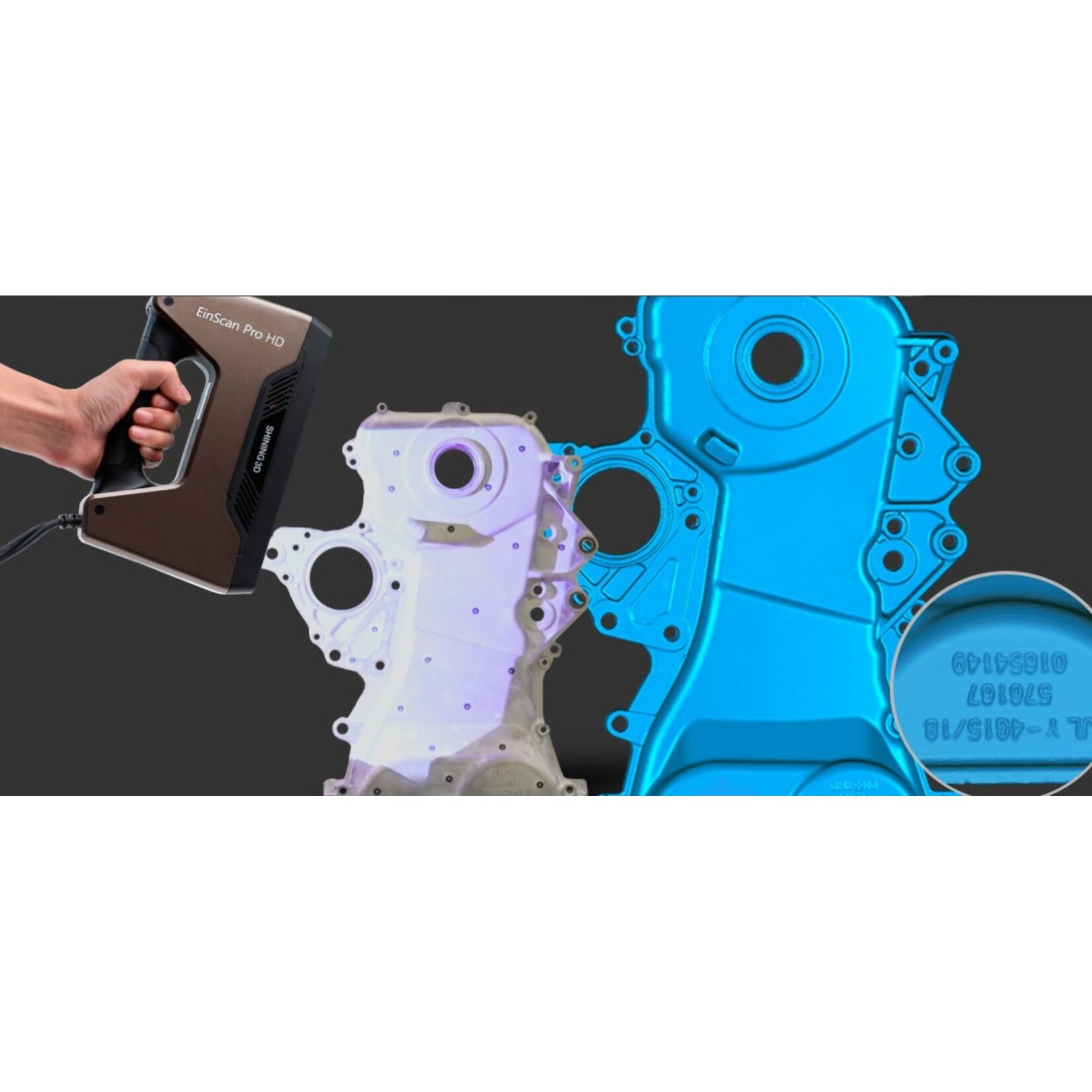

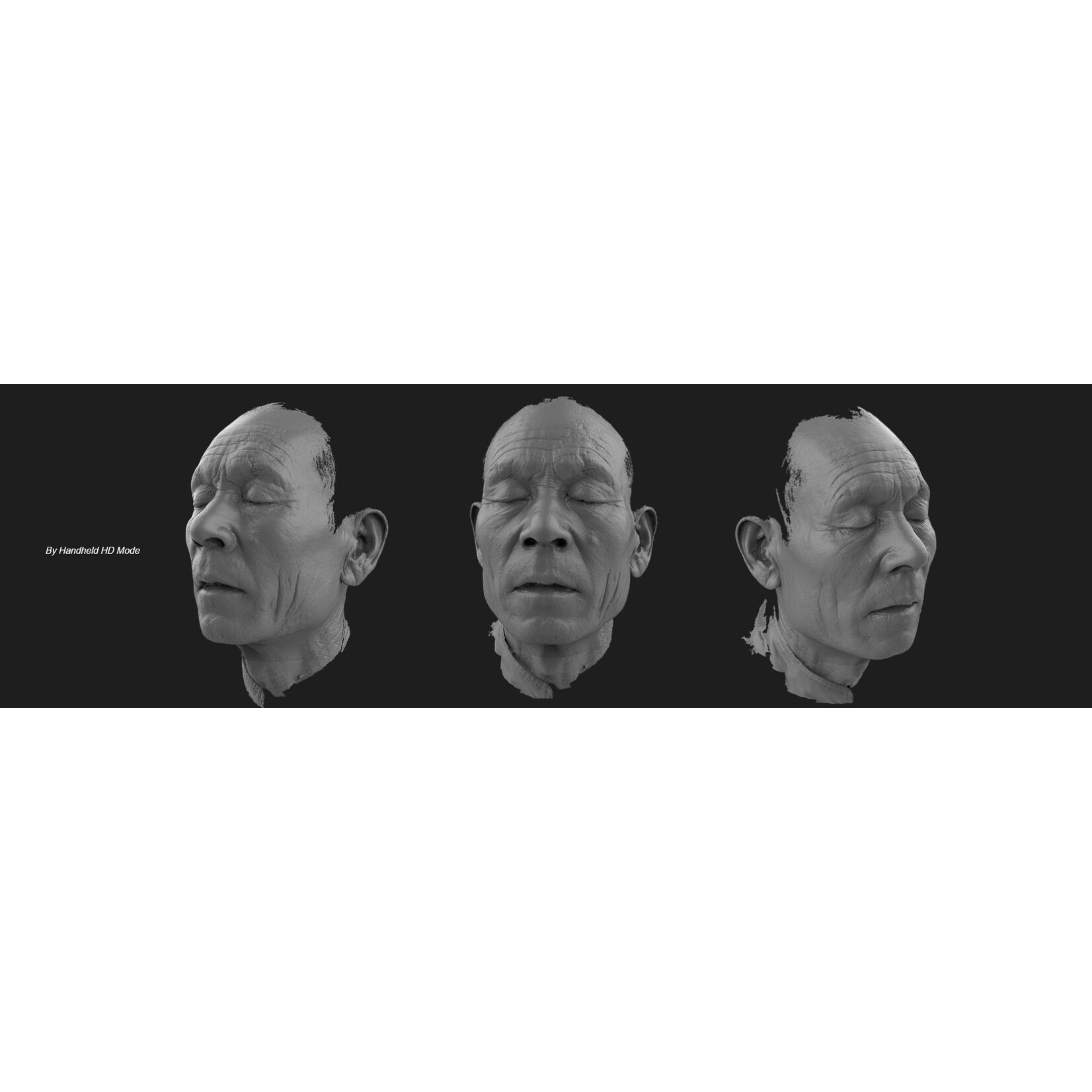

Impressive High Resolution for Fine Details

By adopting a new structured light projection module, the stripe pattern scanning traditionally used in Fixed Scan Mode is now utilised in Handheld HD Scan Mode. By using a 0.2mm minimum point distance setting with an optimised algorithm, it brings high resolution and accuracy to handheld scanning that is as good as fixed scanning.

Fewer limitations on scan objects

With new lighting projection hardware and software algorithms, the EinScan Pro HD is capable of scanning a wider range of objects in dark or black colours and casting metal surfaces, enriching the capability for 3D scanning of various materials.

Fast Scanning Speed and Data Transmission

The EinScan Pro HD has achieved a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second in handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high-speed data transmission.

Portable & Easy Operation

The EinScan HX is plug-and-play with user-friendly software which is easy to operate, whether you are a novice or have professional experience in 3D scanning. The portability and flexible use of the EinScan HX have been integrated into its ergonomic design for a more efficient and comfortable scanning experience.

High Accuracy for High-Quality 3D Modelling

With various positioning methods, both the scanner and objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode using marker alignment, the volumetric accuracy is up to 0.045mm + 0.3mm/m.

Modular Design for a Wide Range of Applications

The modularly designed Colour Pack and Industrial Pack are optional add-ons for the EinScan Pro HD that extend your scanning experience for more applications. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment, and texture alignment (with the Colour Pack), greatly enhance scanning efficiency without additional preparation.

Take it anywhere you go

Ergonomically designed and lightweight, you can easily take the EinScan Pro HD scanner anywhere you go. Simple plug-and-play allows you to run the scanner without complex installation, while the compact size allows the scanner to move freely for an unlimited scanning experience.

• Package size: 37 x 36.5 x 13.5 cm
• Lightweight: 1.13 kg

Positive and negative points of the Einscan Pro HD

• + Scan quality up to 0.04mm accuracy
• + High speed
• + Easy to use
• + Professional device at an affordable price
• + Automatic waterproofing for 3D printing
• - Some areas require spraying (as with all 3D scanners)
• - Cannot scan hair
• - Turntable sold separately (Industrial Pack)

How do you choose the right scanner?

How do you choose the right 3D scanner for your needs? Is the lowest price always the best value? Is an expensive model right for you? To ensure you choose the correct device, you should evaluate all product specifications and thoroughly compare the different models.

This guide is specifically designed to help you choose the device that perfectly meets your requirements. Covering all relevant aspects of accuracy, resolution, scanning speed, scan size, and light source, we hope this guide will be a reliable companion on your journey to finding the 3D scanner that meets your needs.
