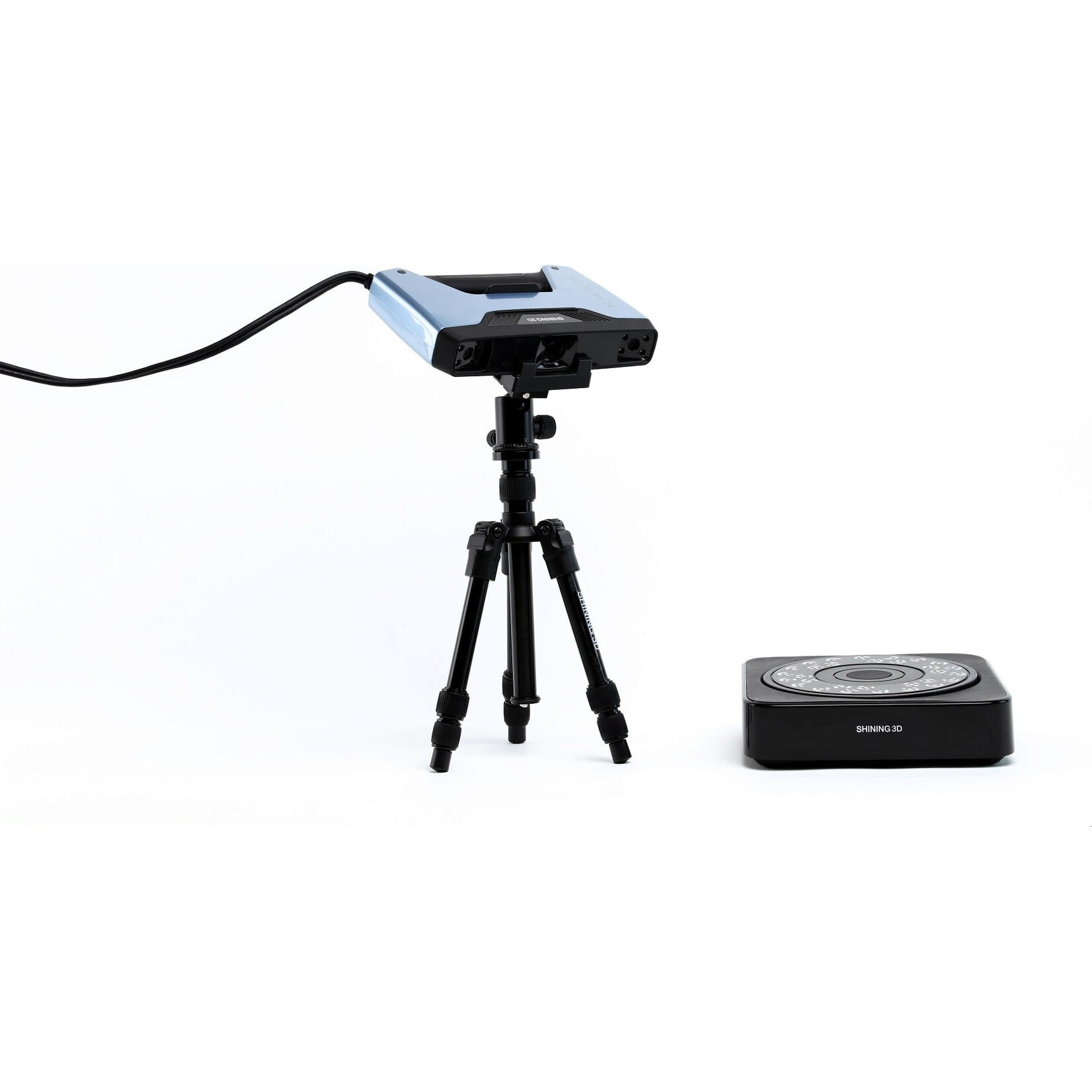

Shining 3D Industrial Pack EinScan-Pro 2X & Pro HD

Industrial pack with tripod and automated turntable for EinScan series

The industrial pack is a professional accessory suite designed to enhance the precision and automation of compatible EinScan 3D scanners. By transitioning from handheld scanning to a fixed tripod setup, this pack enables the use of both "Automatic Scan" and "Fixed Scan" modes. These modes are essential for capturing small to medium‑sized objects with high accuracy and repeatability, making it valuable for quality control, reverse engineering, and high‑resolution digital archiving.

The core of this pack is the synchronised automatic turntable, which the EinScan software controls to rotate the object in precise increments. This allows a complete 360‑degree capture with optimised data overlap, significantly reducing the time required for manual alignment. When combined with the heavy‑duty scanner stand, the system removes minute hand tremors associated with handheld operation, allowing the structured light sensors to resolve fine surface textures and geometric features.

Key features:

• Automated 360‑degree scanning: The turntable automates the digitisation process, enabling rapid, hands‑free data acquisition.
• Enhanced accuracy: Fixed‑position scanning provides a high level of detail and accuracy on supported scanners.
• Versatile scan modes: Unlocks both "Automatic Scan" (using the turntable) and "Fixed Scan" (using the tripod for larger, static objects).
• Stable hardware interface: The industrial‑grade tripod and secure mounting bracket help keep the scanner calibrated during operation.

What is in the box?

• 1× Automated turntable: With a high‑grip surface and integrated data cable for software synchronisation.
• 1× Professional tripod: Adjustable height and stable footprint for industrial environments.
• 1× Scanner mounting bracket: To securely attach the EinScan unit to the tripod head.
• 1× Power adapter and cable set: All necessary power and data links for the turntable system.

Compatibility:

This industrial pack is officially supported on the following EinScan models:

• EinScan Pro 2X
• EinScan Pro 2X Plus
• EinScan Pro 2X 2020
• EinScan Pro HD

Maintenance tip:

To ensure consistent tracking accuracy, keep the automatic turntable surface free from dust and debris, as small particles can interfere with the software’s ability to track rotation. When using the industrial pack for high‑precision metrology, place the tripod on a solid, vibration‑free surface. Regularly check that the mounting bracket is firmly tightened; even a millimetre of movement during scanning can cause misalignment in the final 3D mesh. After relocating the setup, perform a "Fixed Mode Calibration" to ensure the sensor and turntable are perfectly synchronised.
