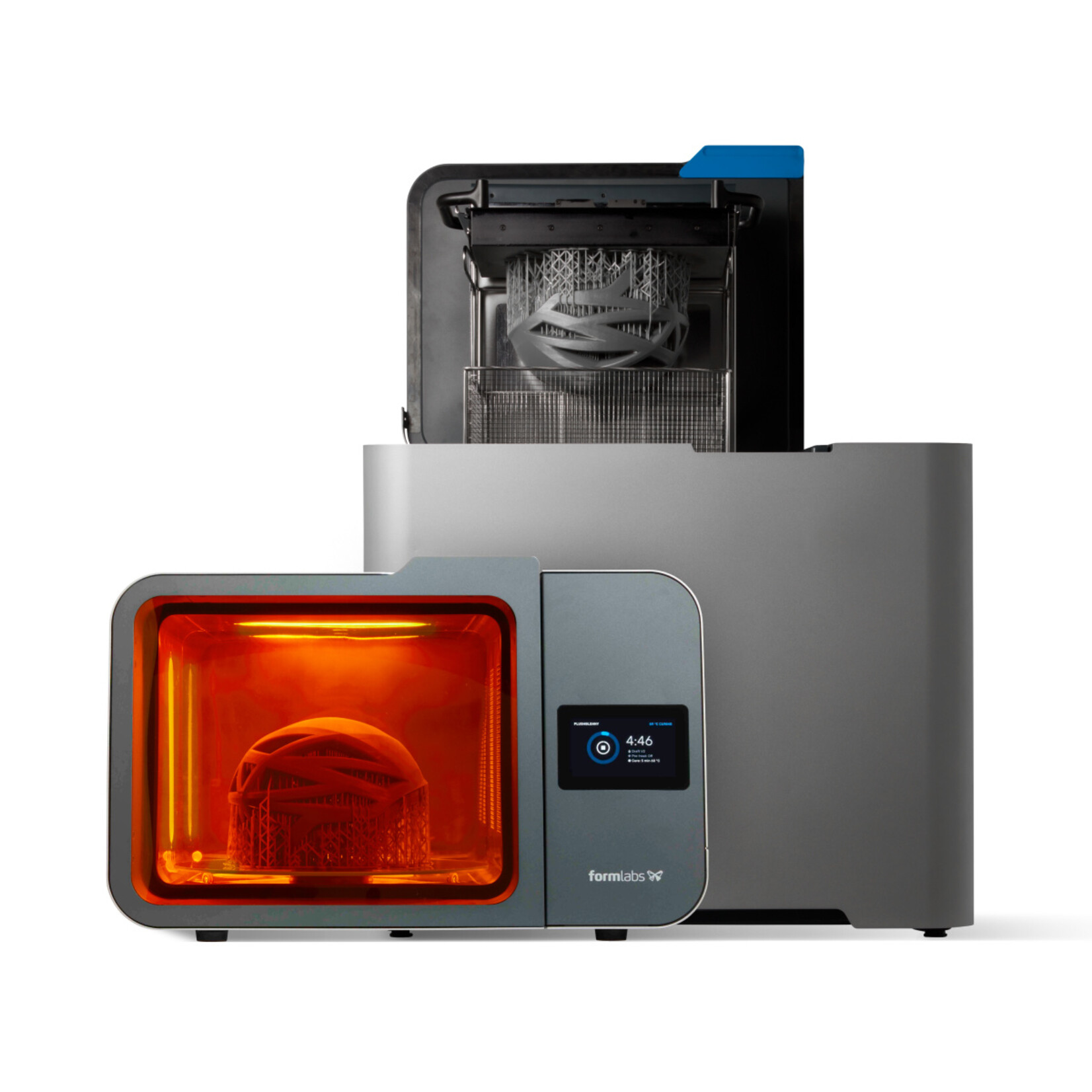

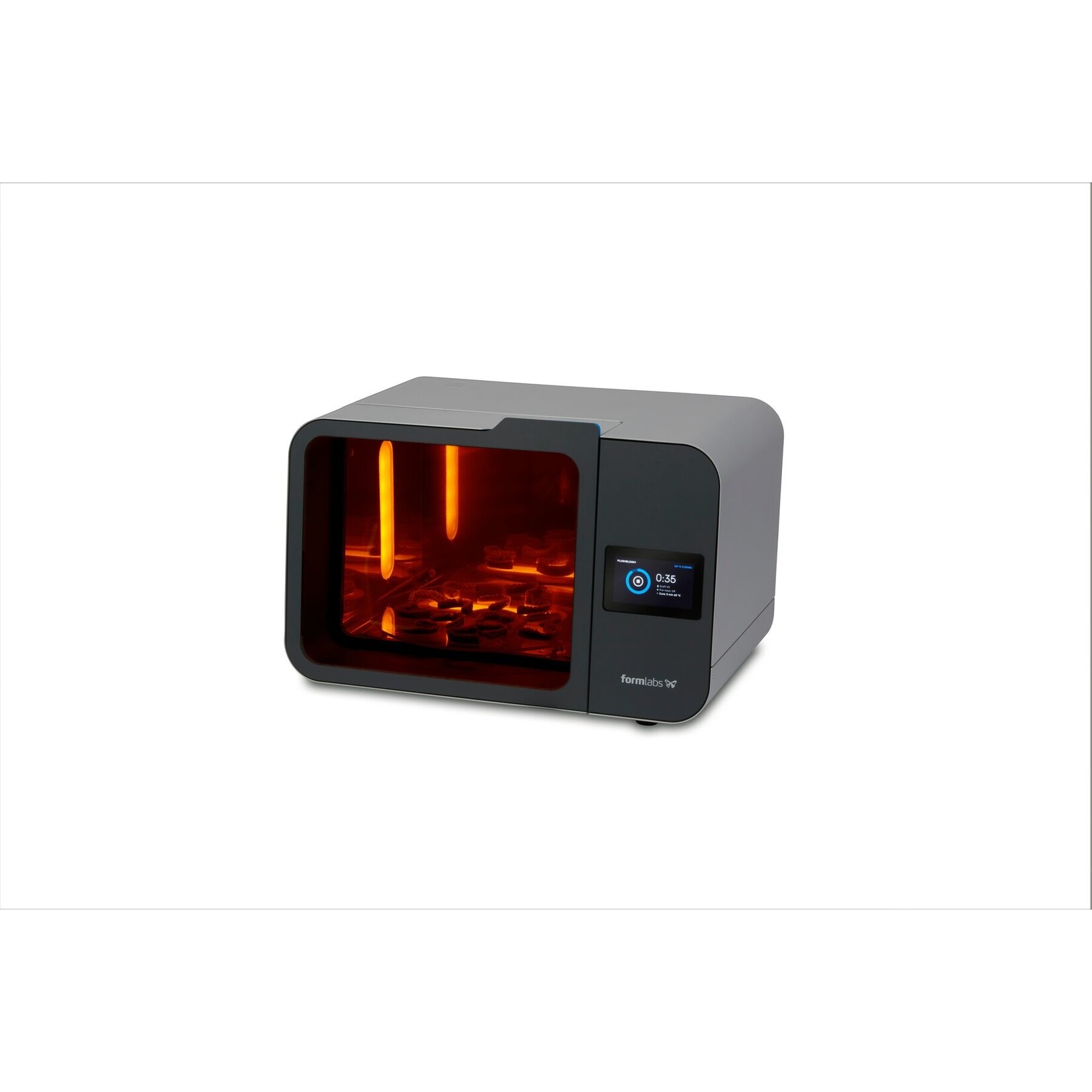

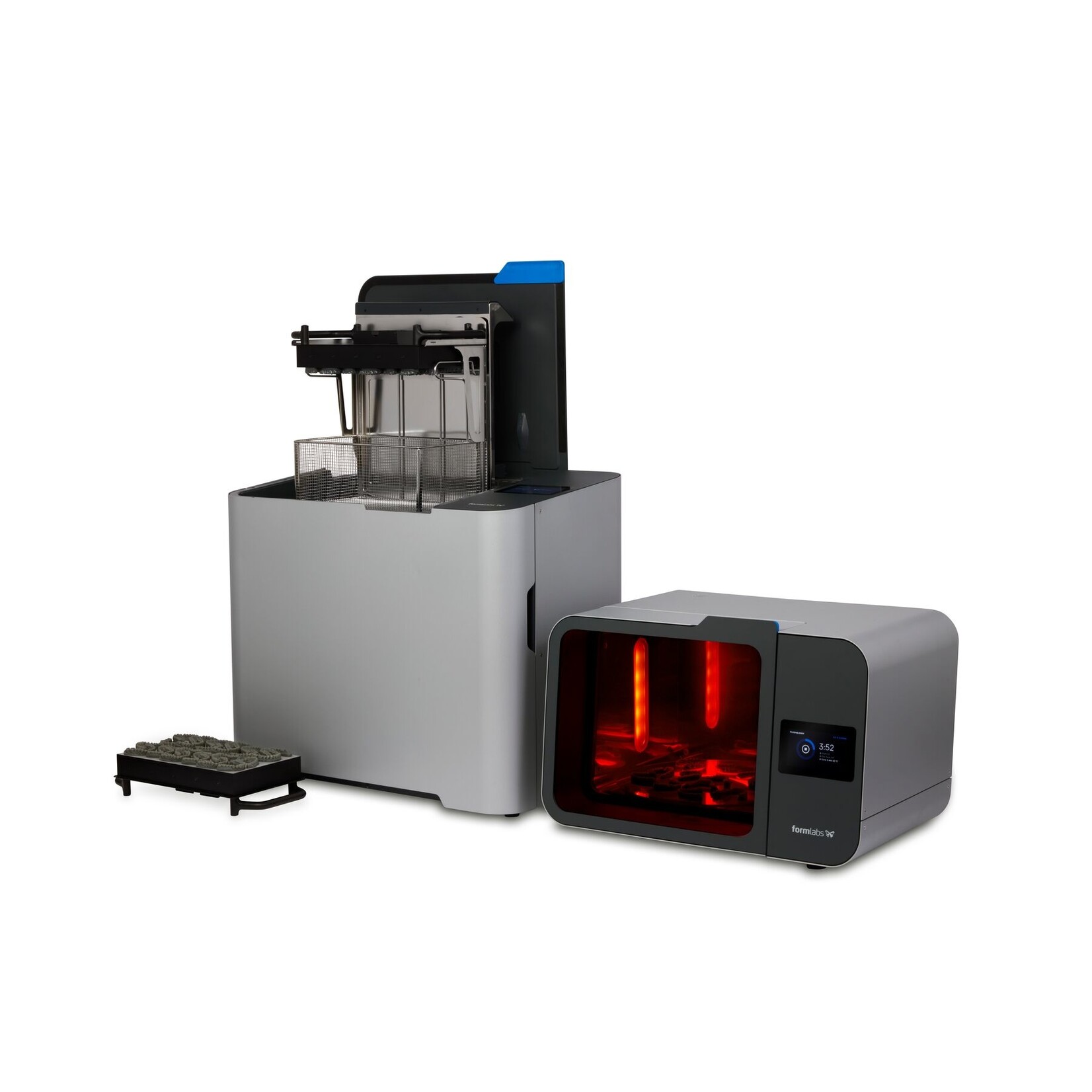

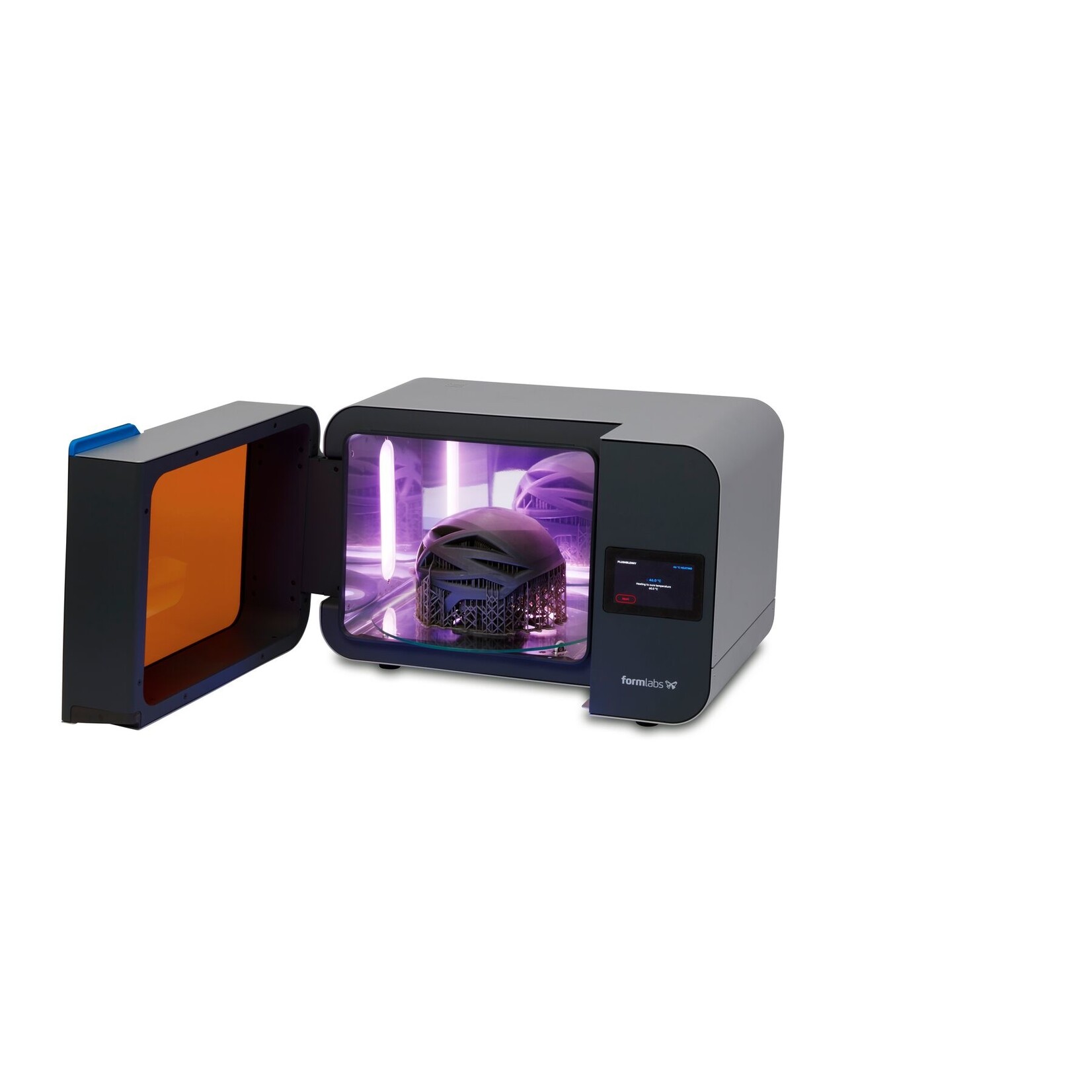

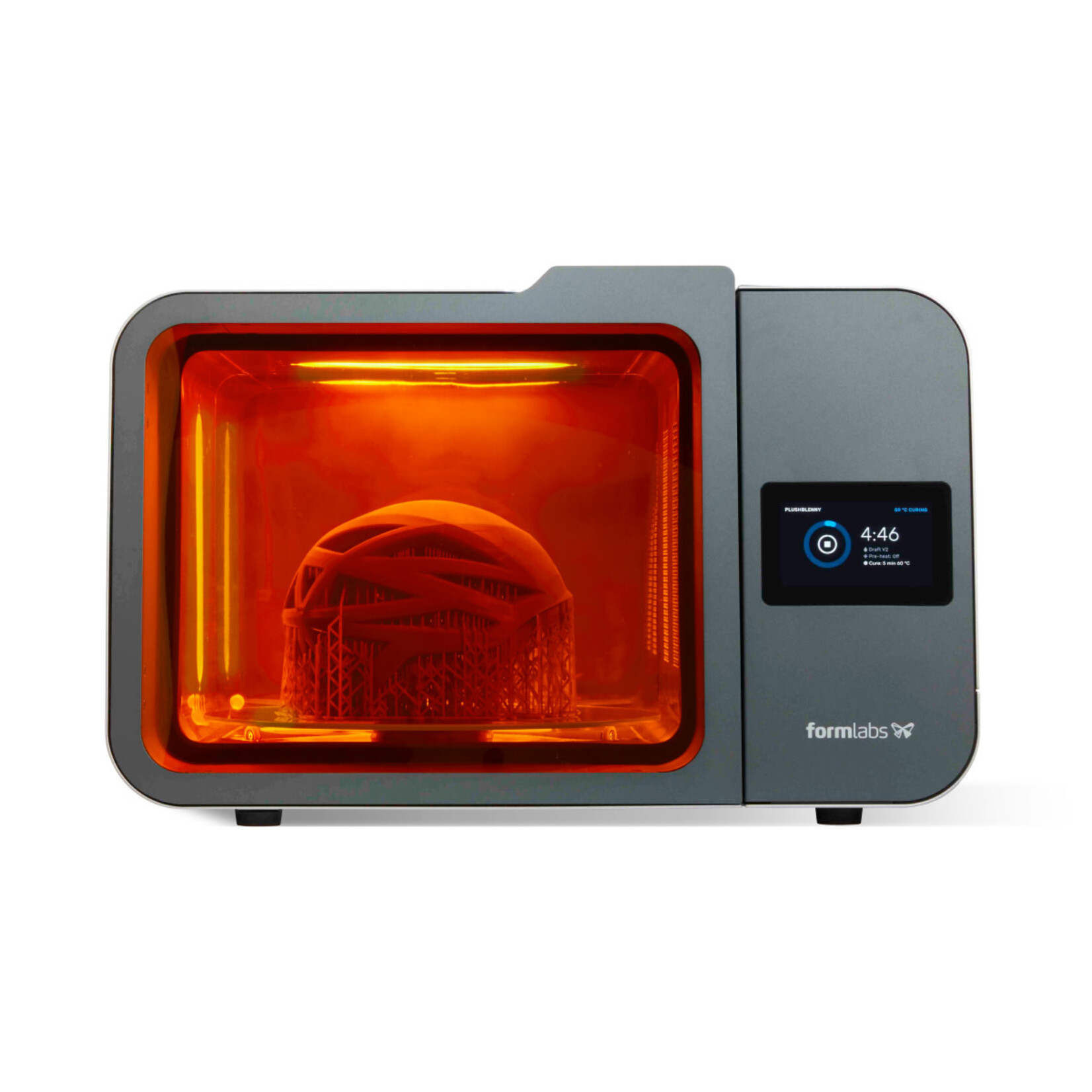

Formlabs Form Cure L

Formlabs Form Cure L

The Form Cure L enhances SLA printing results with powerful 500 W heating elements, UV light, and a reflective rotating turntable for even curing. Designed for large prints and high-volume production, it guarantees maximum mechanical properties and precision. Features preset programs for Formlabs materials, a maximum print height of 32 cm, preheating, and 45 multi-directional LEDs for fast and consistent curing.

Whether you're printing large parts or producing smaller parts, Form Cure L is compatible with all your Formlabs SLA 3D printers.

Automate post-curing with Form Cure L

Precisely control the temperature and light to optimally cure 3D-printed parts.

Advanced heating

Preheat the chamber so your parts are ready for the best post-curing.

Even exposure

A rotating turntable ensures even curing.

Maximize material properties

Use the standard time- and temperature settings per material for the best results.

Fast, powerful curing

Two 500W heaters reach 80°C in 10 minutes, while three UV light modules emit the ideal light for fast and effective curing.

What's in the box

• Form Cure L

Specifications

• Dimensions: 69.0 x 54.0 x 44.5 cm
• Maximum part height: 32 cm
• Turntable diameter: 39.5 cm
• Compatible with: Form 4L, Form 4BL, Form 3L, Form 3BL, Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2
