UltiMaker Build Plate Mounting Pack (S5) 80-121540

Build plate mounting pack for UltiMaker S5

The build plate mounting pack is a comprehensive hardware kit containing all the essential components required to install or refurbish the heated bed assembly of the UltiMaker S5. This kit ensures that the build plate is securely fastened and properly tensioned, which is critical for maintaining a level printing surface and achieving consistent first-layer adhesion. Whether you are replacing a worn assembly or performing a deep service of the Z-stage, these factory-spec parts provide the precise fit required for industrial-grade stability.

Included in the pack are the specialised glass plate clips that hold the build surface in place, along with the thumbwheels and springs that facilitate the manual levelling process. By using fresh springs and locknuts, you ensure that the build plate remains calibrated even during long-duration prints and high-vibration movements.

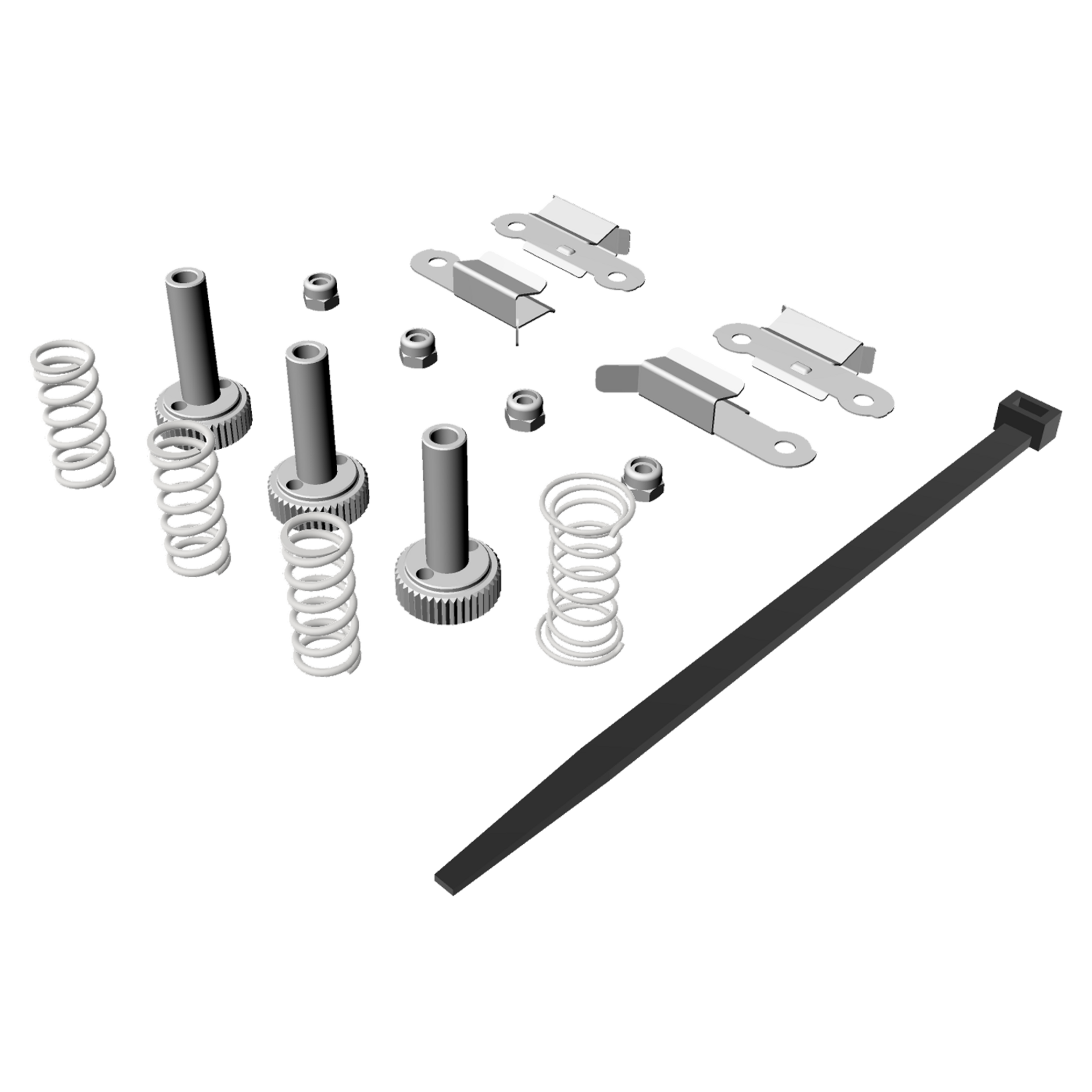

What is in the pack?

• 4x Metal glass plate clips: Heavy-duty clips designed to hold the 4mm toughened glass build plate securely to the aluminium heater plate.
• 4x Locknuts: Used to secure the rear clips and mounting bolts, preventing them from loosening over time due to thermal expansion.
• 3x Thumbwheels: Ergonomic adjustment wheels that allow for the fine-tuning of the bed level during the calibration sequence.
• Build plate springs: High-tension springs that provide the necessary upward force for the levelling system.
• Cable tie: A specialised tie to neatly secure the heated build plate cable to the Z-stage, preventing interference during vertical travel.
