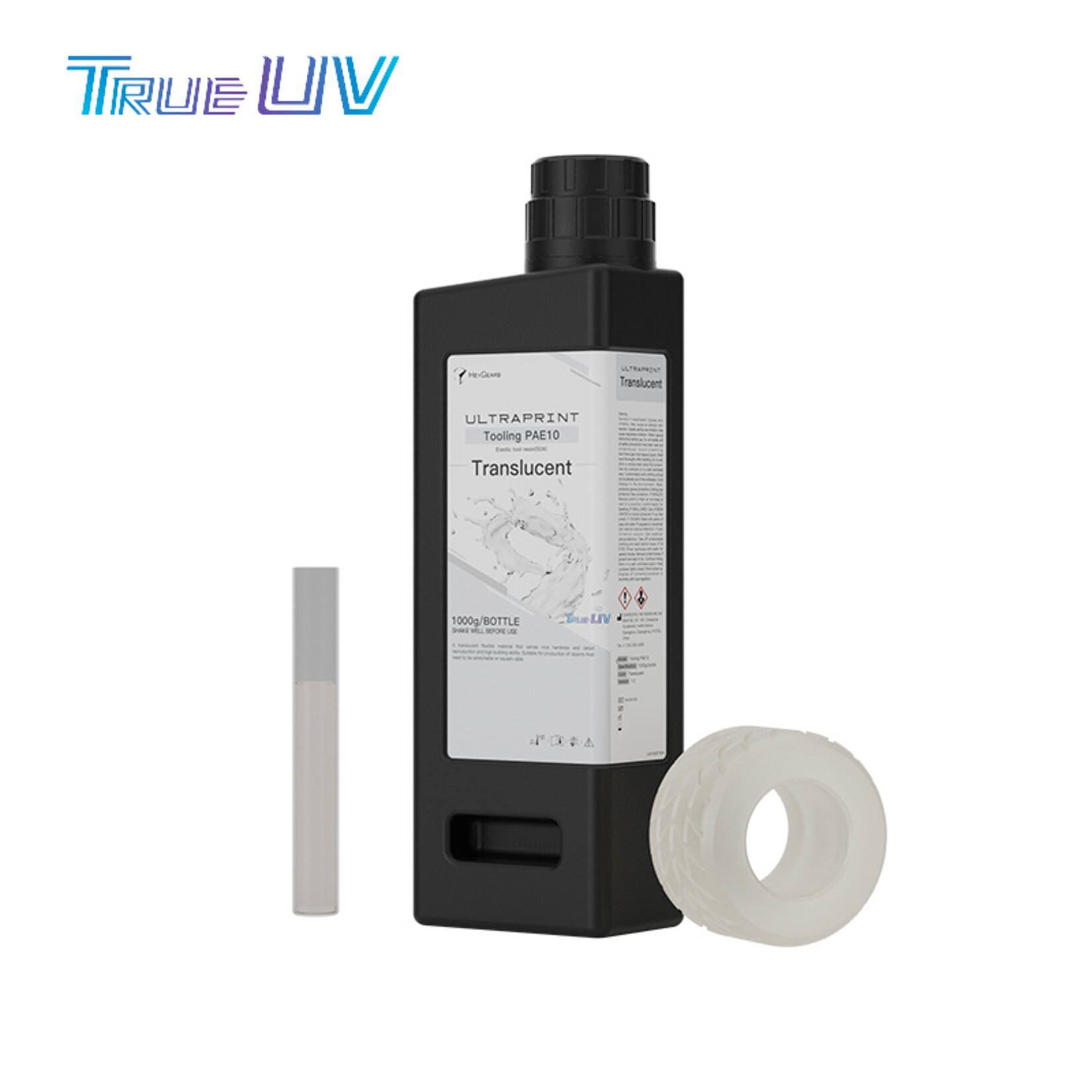

HeyGears UltraPrint Production Resin PAE10 - Clear

HeyGears UltraPrint Tooling PAE10 translucent elastic resin is a highly flexible, industrial-grade 3D printing resin that replicates the soft, rubber-like properties of elastomers with a Shore 49A hardness. Formulated for functional soft tooling, elastic components, and flexible prototypes, PAE10 offers exceptional tear strength, high elongation at break (433%), and reliable elastic recovery under repeated mechanical deformation.

Key features

• Soft elastomeric flexibility (Shore 49A): delivers true rubber-like softness and high flexibility, making it ideal for applications requiring squeezable, stretchable, or compliant material properties.
• Exceptional tear & fatigue resistance: formulated to endure continuous bending, stretching, and compression without tearing, cracking, or losing elasticity over time.
• Rapid rebound resilience: returns swiftly to its original geometry after deformation, ensuring reliable sealing performance and impact absorption in dynamic environments.
• Smooth tactile finish: produces non-tacky, smooth surface finishes straight off the build plate for comfortable handling and precise sealing contact.

Target applications

• Soft tooling & fixtures: flexible assembly jigs, compliant gripping pads, vacuum suction cups, and soft robotic end-effectors.
• Industrial sealing: custom gaskets, flexible seals, grommets, bellows, and protective boots.
• Ergonomics & grips: soft-touch handles, dampening pads, and shock-absorbing protective covers.

Printer compatibility

This 3D printing resin is only compatible with HeyGears printers with a 385 nm light engine:

• UltraCraft Reflex
• UltraCraft Reflex Turbo
• UltraCraft Reflex 2
• UltraCraft Reflex 2 Pro

Our Blueprint Studio software comes with pre-tuned materials for this resin, making your 3D printing process a breeze.

PAE10 is also compatible with open-material MSLA/LCD desktop 3D printers from other brands, if they operate at 385 nm UV light output.

Hardware requirements

To ensure proper release forces and optimal print reliability with PAE10 resin, the Pulsing Release Module is required.

Downloads

Safety data sheet
