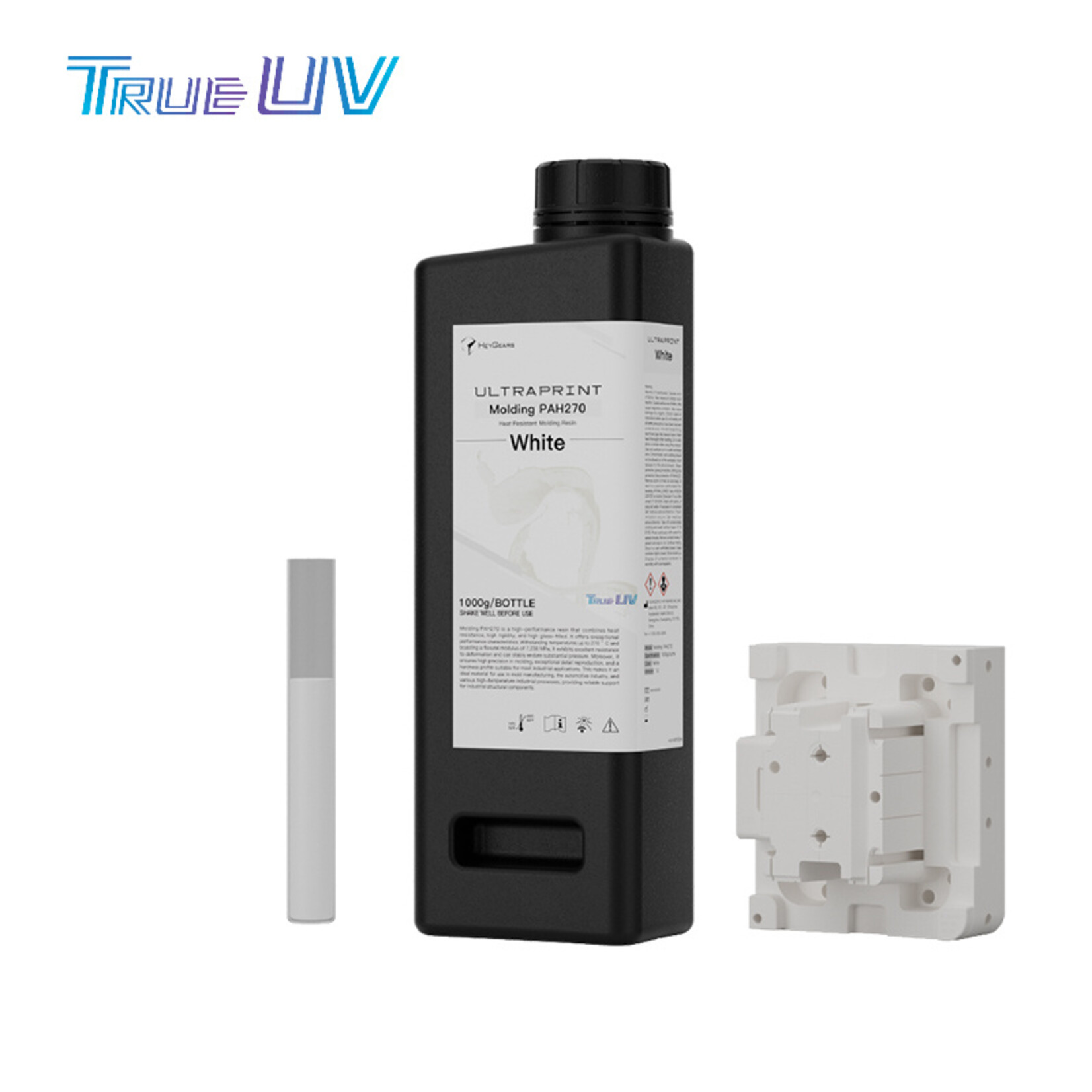

HeyGears UltraPrint Modeling Resin PAH270 - White

HeyGears UltraPrint Modeling Resin PAH270 high temp resin is a high-grade engineering 3D printing material formulated for extreme thermal resistance and high-stress industrial applications. With an ultra-high heat deflection temperature (HDT) reaching up to 270 °C, PAH270 enables engineers and manufacturers to produce rigid, ultra-heat-resistant components, functional prototypes, and moulding tools that maintain their structural integrity under continuous, intense heat.

Key features

• Ultra-high heat deflection (up to 270 °C HDT): offers exceptional thermal stability under severe heat loads, resisting deformation, softening, or thermal expansion.
• Superior structural rigidity: retains high flexural strength and mechanical stiffness even at elevated operating temperatures.
• Precision moulding capability: delivers precise dimensional accuracy and smooth surface finishes, making it ideal for high-temperature tooling and thermoforming applications.
• Resistant to harsh environments: maintains mechanical integrity during exposure to hot gas flow, liquid immersion testing, and intense thermal cycling.

Target applications

• Industrial tooling: short-run injection moulds, thermoforming tools, blow moulding inserts, and soldering fixtures.
• High-heat engineering: hot air manifolds, fluid testing manifolds, engine bay components, and environmental testing chambers.
• Electrical & thermal housings: heat-shielding covers, high-temperature sensor mounts, and electronic enclosures.

Printer compatibility

This 3D printing resin is only compatible with HeyGears printers with a 385 nm light engine:

• UltraCraft Reflex
• UltraCraft Reflex Turbo
• UltraCraft Reflex 2
• UltraCraft Reflex 2 Pro

Our Blueprint Studio software comes with pre-tuned materials for this resin, making your 3D printing process a breeze.

PAH270 is also compatible with open-material MSLA/LCD desktop 3D printers from other brands, if they operate at 385 nm UV light output.

Hardware requirements

To ensure proper release forces and optimal print reliability with PAH270 resin, the Pulsing Release Module is required.

Downloads

Safety data sheet
