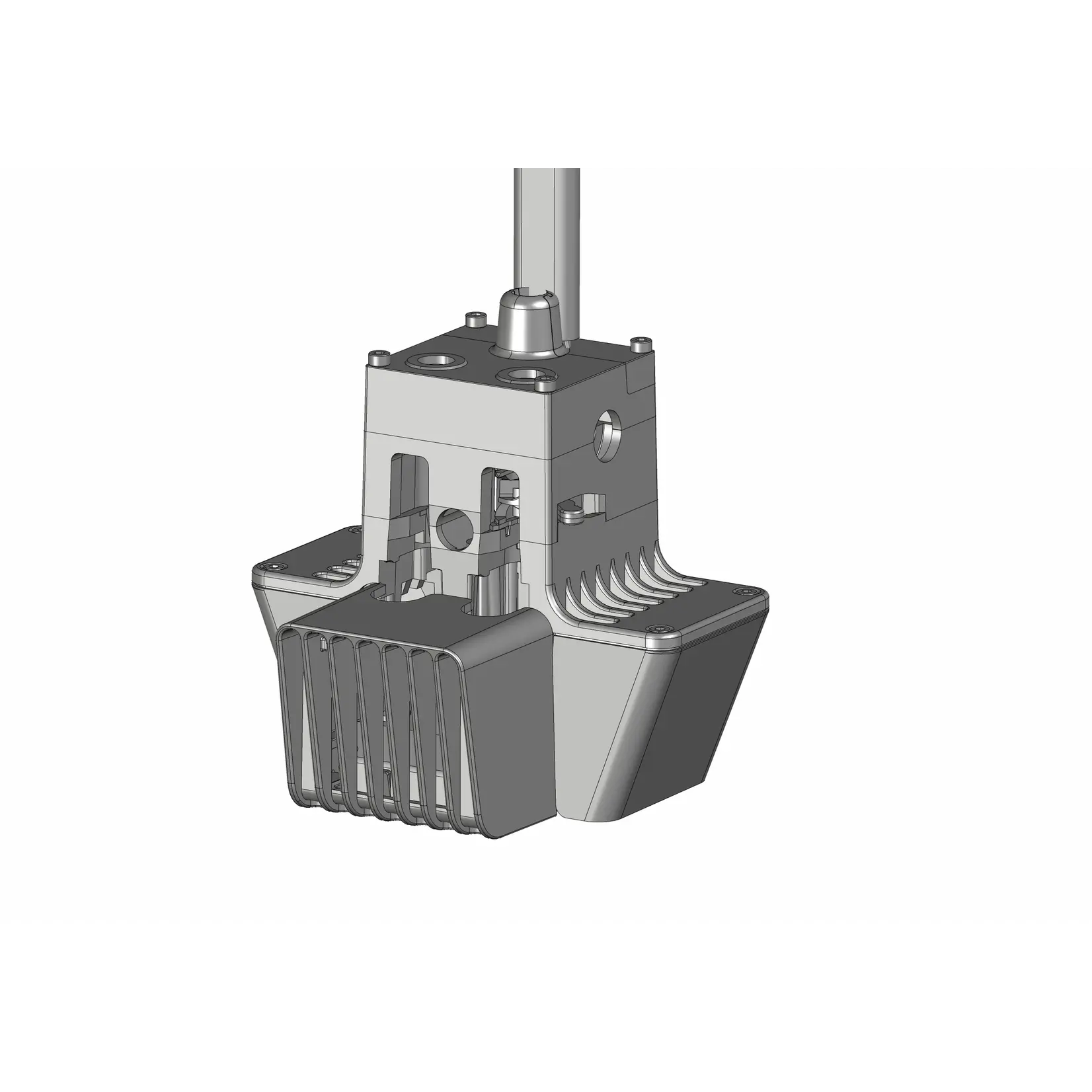

UltiMaker Print Head Assembly Capacitive (S3, S5) 225661

Complete capacitive print head assembly for UltiMaker S3 and S5

The capacitive print head assembly is the high-precision core of the UltiMaker S-series dual-extrusion system. This fully integrated unit is responsible for managing the thermal environment of the print cores, part cooling, and the critical "Active Levelling" process. It features a specialised capacitive sensor that allows the printer to measure the distance between the nozzles and the glass build plate at multiple points before every print. This data is used to compensate for any slight tilts or inaccuracies in the build surface, ensuring a perfect first layer and industrial-grade reliability.

Replacing the entire print head assembly is the most efficient way to resolve complex mechanical or electrical issues, such as damaged internal wiring, failing lift mechanisms, or compromised sensor signal integrity. By installing a factory-calibrated assembly, you restore the precise nozzle switching and high-accuracy probing that define the UltiMaker S3 and S5 professional workflow.

What is in the box?

• 1x Complete print head assembly: Including internal PCBs, cooling fans, capacitive sensor, and the dual-extrusion toggle mechanism.

Note: This assembly does not include print cores or Bowden tubes. These must be transferred from your existing head or purchased separately.

Compatibility:

This capacitive print head is designed for the following models:

• UltiMaker S5 (and S5 Pro Bundle)
• UltiMaker S3

Note: This is not compatible with the UltiMaker S7, which utilises an inductive sensor system.
