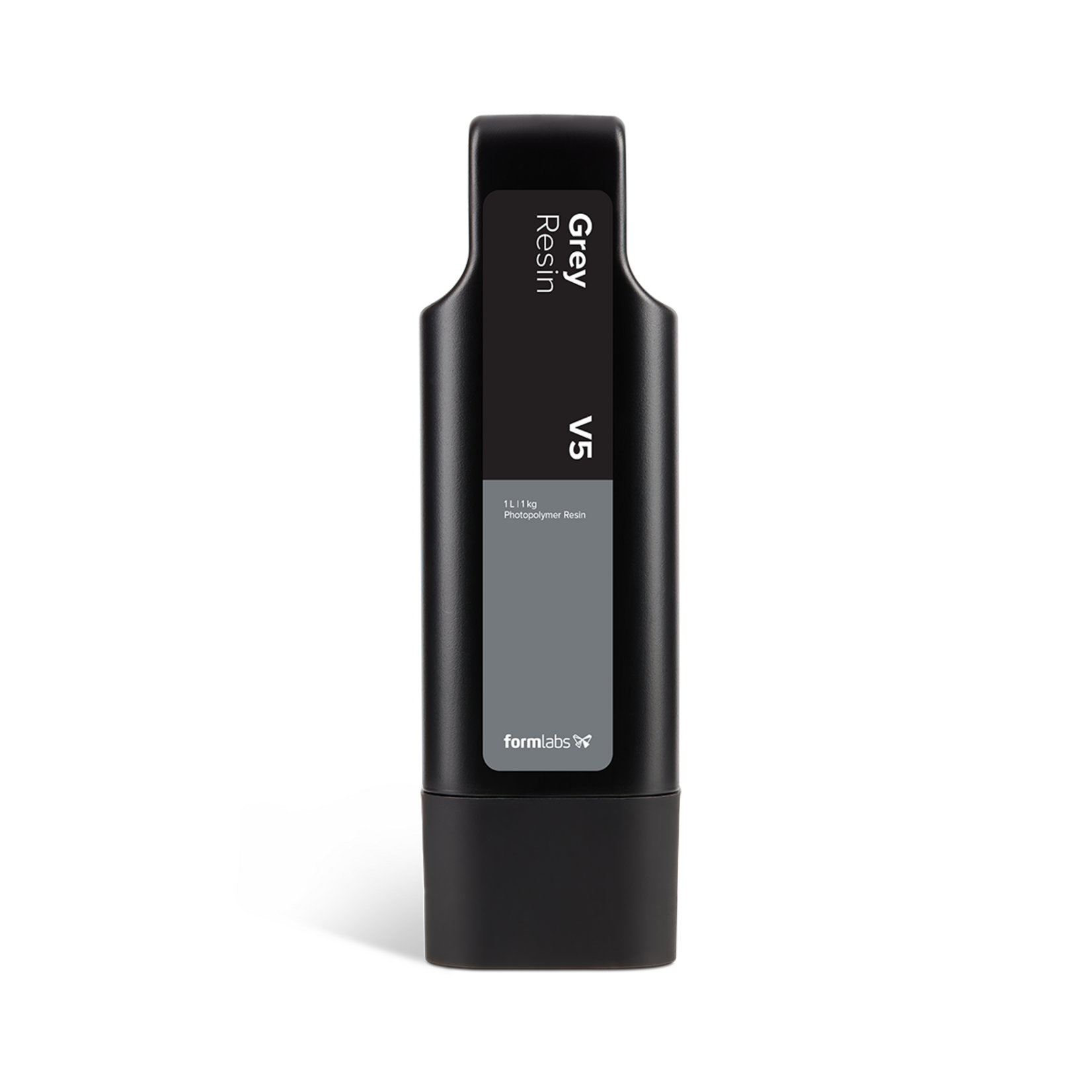

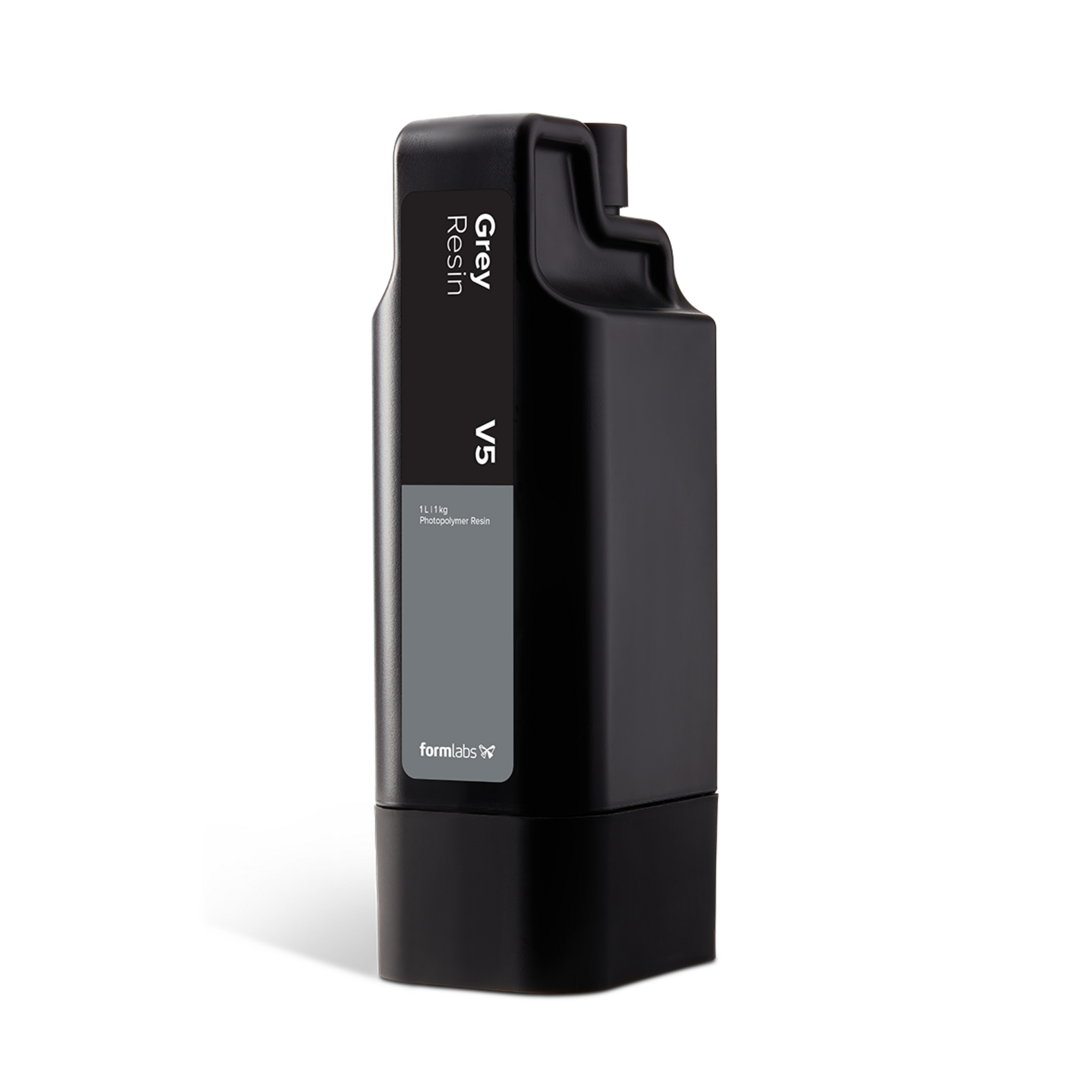

Formlabs Grey Resin V5 (Form 4) 1 L

Formlabs Grey Resin v5 (Form 4) 1 L

Grey Resin v5 is an exceptionally versatile general-purpose resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow.

Create parts that are stiff and strong with a surface finish that rivals injection moulding. Grey Resin has a rich, matte colour that captures fine features accurately.

Grey Resin v5 is a new material formulation that leverages the Form 4 series to print three times faster than the previous version, while offering significantly improved mechanical properties.

Why choose Grey Resin?

Grey Resin v5 is a versatile 3D printing material formulated to leverage the new Form 4 ecosystem, offering an optimal balance of performance and aesthetics.

• Highest dimensional accuracy: achieve precise tolerances with XY dimensional tolerances of ±0.15% (lower limit: ±0.02 mm).
• Superior aesthetics: rival the appearance of injection-moulded parts with rich, matte colour and crisp fine-feature performance.
• Versatile mechanical properties: create parts with the optimal balance of strength, toughness, and stiffness for a wide range of applications.
• Extremely low-odour printing: print with ultra-low volatile organic compounds (VOCs) for a pleasant and comfortable user experience.

Applications for Grey Resin:

Create dimensionally accurate parts that are stiff and strong with unmatched print reliability.

• Form and fit prototyping
• General dental models
• Enclosures and housings
• Jigs and fixtures

What is new with Grey Resin v5?

Compared to Grey Resin v4, Grey Resin v5 is:

• Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster.
• Tougher — 30% higher impact strength than Grey Resin v4.
• Darker and richer shade in colour.

Post-processing

Washing

The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.

Curing

Post-curing for general-purpose resins is optional. However, Formlabs recommends a short post-curing to reduce surface tack and improve mechanical properties.

Note: Only compatible with the Formlabs Form 4 series resin printer.

Technical data sheet (TDS) & safety data sheet (SDS)
