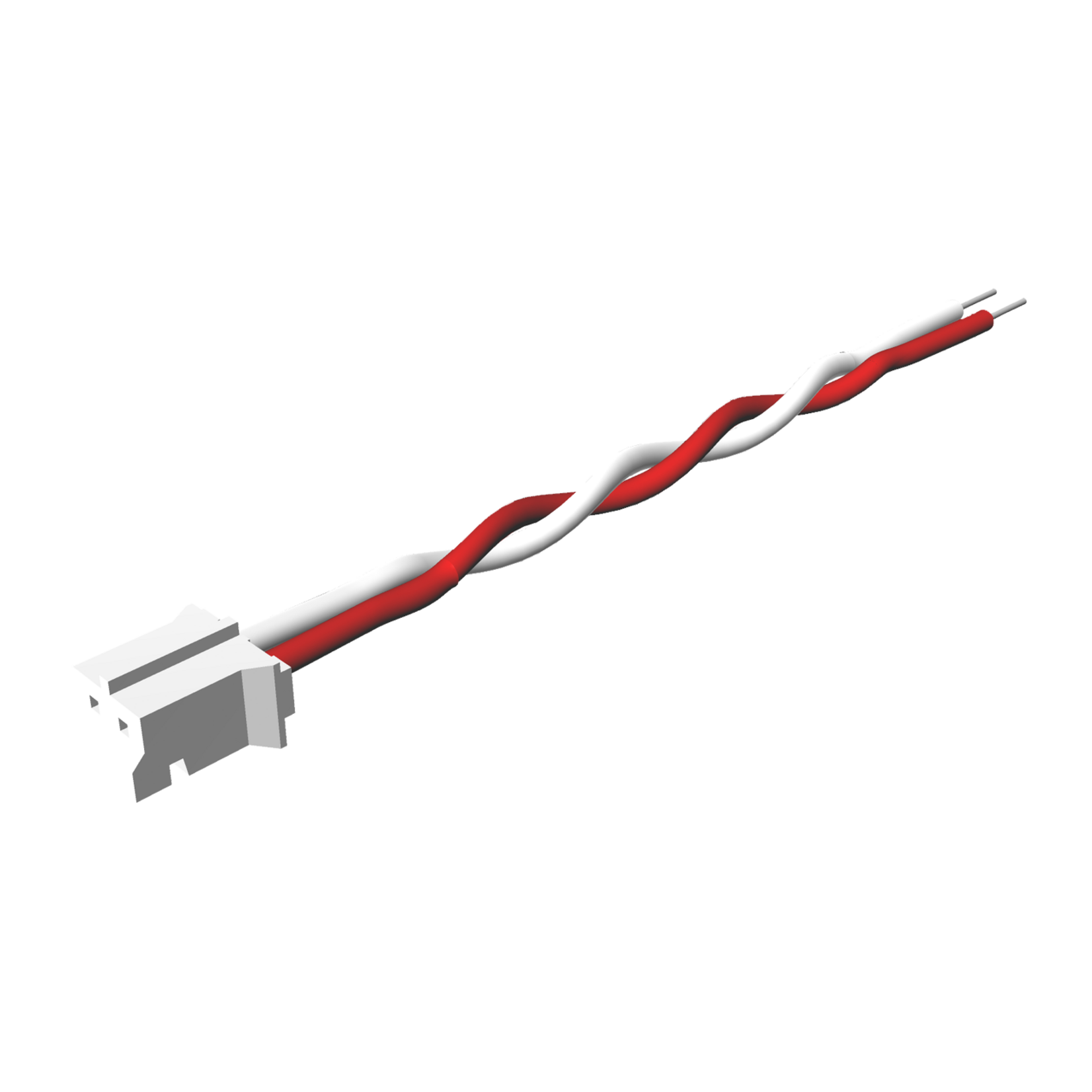

UltiMaker Capacitive Sensor Cable (UM3, S3, S5) 80-101400

Replacement capacitive sensor wire assembly for UltiMaker UM3 and S-series

The capacitive sensor cable is a precision-engineered wire assembly that facilitates the active levelling process on the UltiMaker 3, S3, and S5. This short, twisted-pair cable serves as the critical signal link between the capacitive sensor board and the main print head PCB. By transmitting the high-sensitivity data required to detect the build plate's position, this cable enables the printer to compensate for minute surface deviations, ensuring a perfect first layer and consistent part adhesion across the entire glass build plate.

Because the print head undergoes constant acceleration and thermal cycling, the delicate connections of the sensor cable can occasionally suffer from fatigue or signal interference. If your printer reports "Active levelling failed" or exhibits inconsistent nozzle height at the start of a print, the sensor cable may be damaged or poorly seated. Replacing this cable with the genuine 80-101400 assembly ensures a clean, interference-free signal path, which is vital for the accuracy of the capacitive sensing system.

What is in the kit?

• 1x Capacitive Sensor Cable Assembly: A pair of pre-terminated, twisted signal wires.
• Red wire: Specifically designated for the "SENSOR" terminal on the capacitive board.
• White wire: Specifically designated for the "SHIELD" terminal on the capacitive board.

Compatibility:

This cable is a dedicated spare part for printers using capacitive sensing technology:

• UltiMaker S5 (and S5 Pro Bundle)
• UltiMaker S3
• UltiMaker 3 / 3 Extended
