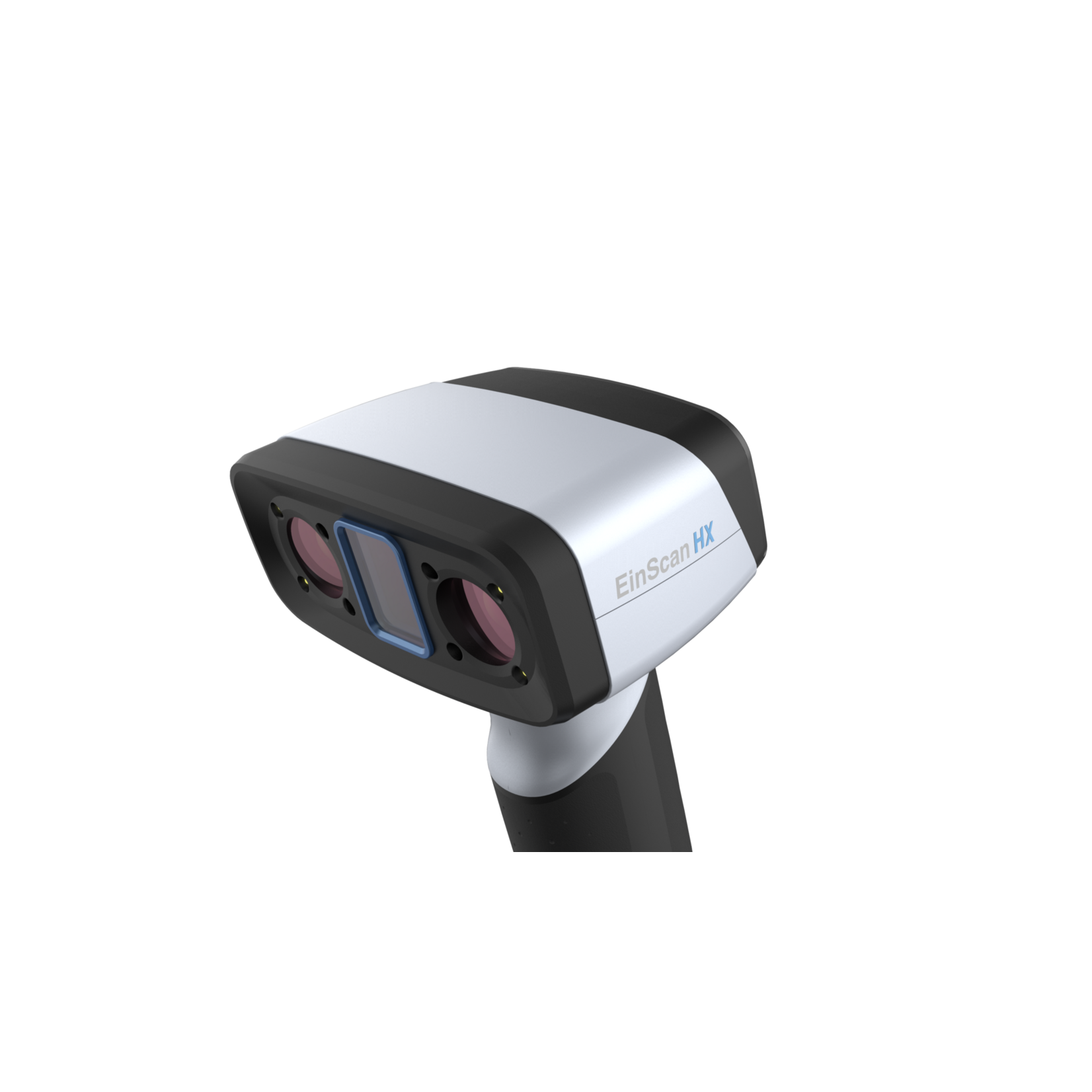

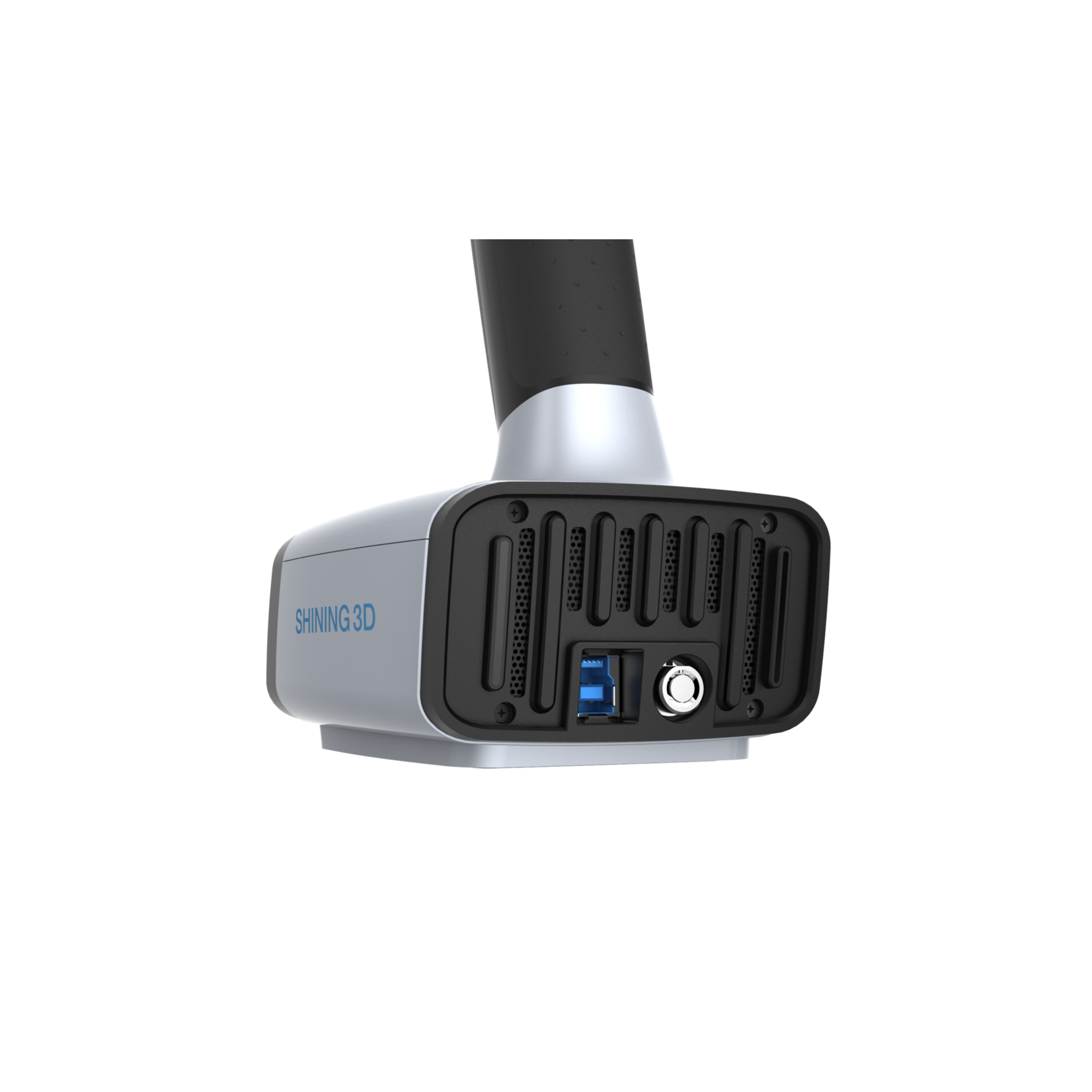

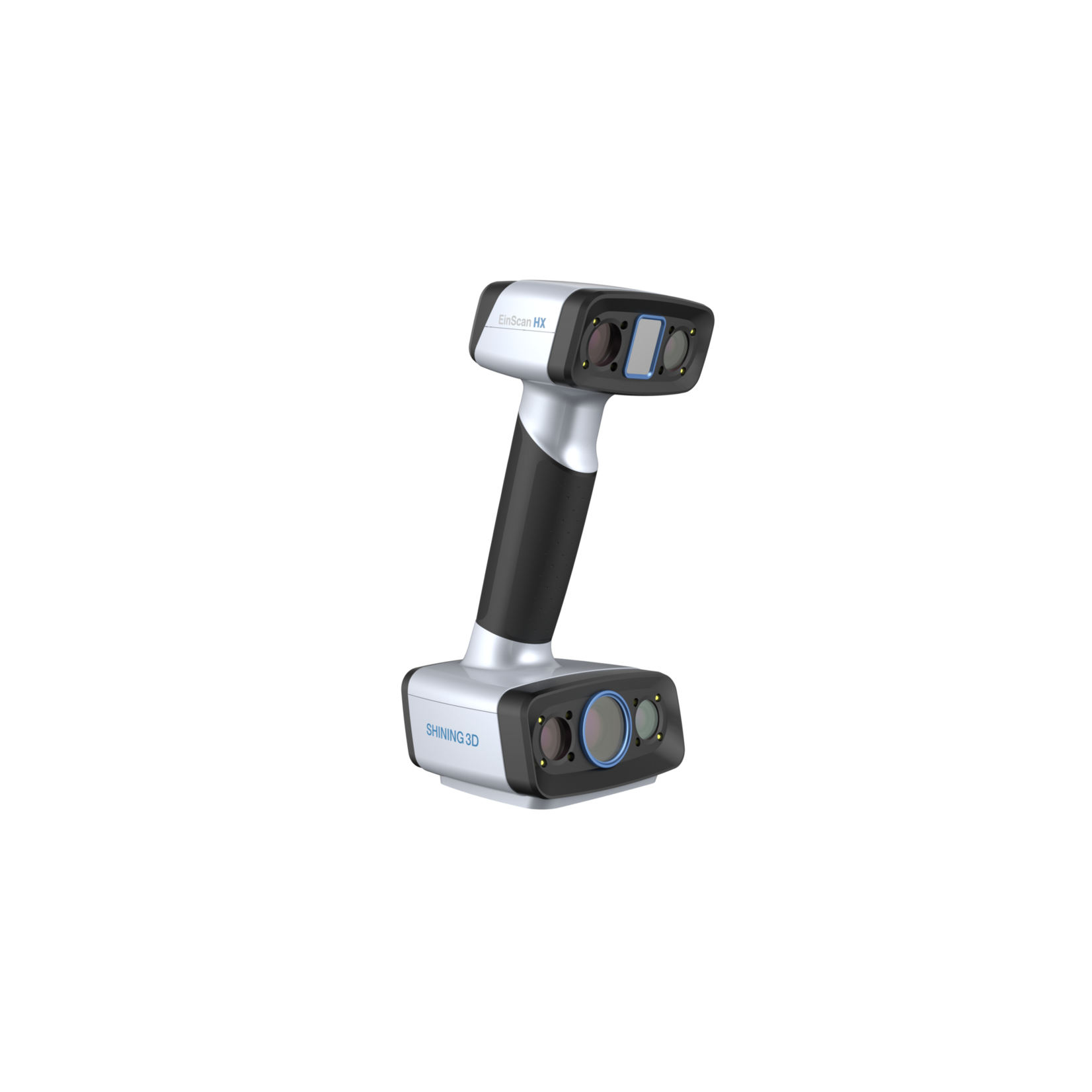

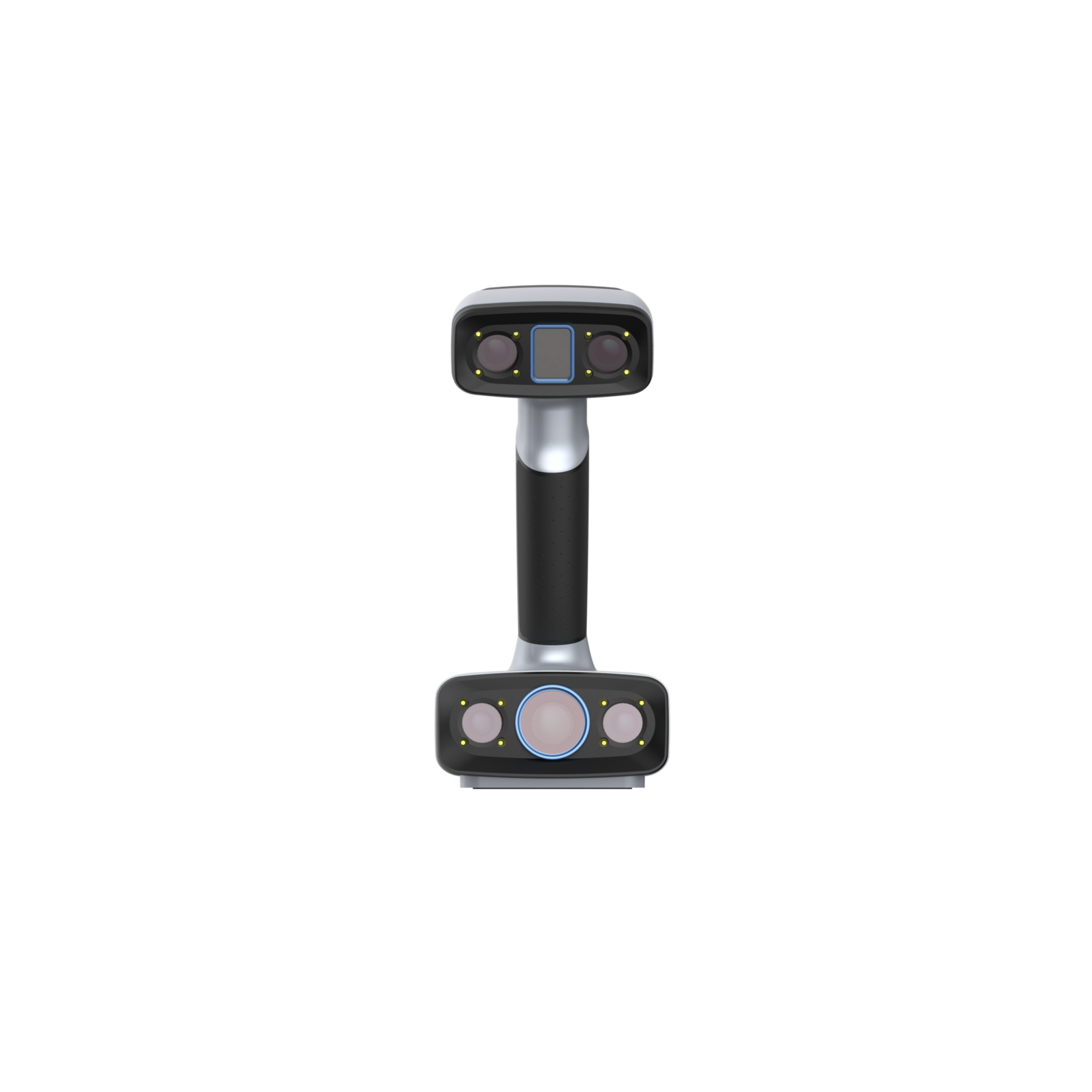

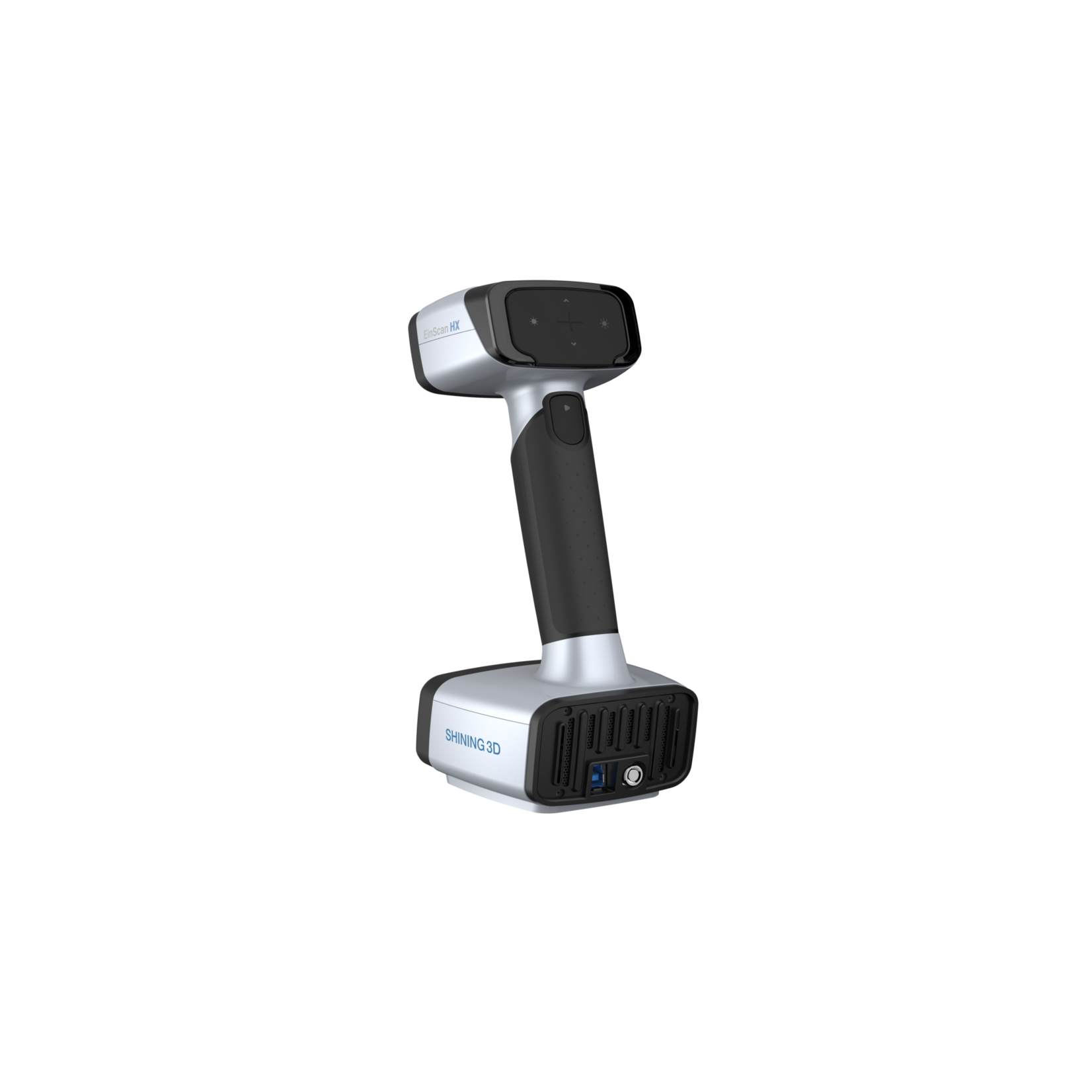

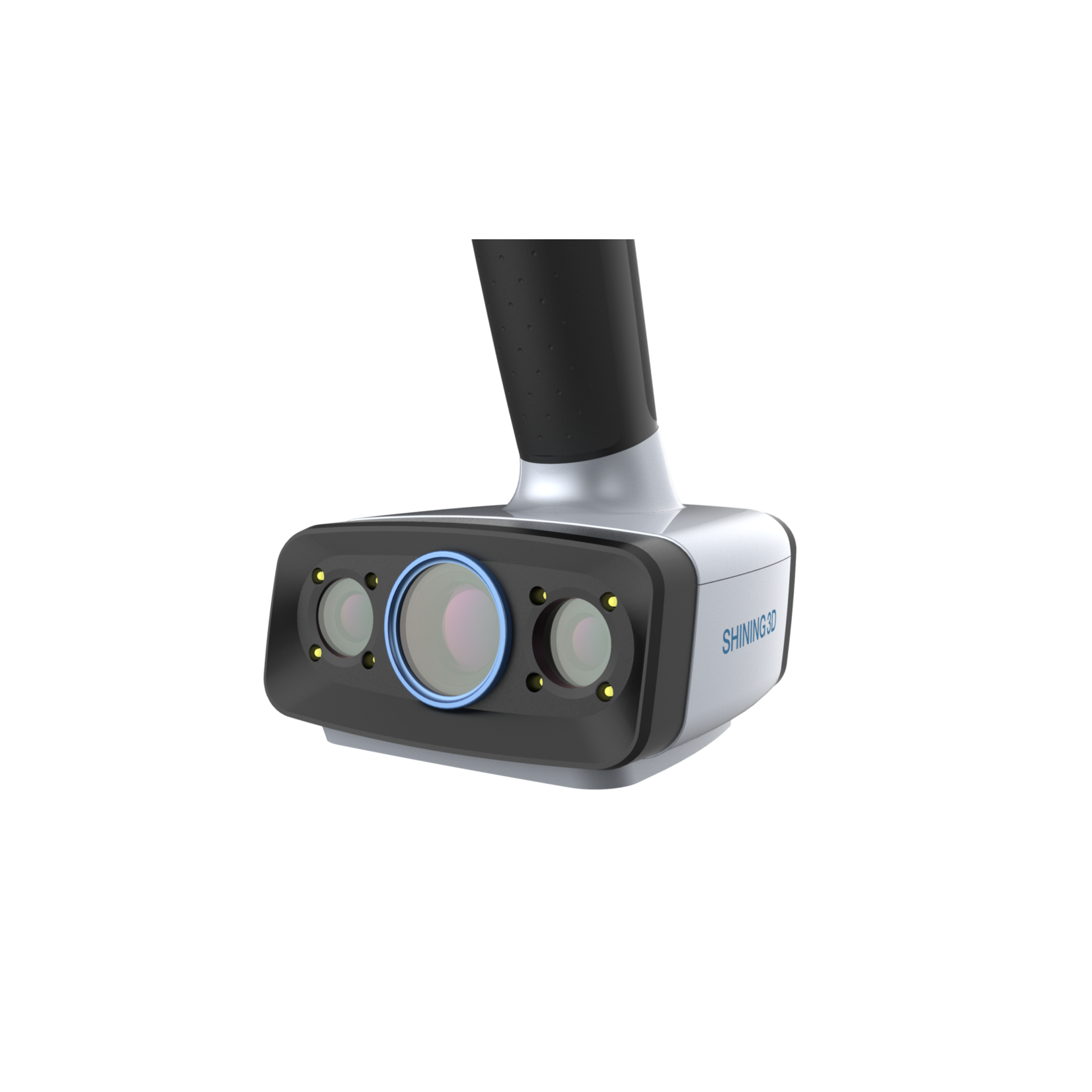

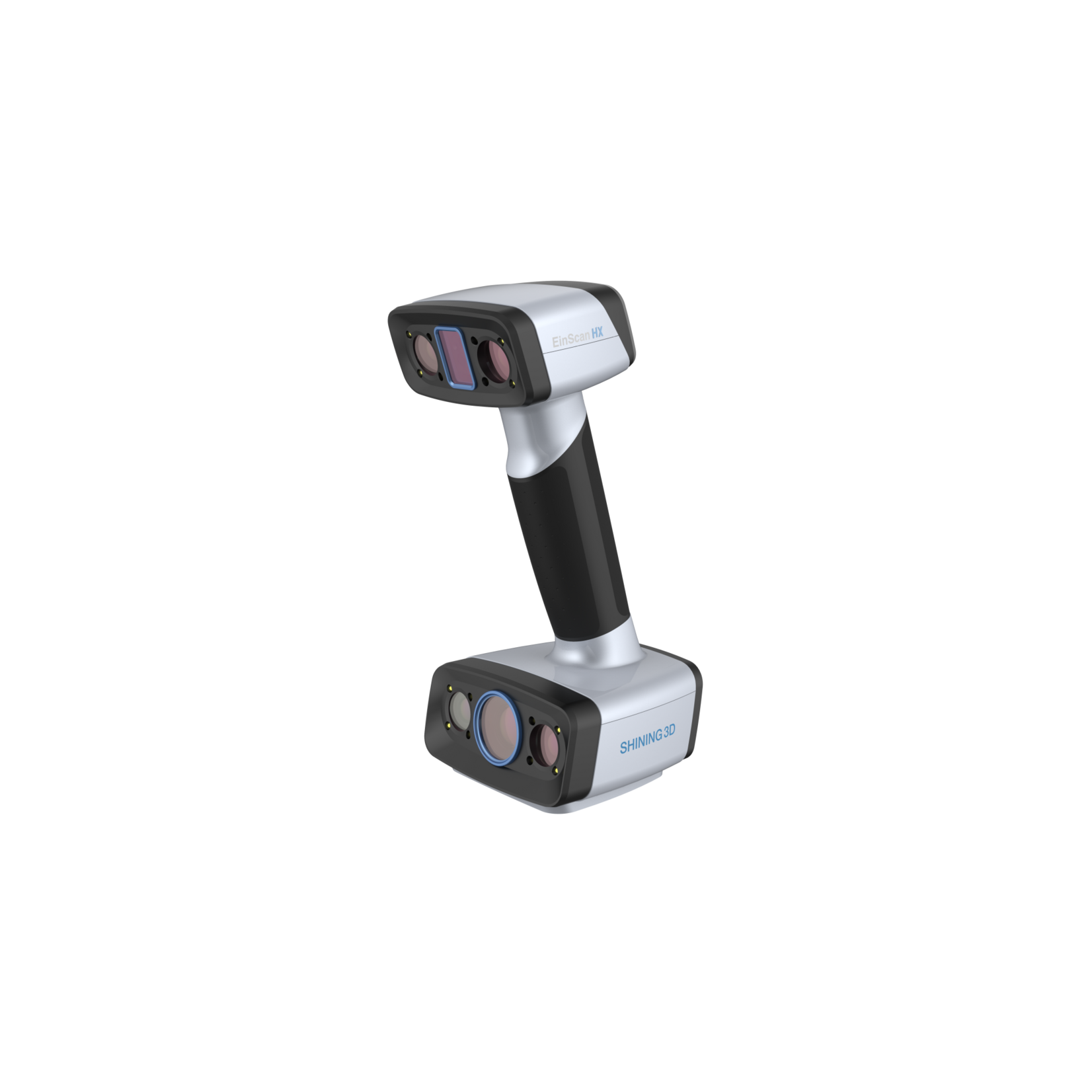

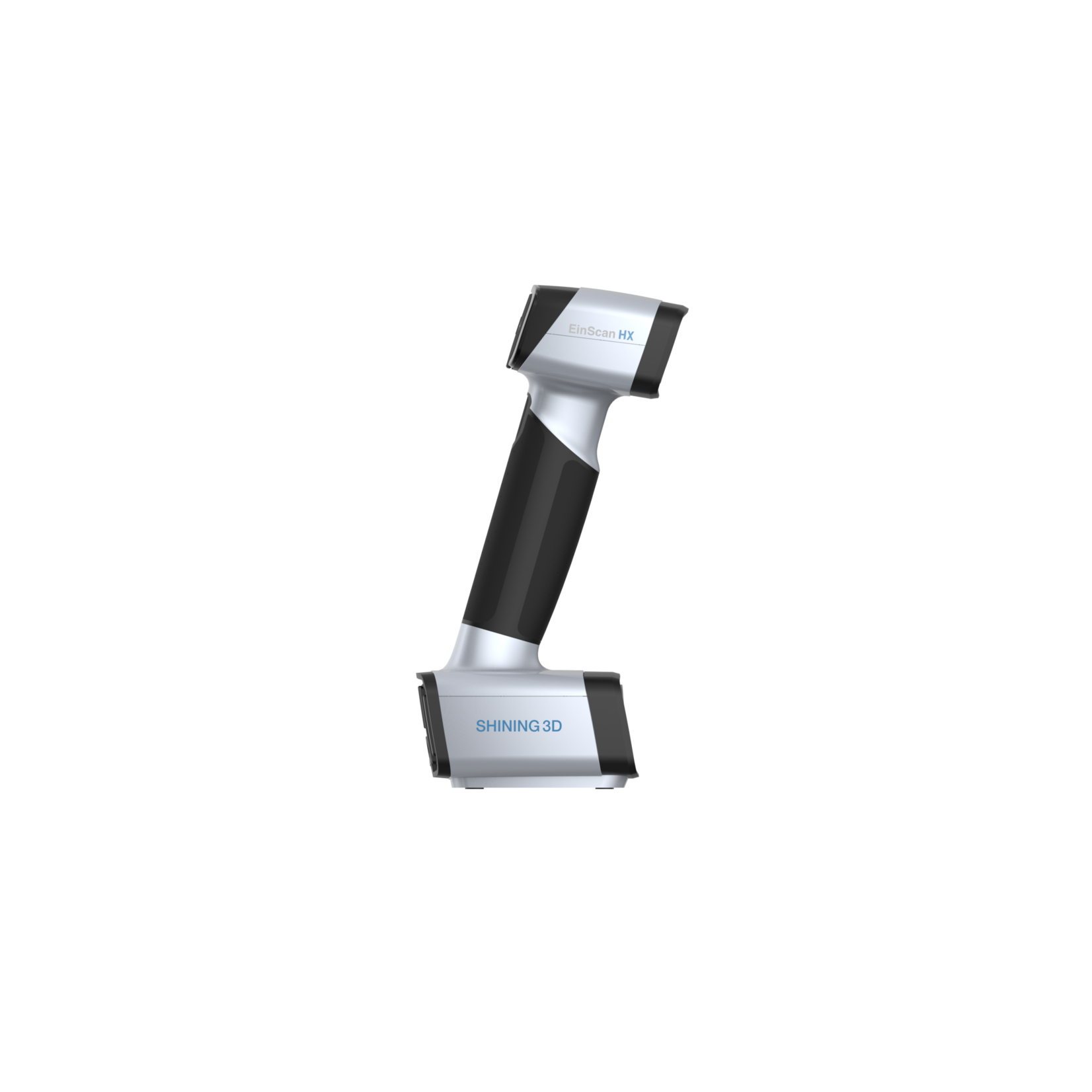

Shining 3D Einscan HX (Showroommodel)

Einscan HX (Showroom model)

Based on years of 3D measurement experience and market demand, SHINING 3D has innovatively integrated blue LED light and blue laser technology into the EinScan HX handheld 3D scanner. These hybrid laser and LED light sources make the EinScan HX compatible with a wider range of object sizes, meeting the diverse needs of users. High efficiency and reliable results provide the EinScan HX with an even broader range of application possibilities.

Hybrid blue laser & LED light

The innovative integration of dual blue LED light and blue laser improves material adaptability with fewer limitations for a wider range of applications. LED light scanning allows for rapid 3D scanning, while laser scanning—which is less sensitive to ambient light—delivers superior performance on reflective and dark-coloured surfaces.

Reliable results

High resolution and accuracy meet the requirements of most industrial applications for reverse engineering and measurement.

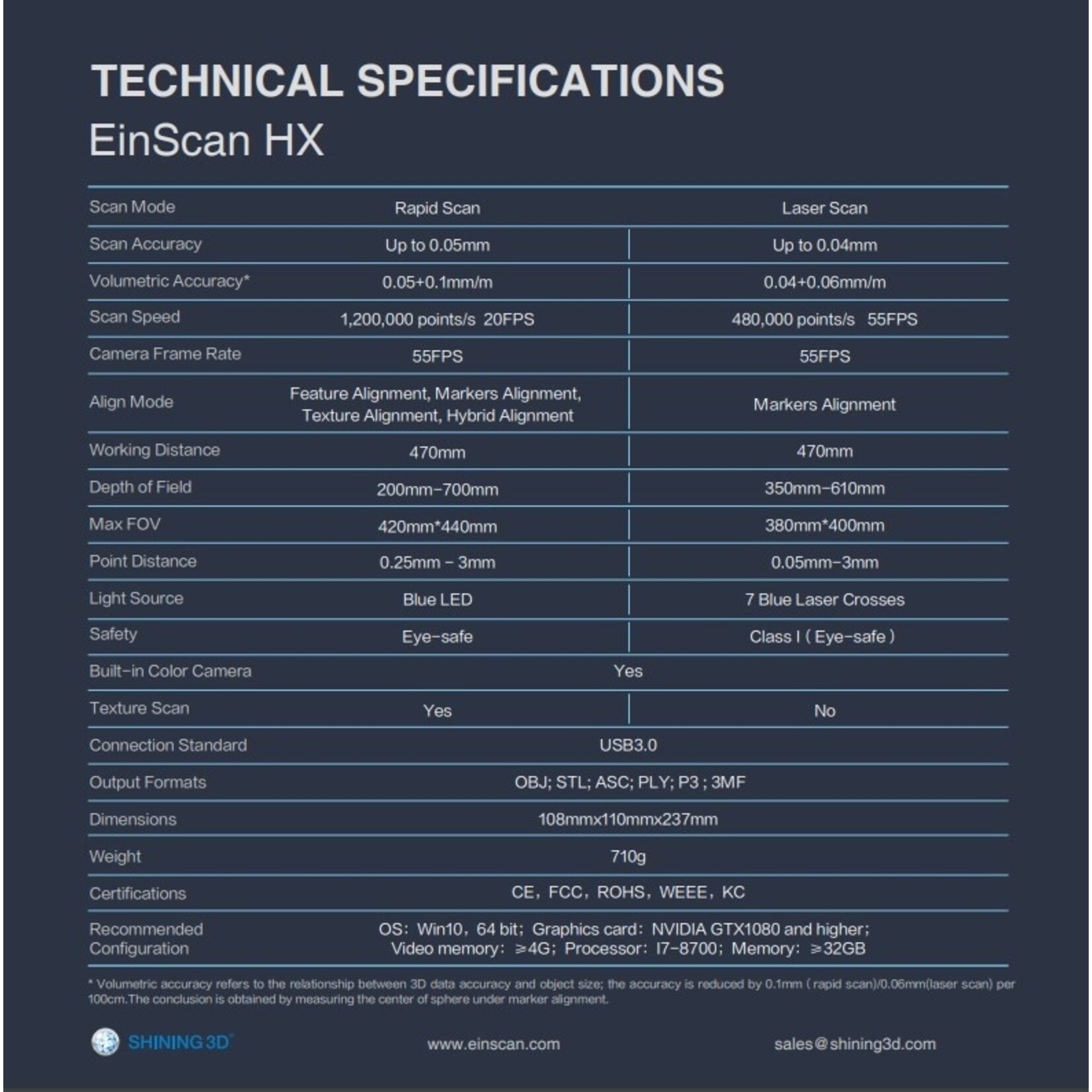

• Minimum point distance: 0.05 mm
• Accuracy: up to 0.04 mm in Laser Scan mode

High efficiency

The processing speed of the EinScan HX in Rapid Scan Mode is up to 1,200,000 points/s. Multiple blue laser lines in Laser Scan Mode allow for the scanning of most objects in minutes—perfect for reverse engineering, CAD/CAM, 3D printing, and more.

Portable & easy operation

The EinScan HX is plug-and-play with user-friendly software that is easy to operate, whether you are a novice or have professional experience in 3D scanning. The portability and flexible use of the EinScan HX have been achieved through an ergonomic design for a more efficient and comfortable scanning experience.

Full colour

With a built-in colour camera, the device supports full-colour texture capturing and tracking by texture.

Positive and negative points of the Einscan HX

• + Scan quality up to 0.04 mm accuracy
• + High speed
• + Combination of hybrid blue laser & LED light source
• + Professional device at an affordable price
• + Built-in colour scanning
• - No turntable included
• - Anti-reflective spray still required for shiny or glass surfaces

How do you choose the right scanner?

How do you choose the right 3D scanner for your needs? Is the lowest price always the best value? Is the most expensive model right for you? You want to be sure you choose correctly, so you should evaluate all product specifications and thoroughly compare the different models.

This guide is specifically designed to help you choose the device that perfectly meets your requirements. Covering all relevant aspects of accuracy, resolution, scanning speed, scan size, and light source, we hope this guide will be a reliable companion on your journey to finding the 3D scanner that meets your needs.

View the full manual here
